The diameter of the fixing holes is 9 mm.
Screw the rear wall of the frequency inverter heat
sink to the mounting plate.

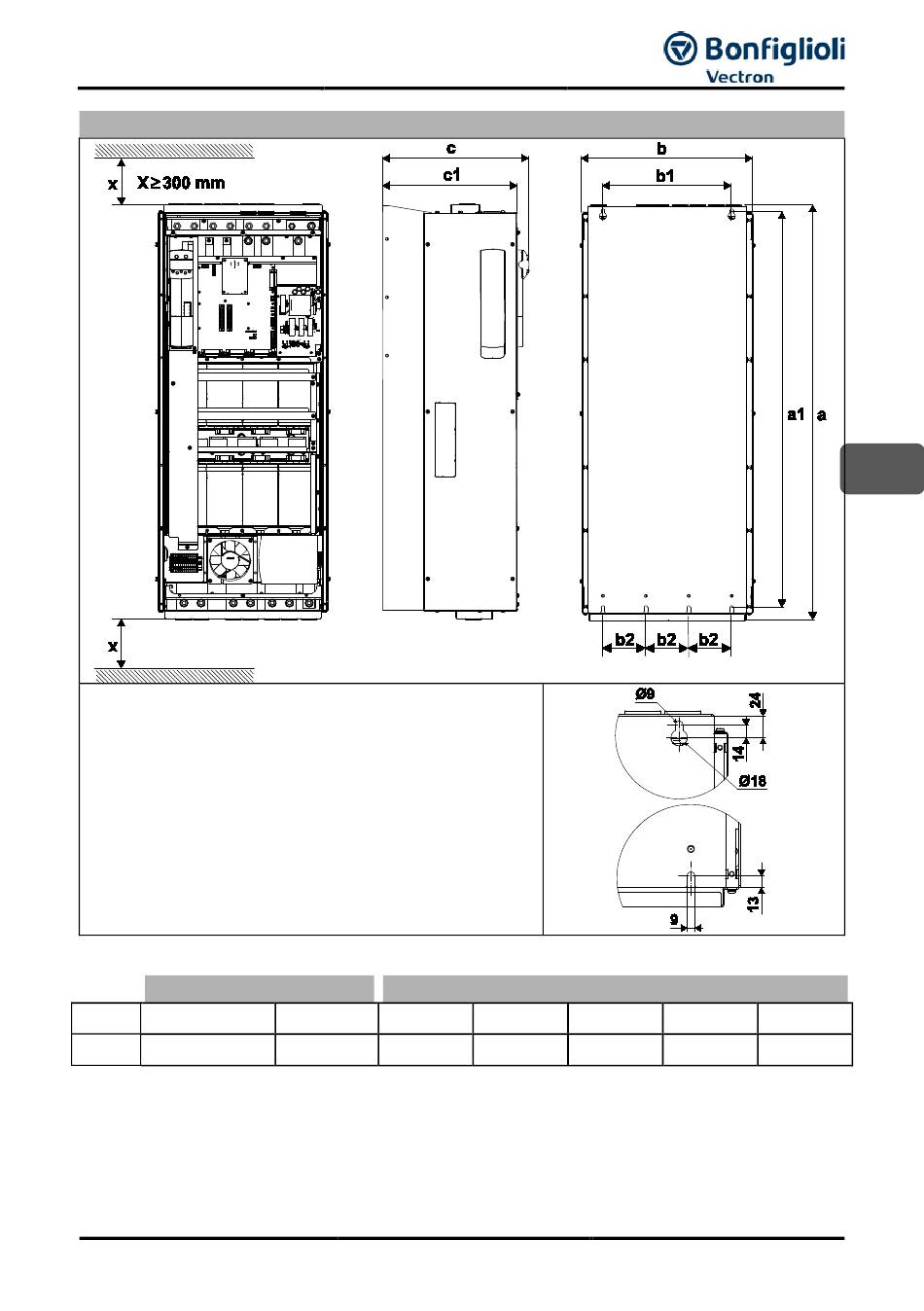

Dimensions without optional components [mm]:
Dimensions
Size a
8 1067
07/20
Size 8
b c
439 375
Quick Start Guide ANG
Assembly dimensions
a1 b1
1017 330
GB
b2 c1
110 345
