15. Accessories

15.1 Protective housing

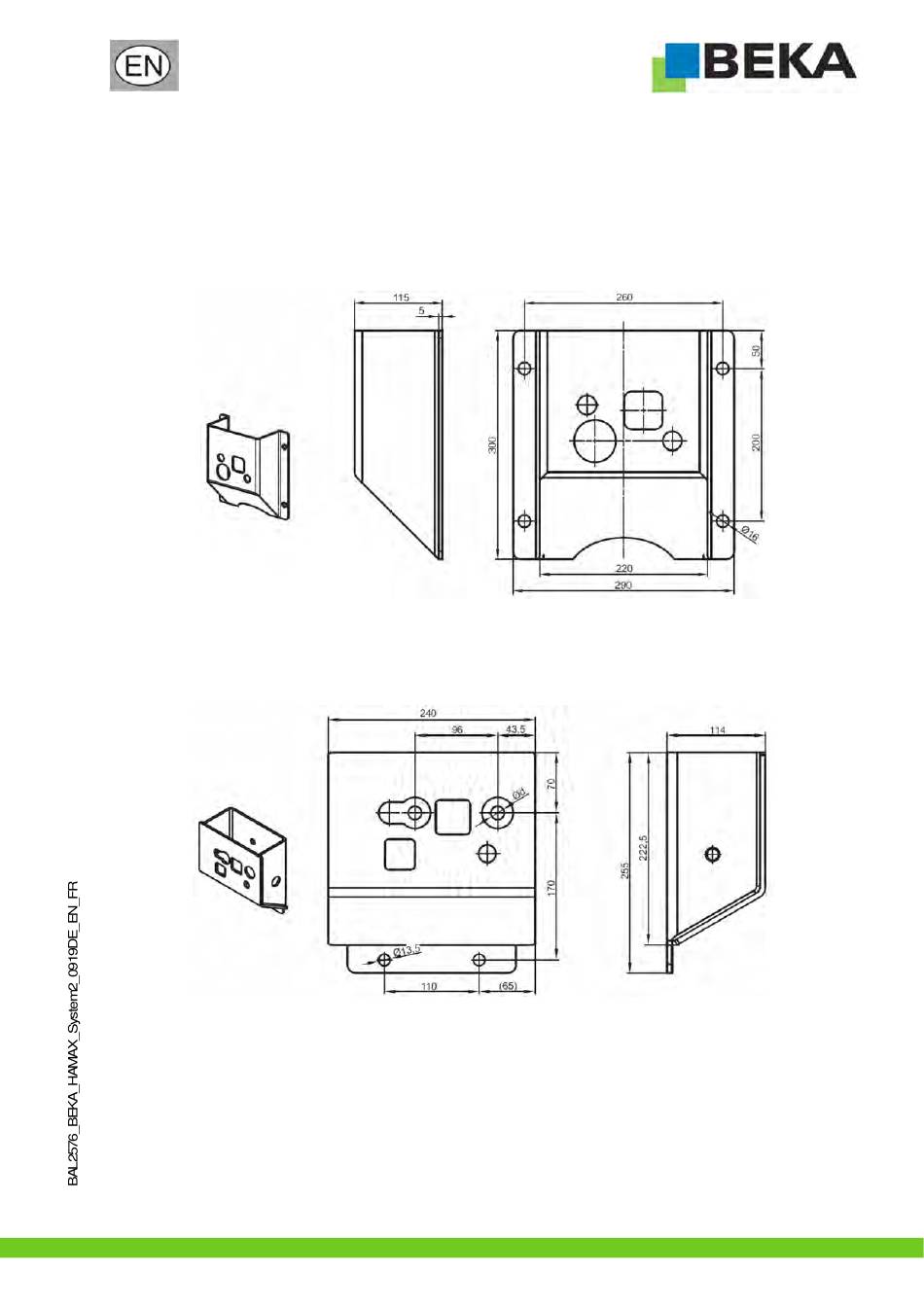

Protective housings can be used to protect the device. Those are available in different versions (fig. 16 + 17). The integrated bores
enable the filling of the device via zerks and the control of the inspection windows. The adjusting throttle can also still be reached to
regulate the flow rate.
Fig. 16:
(only for version M14)
Protective housing incl. fastening material:
Protective housing without fastening material:
Fig. 17:
(for version M14 and M16)
Protective housing without fastening material:
Protective housing without fastening material:
Fastening material: Hexagon bolt M12x20
Washer B13
Spring lock washer A12
Article no.:
10104301
10104212
Article no.:
10102722 ød=15,5 (version M14)
0800802261 ød= 17 (version M16)
10124601
10100959
10134844
