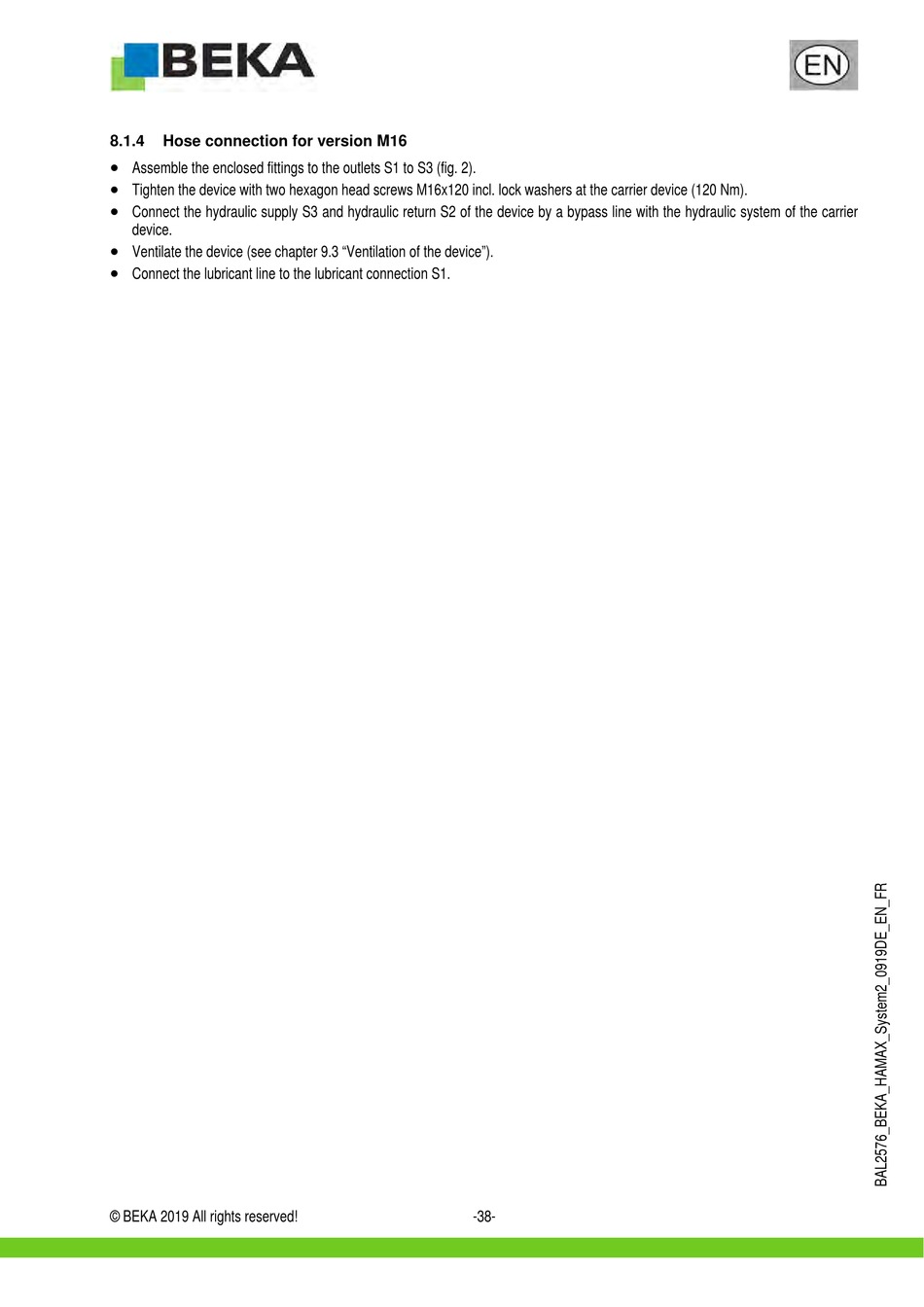

8.1.4

Hose connection for version M16


Assemble the enclosed fittings to the outlets S1 to S3 (fig. 2).

Tighten the device with two hexagon head screws M16x120 incl. lock washers at the carrier device (120 Nm).

Connect the hydraulic supply S3 and hydraulic return S2 of the device by a bypass line with the hydraulic system of the carrier
device.

Ventilate the device (see chapter 9.3 "Ventilation of the device").

Connect the lubricant line to the lubricant connection S1.
