Installation instructions, only for experts

10. Circuit connector diagrams

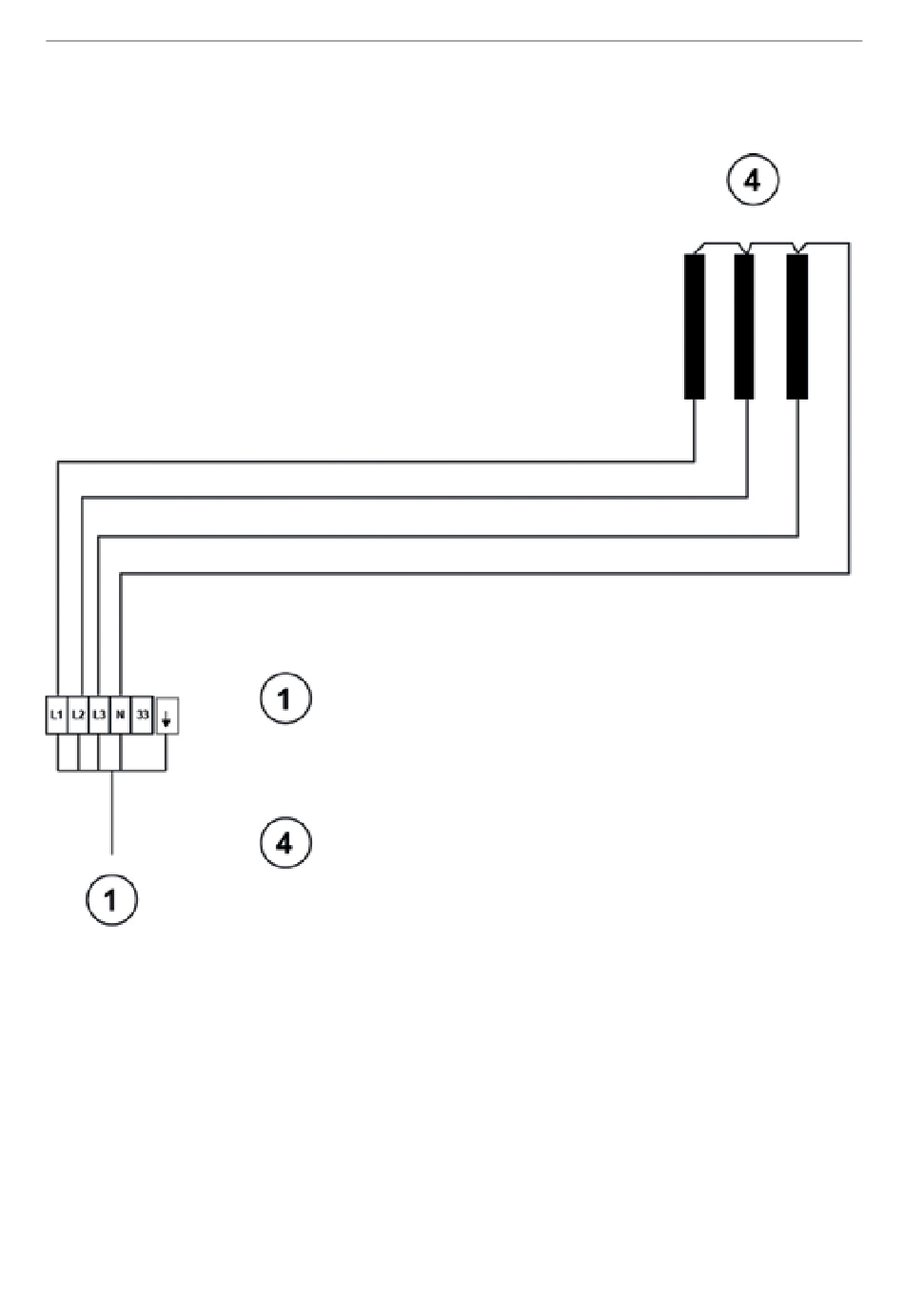

Abb.1 Circuit connector diagram Monolith 6,9 and 9 kW
WORLD OF WELLNESS
= Power input
5*1,5mm² - 5*2,5mm²
Depending on the model
= Resistors
Monolith 6,9 kW heater 3*2300W
Monolith 9 kW heater 3*3000W
p. 12/22
3*230 V, N, PE
