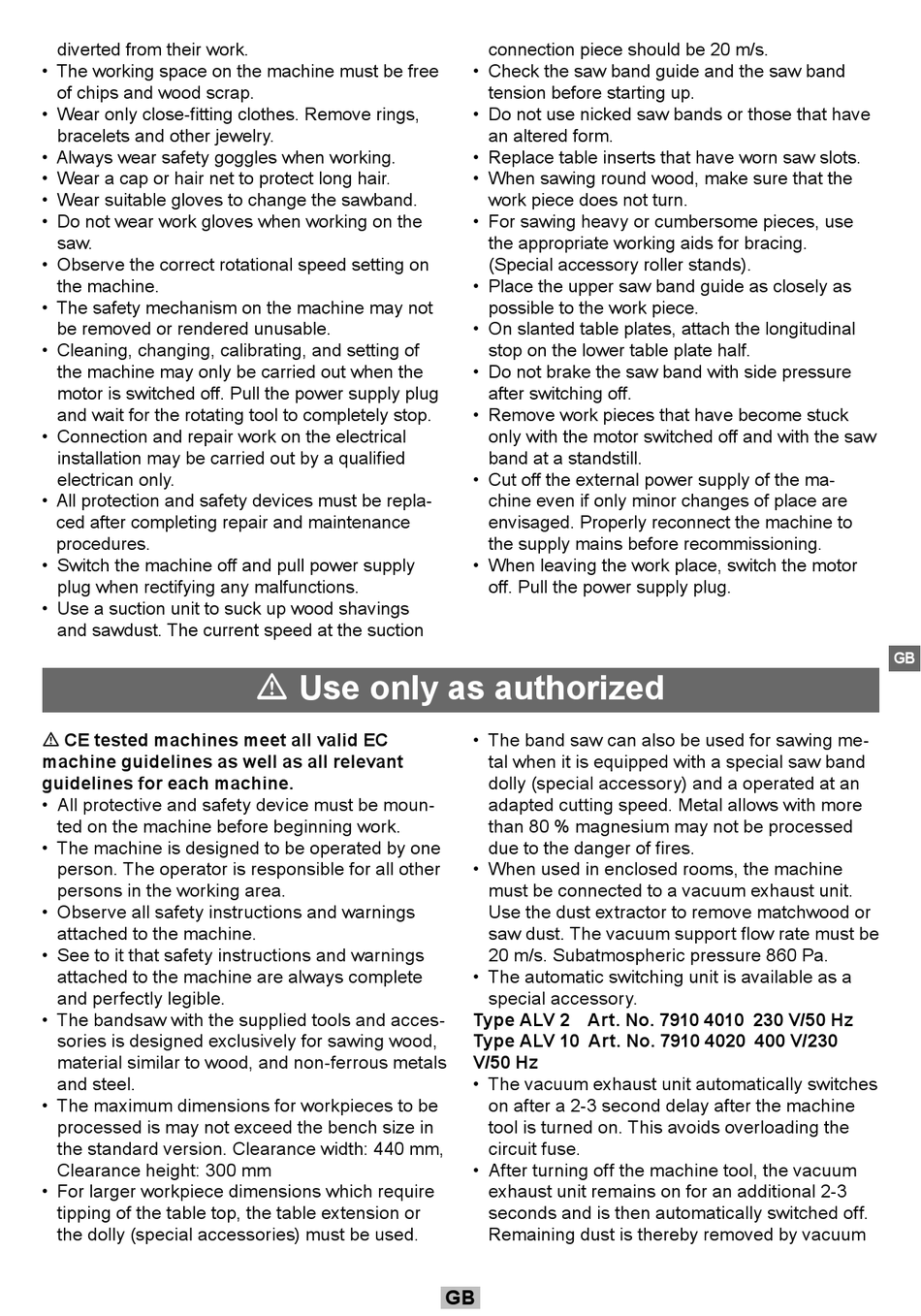

Use Only As Authorized - Scheppach Basa 5.0 Originalanleitung

diverted from their work.
• The working space on the machine must be free
of chips and wood scrap.
• Wear only close-fitting clothes. Remove rings,
bracelets and other jewelry.
• Always wear safety goggles when working.
• Wear a cap or hair net to protect long hair.
• Wear suitable gloves to change the sawband.
• Do not wear work gloves when working on the
saw.
• Observe the correct rotational speed setting on
the machine.
• The safety mechanism on the machine may not
be removed or rendered unusable.
• Cleaning, changing, calibrating, and setting of
the machine may only be carried out when the
motor is switched off. Pull the power supply plug
and wait for the rotating tool to completely stop.
• Connection and repair work on the electrical
installation may be carried out by a qualified
electrican only.
• All protection and safety devices must be repla-
ced after completing repair and maintenance
procedures.
• Switch the machine off and pull power supply
plug when rectifying any malfunctions.
• Use a suction unit to suck up wood shavings
and sawdust. The current speed at the suction
 CE tested machines meet all valid EC
machine guidelines as well as all relevant
guidelines for each machine.
• All protective and safety device must be moun-
ted on the machine before beginning work.
• The machine is designed to be operated by one
person. The operator is responsible for all other
persons in the working area.
• Observe all safety instructions and warnings
attached to the machine.
• See to it that safety instructions and warnings
attached to the machine are always complete
and perfectly legible.
• The bandsaw with the supplied tools and acces-
sories is designed exclusively for sawing wood,
material similar to wood, and non- ferrous metals
and steel.
• The maximum dimensions for workpieces to be
processed is may not exceed the bench size in
the standard version. Clearance width: 440 mm,
Clearance height: 300 mm
• For larger workpiece dimensions which require
tipping of the table top, the table extension or
the dolly (special accessories) must be used.

 Use only as authorized

connection piece should be 20 m/s.
• Check the saw band guide and the saw band
tension before starting up.
• Do not use nicked saw bands or those that have
an altered form.
• Replace table inserts that have worn saw slots.
• When sawing round wood, make sure that the
work piece does not turn.
• For sawing heavy or cumbersome pieces, use
the appropriate working aids for bracing.
(Special accessory roller stands).
• Place the upper saw band guide as closely as
possible to the work piece.
• On slanted table plates, attach the longitudinal
stop on the lower table plate half.
• Do not brake the saw band with side pressure
after switching off.
• Remove work pieces that have become stuck
only with the motor switched off and with the saw
band at a standstill.
• Cut off the external power supply of the ma-
chine even if only minor changes of place are
envisaged. Properly reconnect the machine to
the supply mains before recommissioning.
• When leaving the work place, switch the motor
off. Pull the power supply plug.
• The band saw can also be used for sawing me-
tal when it is equipped with a special saw band
dolly (special accessory) and a operated at an
adapted cutting speed. Metal allows with more
than 80 % magnesium may not be processed
due to the danger of fires.
• When used in enclosed rooms, the machine
must be connected to a vacuum exhaust unit.
Use the dust extractor to remove matchwood or
saw dust. The vacuum support flow rate must be
20 m/s. Subatmospheric pressure 860 Pa.
• The automatic switching unit is available as a
special accessory.
Type ALV 2 Art. No. 7910 4010 230 V/50 Hz
Type ALV 10 Art. No. 7910 4020 400 V/230
V/50 Hz
• The vacuum exhaust unit automatically switches
on after a 2-3 second delay after the machine
tool is turned on. This avoids overloading the
circuit fuse.
• After turning off the machine tool, the vacuum
exhaust unit remains on for an additional 2-3
seconds and is then automatically switched off.
Remaining dust is thereby removed by vacuum
