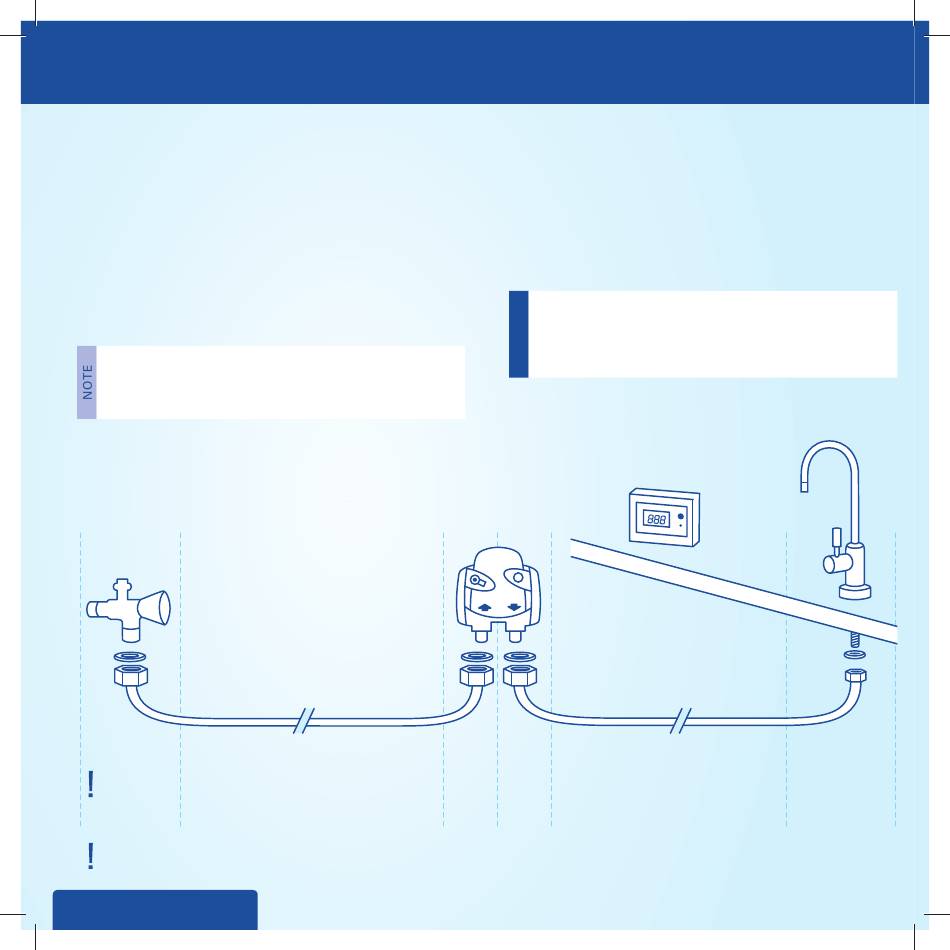

Please follow the diagram below (see fi g. 6) and perform the steps
in the right order.
A a) Turn off the cold water supply
b) Put the hose (1) in place
c) Insert the medium-sized (3/8") gaskets into the respective
female threads of the two hose ends.
d) Now connect one end of the hose (1) to the fi lter head inlet.
This is labelled "IN" (inlet) and marked with an arrow. Make
sure the gasket is seated correctly!
B a) Now connect the other end of the hose (1) to your free cold
water supply and ensure that the gasket is correctly posi-
tioned!
If your cold water supply does not fi t the 3/8" connector on
the hose (1), use the supplied adapter if required. Your On
Line Active Plus Kit comes with a 1/2" adapter. Please go to
your nearest supplier for adapters in other sizes.
(fi g. 6)
Cold water
supply
3/8"
or Adapter
A
Before installation, please check you have an additional 3/8" or 1/2" cold water supply.
Consult a specialist dealer if necessary.
8
ENGLISH
Hose 1: 3/8"
800 mm
C a) Put the hose (2) in place.
b) Insert the small gasket (7/16") in the end of the hose (2).
c) Screw this end onto the installed BRITA water dispenser (see
Step 3.3).
Remember to fi rst insert the gasket, as in Step A c).
D a) Connect the bigger end of the hose (2) to the outlet on the
fi lter head, labelled with the "OUT" arrow.
b) Remember to fi rst insert the gasket, as in Step A c).
The max. tightening torque for the G3/8" connections
may not exceed 14 Nm! Only hose connections with
!
gaskets (5) may be used, because hoses with conical screw
connections damage the connections of the fi lter head and
invalidate any warranty claims!
3/8"
800 mm
B C
Hose 2:
D
