Variant B:
The central telematics unit is connected to a ContiPressureCheck
system, which was installed without a display.
Sub-Harness N
(17341950000)
3

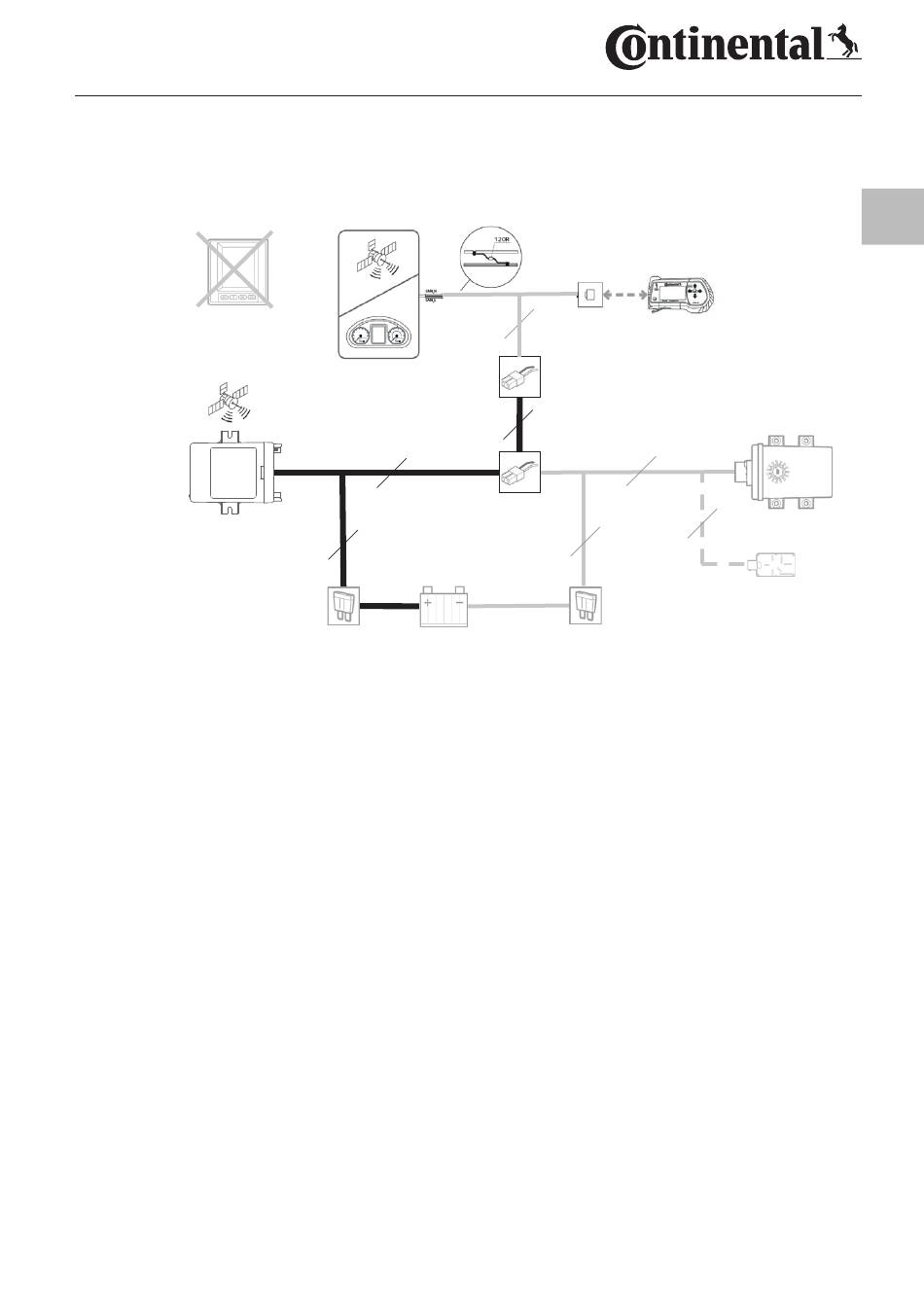

Fig. 2: Variant B
In this case, the wiring harness L for connecting the hand-held tool
to the system is required for connection in addition to the wiring
harness N contained in this kit.
‹ Attach the diagnostic plug of the wiring harness L in such a way
that it is easily accessible for subsequent configuration of the
ContiPressureCheck system.
Connect the wiring harnesses N and L as shown in "Fig. 2:
‹
Variant B"
4. Connect the power supply to the vehicle electronics using the
three cable shoes (ring-shaped) in accordance with the following
color codes:
●
Terminal 31 (mass) - black
●
Terminal 15 (switched plus) - red
●
Terminal 30 (permanently plus) - violet
2
Sub-Harness L
(17340690000)
2
2
4
Sub-Harness C
(17340060000)
3
Sub-Harness D
2
(17340090000/
Sub-Harness A
17340670000)
(17340080000)
