SYMBOLS AND UNITS USED

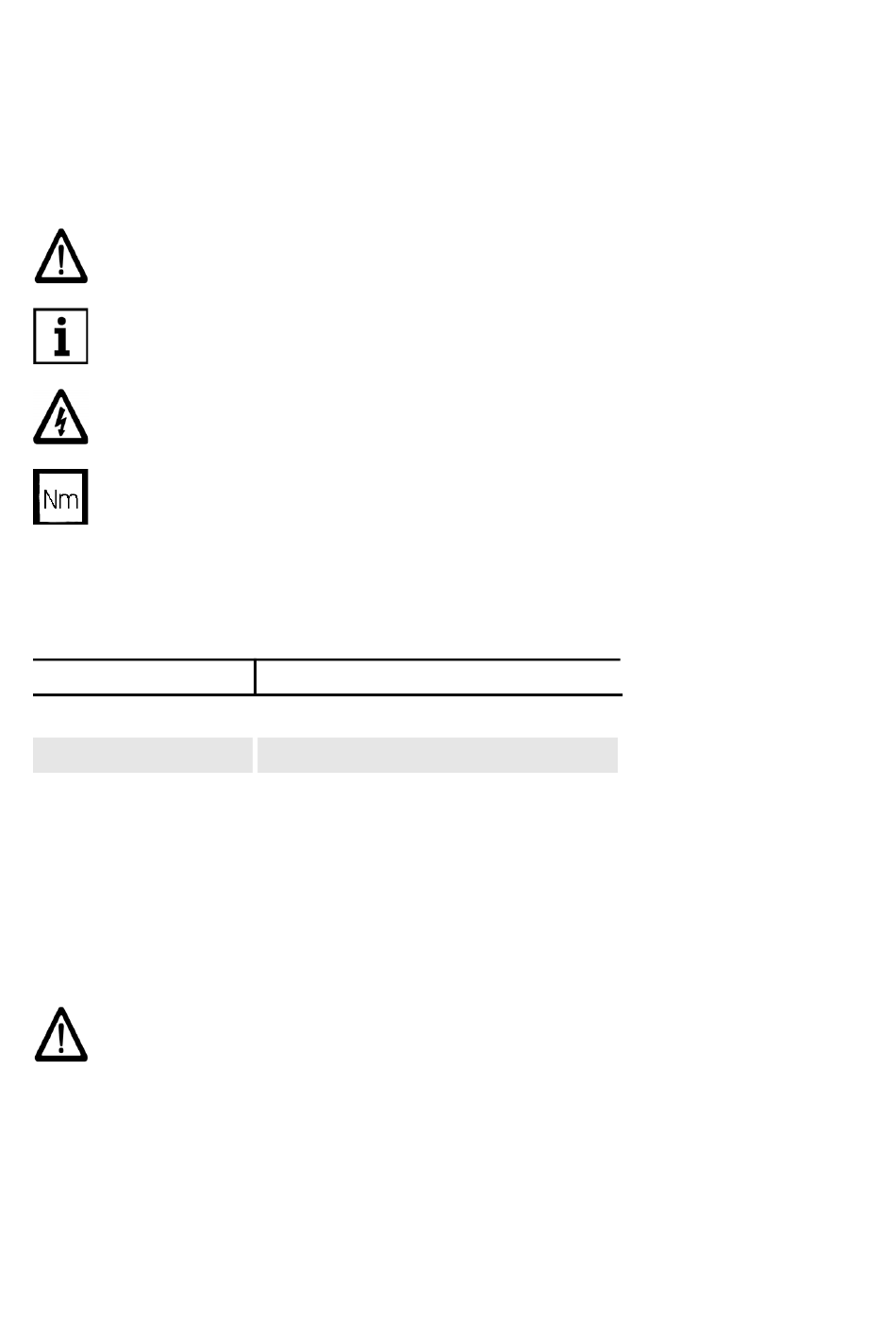

The safety instructions contained in these operating instructions are labelled with the following symbols:
Attention!
This symbol refers to a point which must be observed to ensure reliable operation and safety.
Note!
This symbol highlights user tips and other useful information.
Warning!
This symbol flags up an electrical voltage warning.
Unit:
This symbol indicates torques specified by the manufacturer.
The following units and terms which do not form part of the SI (Système International d'Unités) system are
used:
Unit
bar
¾"
3

GENERAL

3.1

APPLICATION

The heating circuit refill unit is suitable for use in heating circuits up to a maxi-
mum water temperature of 90 °C.
According to DIN EN 1717, only permanent connections are permitted for filling heating systems with
drinking water.
The heating circuit refill unit automates the filling of hot water heating systems. The integrated pipe dis-
connector (type BA system separator) compliant with DIN EN 1717 and DIN EN 12729 prevents pressur-
ing back of heating water into the drinking water pipe. In this combination with the pipe disconnector, the
direct permanent connection to the heating system is permitted in accordance with DIN EN 1717. The in-
tegrated pressure reducer ensures the correct and constant filling pressure of the system.
Conversion
5
1 bar = 10 Pa = 0,1 N/mm
DN 20
2
25
