8.
Re-check the correct fit of the orthosis,
and make some more adjustments, if
necessary.
9.
Once a correct fit has been achieved,
secure the Click & Lock closures on
the femoral panel and the hip brace.

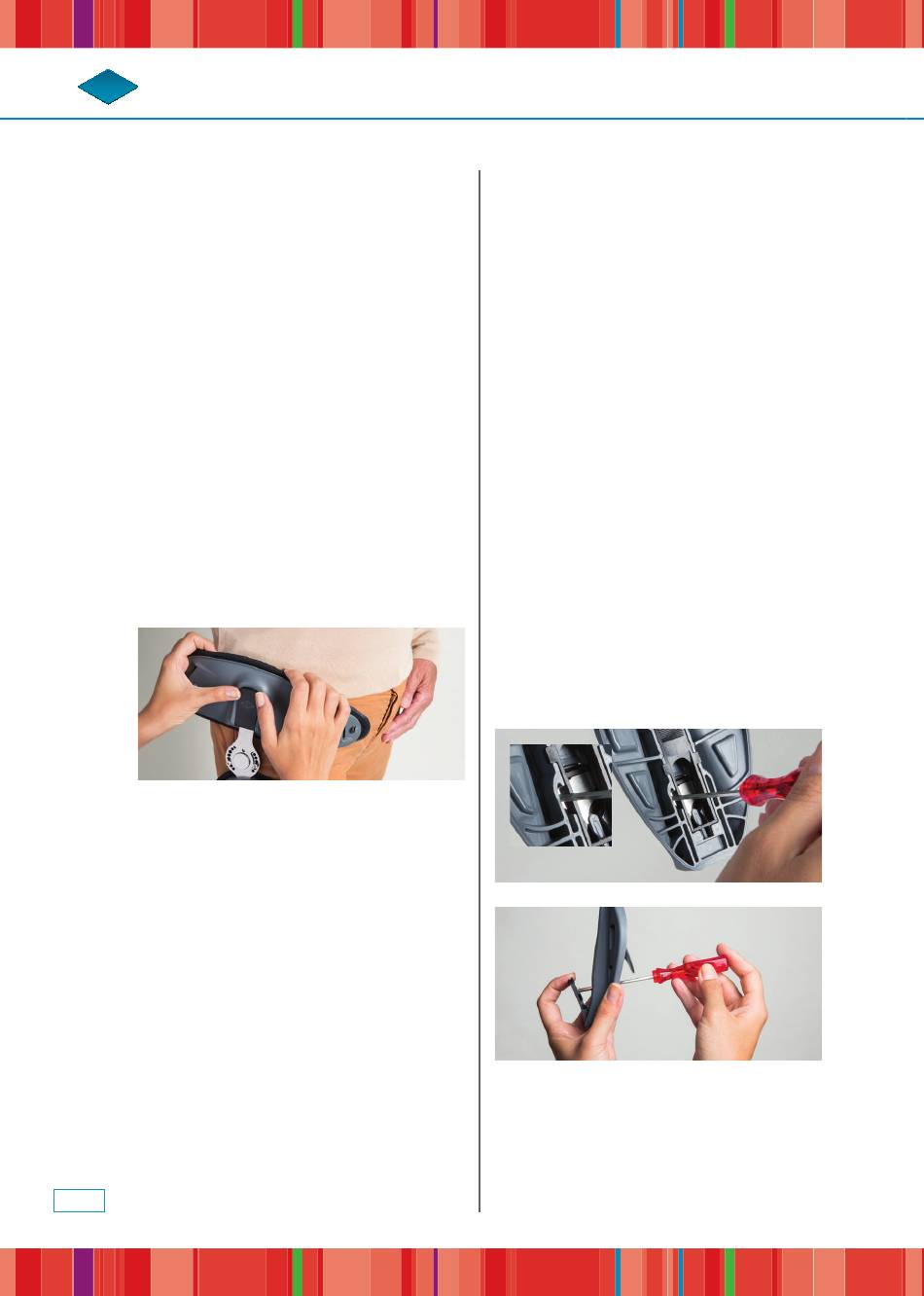

Please note:
Lock closures by pushing against the
latch with your thumbs while simulta-
neously creating counter pressure with
your fingers. This will ensure that ne-
ither the leg nor the hip of the patient
are subjected to any possibly harmful
pressure (fig. 29).
29
10.
It may be necessary to open the central
buckle of the pelvic brace again so you
can easily push the latches of the Click &
Lock closures into position. Afterwards,
the central buckle can be closed again.
11. Please consider the following when
closing the Click & Lock closure on
the panel: For all length settings
(minimum, maximum and in between)
each of the two pins must lock into
one of the holes in the bar. Only then
the Click & Lock closures will sit flush
against the orthosis.
EN-16
User Manual
Only close the Click &
12.
In case the Click & Lock closure can
later not be locked completely, push
or pull the bar up or down a little,
until both pins have audibly locked
into the next hole.
13.
After pushing the latches flush
against the orthosis, any unintended
opening of the DynaCox evolution
will not be possible anymore. To open
the Click & Lock closures, insert an
Allen key into the small opening on
the back of the closure (fig. 30), and
push the latch open (fig. 31). This
opening can be found on both the
closures on the femoral panel and
the pelvic panels.
30
31
