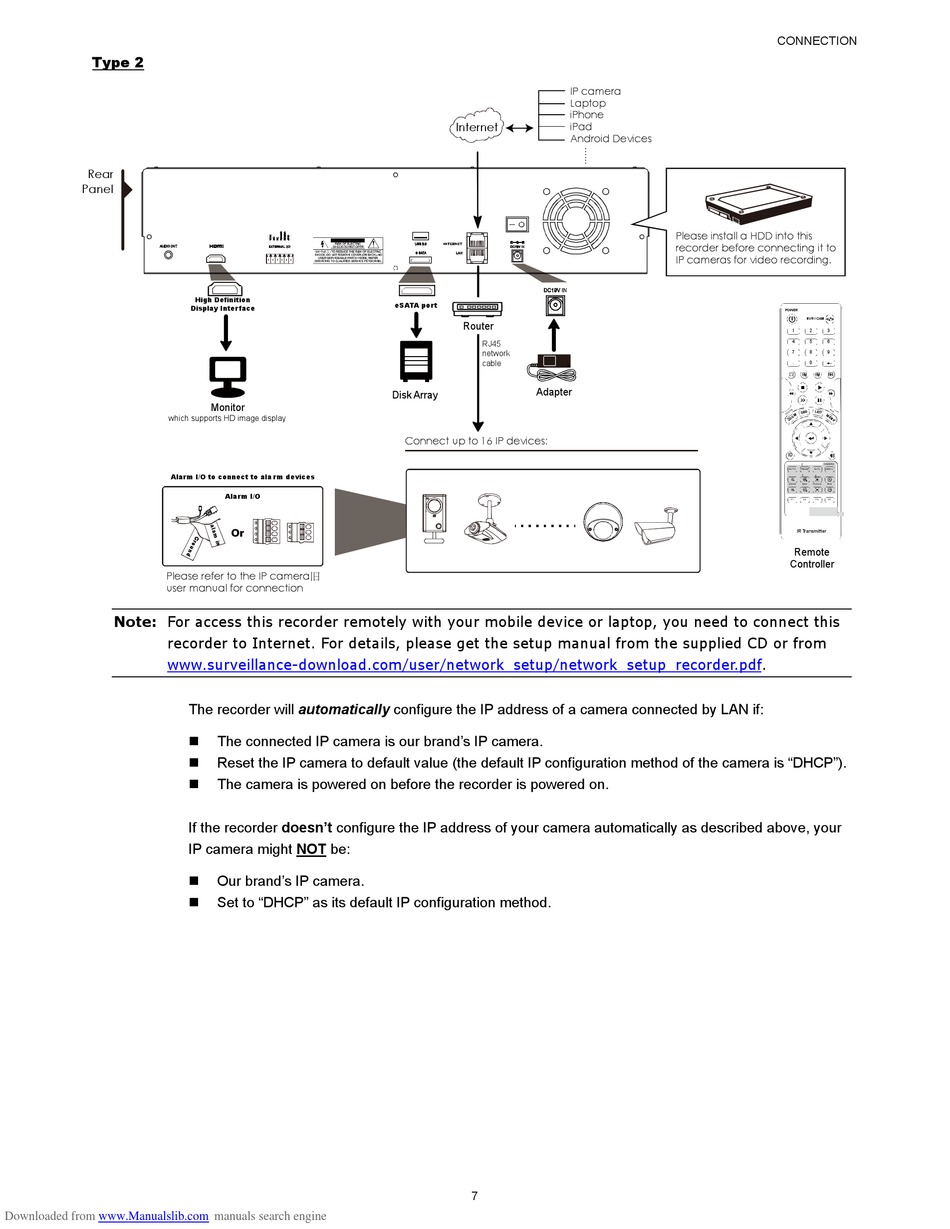

Type 2
Rear
Panel
which supports HD image display
Alarm I/O to connect to ala rm devices
Please refer to the IP camera旧
user manual for connection
Note: For access this recorder remotely with your mobile device or laptop, you need to connect this
recorder to Internet. For details, please get the setup manual from the supplied CD or from
www.surveillance-download.com/user/network_setup/network_setup_recorder.pdf.
Downloaded from www.Manualslib.com
High Definition
Display Inter face
Monitor
Alarm I/O
Or
The recorder will automatically configure the IP address of a camera connected by LAN if:
 The connected IP camera is our brand's IP camera.
 Reset the IP camera to default value (the default IP configuration method of the camera is "DHCP").
 The camera is powered on before the recorder is powered on.
If the recorder doesn't configure the IP address of your camera automatically as described above, your
IP camera might NOT be:
 Our brand's IP camera.
 Set to "DHCP" as its default IP configuration method.
manuals search engine
IP camera
Laptop
iPhone
Internet iPad
Android Devices
eSATA port
Router
RJ45
network
cable
Adapter
Disk Array
Connect up to 16 IP devices:
7
CONNECTION
Please install a HDD into this
recorder before connecting it to
IP cameras for video recording.
