1.0 RECEIVING INSTRUCTIONS

Visually inspect all components for shipping
damage. Shipping damage is not covered by
warranty. If shipping damage is found notify carrier
at once. The carrier is responsible for all repair and
replacement costs resulting from damage in
shipment.

SAFETY FIRST

Read all instructions, warnings and cautions
carefully. Follow all safety precautions to avoid
personal injury or property damage during system
operation. Enerpac cannot be responsible for
damage or injury resulting from unsafe product use,
lack of maintenance or incorrect product and/or
system operation. Contact Enerpac when in doubt
as to the safety precautions and applications.
TO PROTECT YOUR WARRANTY, USE ONLY
ENERPAC HYDRAULIC OIL.
A CAUTION is used to indicate correct operating or
maintenance procedures and practices to prevent
damage to, or destruction of equipment or other
property
A WARNING indicates a potential danger that
requires correct procedures or practices to avoid
personal injury.

2.0 SAFETY ISSUES

Failure to comply with the following
cautions and warnings could cause
equipment damage and personal injury.
IMPORTANT: Minimum age of the
operator must be 18 years. The operator
must have read and understood all instructions,
safety issues, cautions and warnings before starting
to operate the Enerpac equipment. The operator is
responsible for this activity towards other persons.
CAUTION: Make sure that all system
components are protected from external
sources of damage, such as excessive
heat, flame, moving machine parts, sharp edges and
corrosive chemicals.
WARNING: Immediately replace worn or
damaged parts with genuine Enerpac
parts. Enerpac parts are designed to fit
properly and withstand rated loads.
WARNING: Always wear safety glasses.
The operator must take precaution
against injury due to failure of the tool or
workpiece
We recommend the use of special
loosening liquids or sprays. Enerpac
hydraulic torque wrenches offer both
square and hexagon drive units to loosen or tighten
bolts and nuts. Enerpac offers nut splitters in case a
nut can not be removed.

3.0 PRODUCT DESCRIPTION ATM-1

The ATM-1 Alignment Tool has been developed as
the simple solution to small, low-pressure flange
misalignment.
Misalignment of flange joints often occurs when they
are broken-down for testing, routine maintenance, or
during shutdowns. Also during a construction phase
when new pipe is being installed, final alignment may
be required. Current methods of flange manipulation
tend to be dangerous involving a high degree of
manual lifting and can damage the bolt holes.

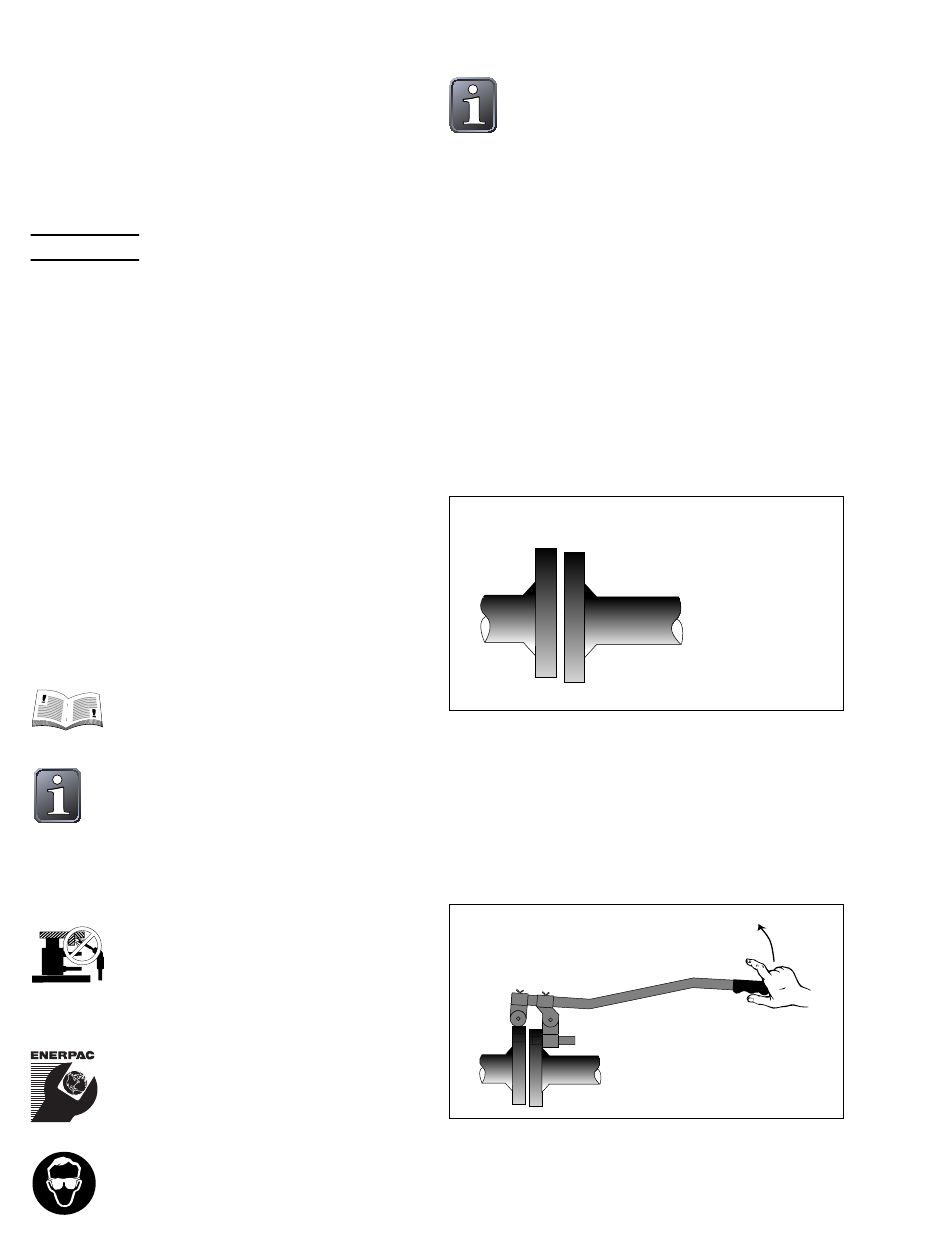

Fig. 1 The Problem
The Enerpac Hand Tool has been designed as the
simple solution.
• Safe
• Damage-free
• Easy To Use
• Can Be Used On 57 Flange Sizes
• Range of 3 Bushing Sizes
Fig. 2 The Solution
Alignment is achieved in less than a minute allowing
the operator to insert the first bolt.
2
A Misaligned Flange Joint
