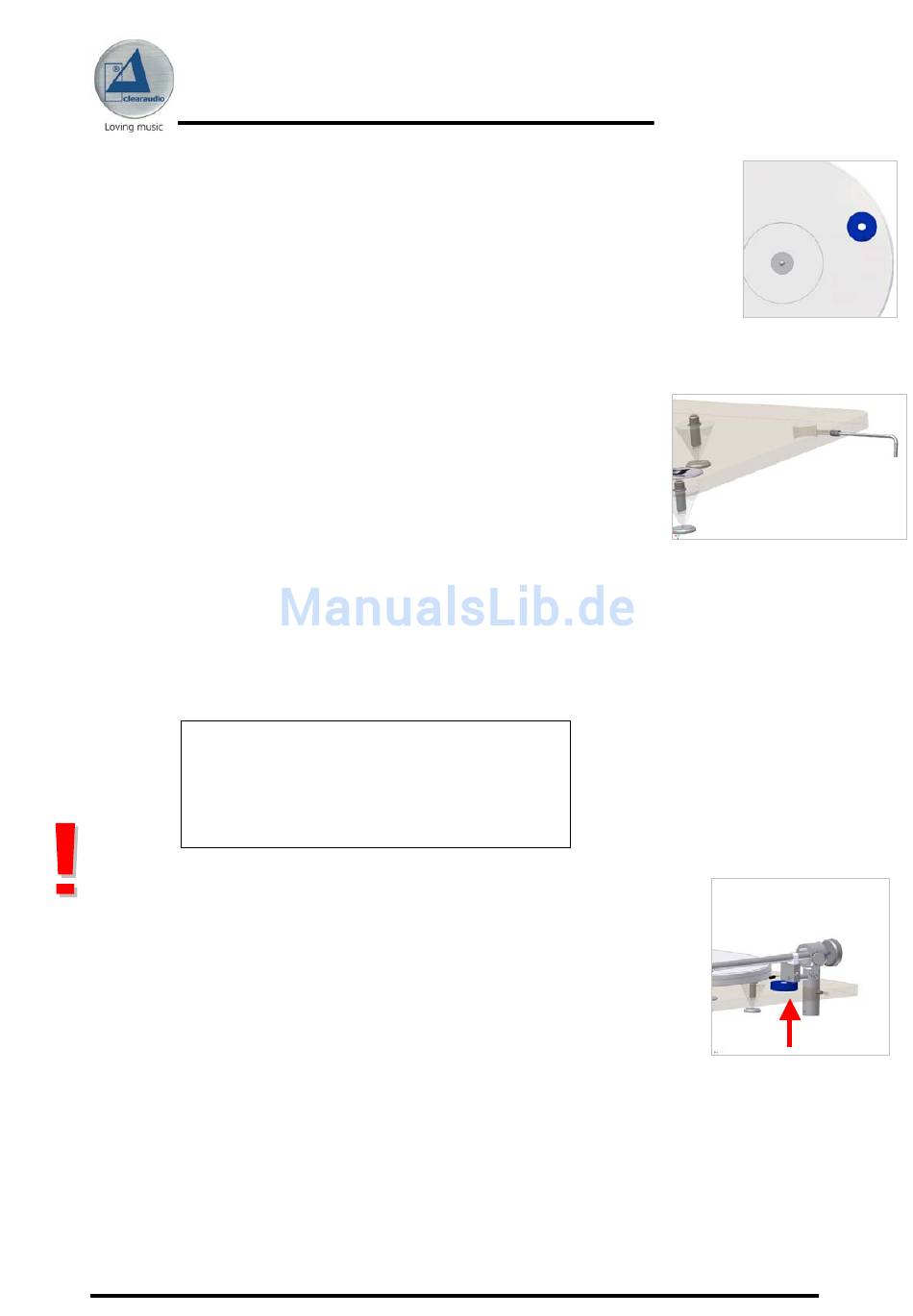

6.) Place the clearaudio level gauge on the platter and bring the
turntable in level by turning the corresponding spikes in the right
direction.
The following adjustment is very important:
should the air bubble in the level gauge not be in the black circle (see at
the blow up), please ensure then that your underground so will be
according aligned. Only if the turntable will be aligned you will receive
the optimum on sound.
7.) Take the threaded bolt (metric winding size 6) out of your
accessory bag and screw it with the adequate allen key into the
winding near the tonearm cut of the turntable chassis, so that
the front of the bolt is not facing out the inner side of the
tonearm cut.
8.) Now it's the right time to mount your cartridge on your
Satisfy
-tonearm.
Please use the manufacturer's instruction manual while this
installation procedure and follow the appropriate instructions.
The headshell wires (cartridge connection leads) are colour coded according to the
international
standard :
Colour code of the Satisfy tonearm wire:
Signal left channel (L+)
Signal ground left channel (L -)
Signal right channel (R+)
Signal ground right channel (R -)
Please pay attention on every step to avoid any damages to the cartridge !
Satisfy
9.) Now take the
the stylus protector on it!) and slide first the signal cable and then the
tonearm shaft into the pre-drilled hole on the right side of the
Emotion Start Smart
the hole as the cuing lever unit sits on the clearaudio level gauge
(accessorie box) as shown in the beneath picture. If you like to use a
mat on the turntable platter, please consider to add the thickness of
the mat while adjusting the tonearm height.
Please ensure that the tonearm tube is in parallel to the right edge of the turntable
body. Fix this position while
gently locking the allen screw in the turntable-body's edge.
Now adjust the tracking force of the cartridge. Please follow the instructions
according the manual of the cartridge you use.
If you are using a clearaudio Moving Magnet cartridge (e.g. clearaudio
classics Wood
) you can adjust the force (about 20 mN), by turning the tonearm`s
Page / Seite 7
→
→
→
→
-tonearm with the mounted cartridge (and
turntable body. Let the tonearm slide as far into
Emotion
white
blue
red
green
 clearaudio electronic GmbH 2008
User manual / Bedienungsanleitung
Picture 5: Alignment of the
turntable
Picture 6: To screw the threaded bolt
Picture 7: Tonearm height adjustment
Aurum
