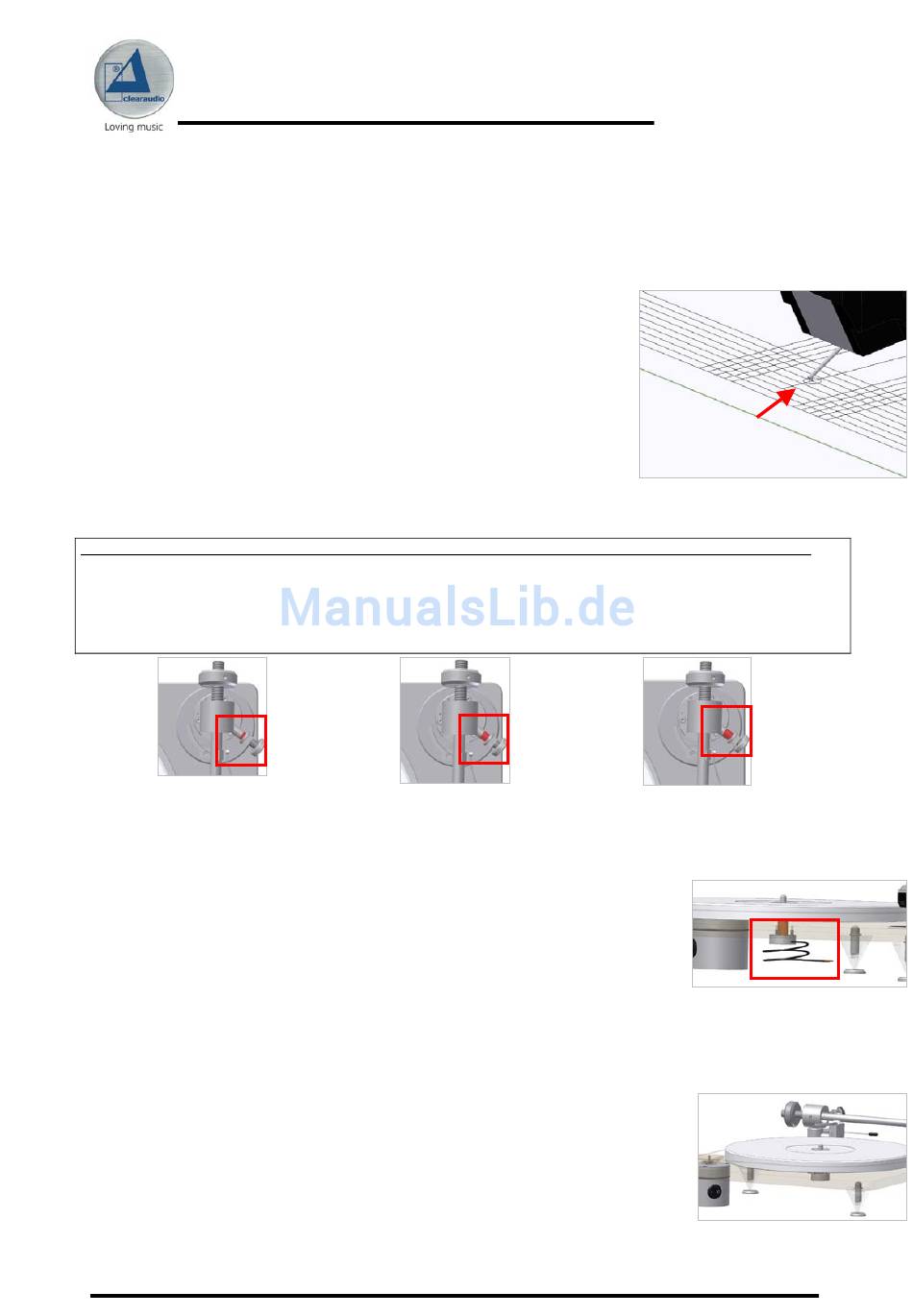

Clearaudio BluemotionStart Smart Bedienungsanleitung Seite 10

cartridge is parallel to the marker
lines of the cartridge alignment gauge. Fix the right position through
looking the headshell screw on the top.
During final tonearm and cartridge installation, always take a look from the top onto
the alignment gauge, to avoid any parallax errors.
14.) The installation is done correctly, when at the same time
the armtube is parallel to the marking lines on the gauge, the
diamond tip is on the reference point and the leading edge of
the cartridge is parallel to the lines on the gauge. Finally lock
all screws that had been involved during the adjustments.
Now you are ready for the anti-skating adjustment.
This also depends on the tracking force of the cartridge and
the diamond shape.
alignment of the anti-skating
minimal antiskating
medium antiskating
maximum antiskating
Illustration 1 :
Minimal antiscating
Picture 11: Anti-skating adjustment
The general set-up is now finished.
Satisfy
15.) Connect your
your phono-preamplifier. (More information on adequate phono-
preamplifiers and interconnects you can find on our Website:
www.clearaudio.de)
16.) Place one drive belt (the second is for spare) around the platter
and around the pulley. The smaller diameter of the pulley is used for 33 1/3 rpm
and the larger diameter for 45 rpm. The position „I" on the motor-switch indicates
that the turntable is switched on. Please let the turntable be
switched on for the first 15 to 30 minutes, for breaking in.
Now you are finally ready to play your vinyl records.
We wish you a lot of pleasure with your new
turntable.
Your clearaudio-team
Page / Seite 9
tracking force
10 – 15mN
15 – 20mN
20mN and more
Illustration 2 :
Medium antiscating
-tonearm now with the phono input of
Picture 10: Correct installation
position of the antiskating-screw
see illustration 1
see illustration 2
see illustration 3
Illustration 3 :
Maximum antiscating
Emotion Start Smart
 clearaudio electronic GmbH 2008
Emotion
User manual / Bedienungsanleitung
Picture 12: Connecting the tonearm
with the phono input
Picture 13: Drive belt mounting
