Clearaudio SMART MATRIX Bedienungsanleitung

Clearaudio SMART MATRIX Bedienungsanleitung

Plattenwaschmaschine

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

S
m
a
r
t
S
m
a
r
t
M
a
t
r
i
x
M
a
t
r
i
x

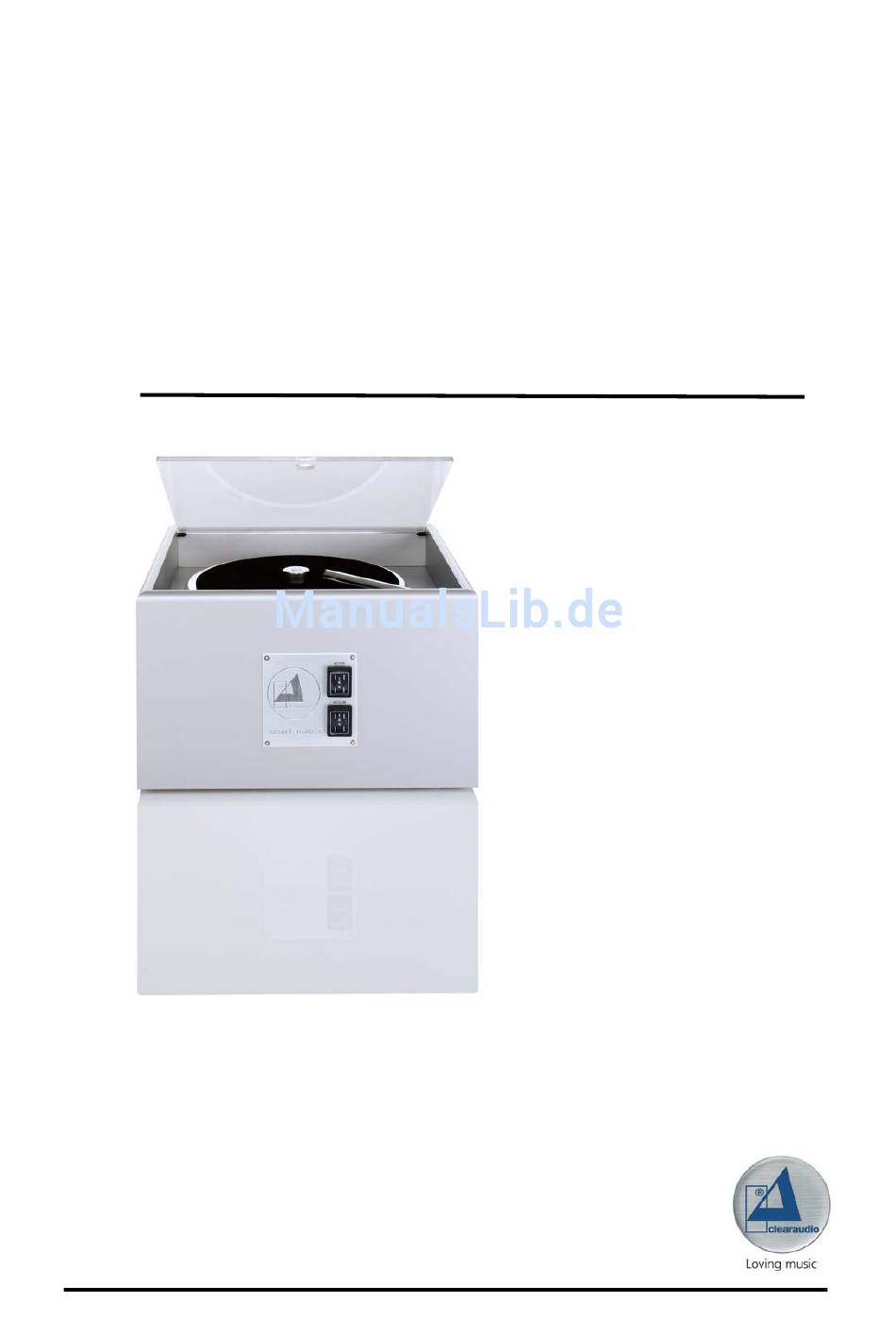

Bedienungsanleitung
User manual
Seite 1
© clearaudio electronic GmbH 2006

Werbung

Kapitel

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Clearaudio SMART MATRIX

  • Seite 1 Bedienungsanleitung User manual Seite 1 © clearaudio electronic GmbH 2006...
  • Seite 2 Plattenwaschmaschine. clearaudio electronic GmbH Wichtig: Lesen Sie diesen Abschnitt in jedem Fall, bevor Sie die Smart Matrix an das Stromnetz anschließen: Die Smart Matrix ist sowohl für 230V als auch für 110V Spannungsversorgung erhältlich. Prüfen Sie daher vor dem Verbinden der Smart Matrix mit dem Stromnetz unbedingt, für welche Netzspannung Ihre Smart Matrix ausgelegt ist.
  • Seite 3: Inhaltsverzeichnis

    Smart Matrix Bedienungsanleitung / USER MANUAL Inhaltsverzeichnis 1. Lieferumfang 2. Smart Matrix im Überblick 3. Aufstellung und Inbetriebnahme 4. Wichtige Betriebshinweise 5. Zubehör 6. Garantie Informationen 12-13 7. Technische Daten Seite 3 © clearaudio electronic GmbH 2006...
  • Seite 4: Lieferumfang

    Smart Matrix Bedienungsanleitung / USER MANUAL 1. Lieferumfang Die clearaudio Smart Matrix Plattenwaschmaschine verlässt unsere Fertigung in einer besonders sicheren und speziell auf das Produkt abgestimmten Verpackung. Wir empfehlen Ihnen diese Originalverpackung für einen eventuellen Transport aufzuheben. Nehmen Sie nach dem Öffnen des Kartons das zwischen Karton und Maschine beigepackte Zubehör heraus und legen es griffbereit zur Seite.
  • Seite 5 Klemmpuck (3) Absaugarm aus rostfreiem Edelstahl 5m Netzanschlusskabel Klemmpuck zum Befestigen der 1 Set Ersatz-Mikrofaser- Schallplatte auf dem Teller Reinigungsstreifen (nicht abgebildet) Antistatische Plattentellerauflage Bedienungsanleitung 100 ml Reinigungsflüssigkeit „Pure Garantiekarte Groove“ in Plastikdosierflasche Seite 5 © clearaudio electronic GmbH 2006...
  • Seite 6: Smart Matrix Im Überblick

    Smart Matrix Bedienungsanleitung / USER MANUAL 2. Smart Matrix im Überblick Stromnetzanschluss (an der Geräterückseite) Acrylglasabdeckung Absaugarm aus Edelstahl mit Microfaser - Reinigungsstreifen Plattenteller- auflagematte Klemmpuck Bedienelemente: Rechts- Linkslauf des Plattentellers, Vakuumabsaugung Ablassschlauch (an der Geräterückseite) Seite 6 © clearaudio electronic GmbH 2006...
  • Seite 7: Aufstellung Und Inbetriebnahme

    Mikrofaserreinigungsstreifen entlang des Absaugschlitzes auf dem Edelstahlabsaugrohr auf ohne den Absaugschlitz zu verkleben. HINWEIS: Übermäßig stark verschmutzte Mikrofaserbezüge können die Schallplatte beim Reinigungsvorgang beschädigen. Eine Sichtprüfung der Mikrofaserbezüge ist daher vor jedem Betrieb ratsam! Seite 7 © clearaudio electronic GmbH 2006...
  • Seite 8 Leerrillen auf das Papierlabel laufen oder auch am Außenrand der LP auf das Gehäuse tropfen. Überschüssige Flüssigkeit entfernen Sie bitte z.B. mit einem Tuch, damit sowohl das Label wie auch die Gehäuseoberfläche trocken bleiben. Seite 8 © clearaudio electronic GmbH 2006...
  • Seite 9 Schlauch in ein geeignetes Gefäß hängen, damit die Flüssigkeit ablaufen kann. Verschließen Sie nach der Entleerung den Schlauch unbedingt wieder mit der Dichtkappe und schieben den Schlauch anschließend wieder in die Maschine zurück. Viel Spaß beim Reinigen Ihrer Schallplatten! Seite 9 © clearaudio electronic GmbH 2006...
  • Seite 10: Wichtige Betriebshinweise

    Überschreiten der zulässigen Betriebstemperatur innerhalb der Maschine schaltet die Schutzschaltung den Betrieb der Maschine ab. Schalten Sie in diesem Fall die Maschine aus und warten mindestens 30 Minuten, bevor Sie mit der Reinigung fortfahren! Seite 10 © clearaudio electronic GmbH 2006...
  • Seite 11: Zubehör

    Eine optimal auf die Entfernung von Staub- und Fettverschmutzungen und Rückständen der Erstpressung abgestimmte Reinigungsflüssigkeit, die sich rückstandslos verflüchtigt. Plattentellermatte: Sollten Sie eine neue Plattentellermatte benötigen, achten Sie darauf, stets die clearaudio Original-Plattentellermatte zu verwenden. Diese ist speziell beschichtet und daher elektrisch leitend. Hierdurch wird einer elektrostatischer Aufladung der Schallplatte entgegengewirkt.
  • Seite 12: Garantie Informationen

    6. Garantie Informationen Smart Matrix Die Garantiezeit der beträgt zwei Jahre. Sie können die volle clearaudio-Garantie von drei Jahren in Anspruch nehmen, wenn Sie die beigelegte Garantiekarte innerhalb von vier Wochen vollständig ausgefüllt an unten aufgeführte Firmenanschrift einsenden: clearaudio electronic GmbH...
  • Seite 13 Bedienungsanleitung / USER MANUAL Your purchase receipt is your permanent record of a valuable purchase. It should be kept in a safe place to be referred to as necessary for insurance purposes or when corresponding with clearaudio. IMPORTANT When seeking warranty service, it is the responsibility of the consumer to establish proof and date of purchase. Your purchase receipt or invoice is adequate for such proof.
  • Seite 14: Technische Daten

    Die clearaudio entspricht den Bestimmungen über elektromagnetische Störfreiheit (EMC) und denen über Niederspannungsgeräte. * nur bei korrekt ausgefüllter und eingesandter Garantiekarte (siehe Punkt 6) Technische Änderungen im Sinne des Fortschritts vorbehalten Stand:September 06 Seite 14 © clearaudio electronic GmbH 2006...
  • Seite 15 You must read the folowing before you connect your Smart Matrix to any power outlet: The Smart Matrix is available in a version for 230V as well as for 110V. Please make sure that you use the right voltage and connection with the machine.
  • Seite 16 Smart Matrix Bedienungsanleitung / USER MANUAL Contents 1. Contents 17-18 2. General overview of the Smart Matrix 3. Set-up and user instructions 20-22 4. Important user information 5. Accessories 6. Warranty information 25-26 7. Technical data Seite 16 © clearaudio electronic GmbH 2006...
  • Seite 17: Contents

    The included Warranty and Registration Card, should be filled out and sent to clearaudio within 4 weeks after purchasing the Smart Matrix. This will ensure the full Warranty and Service in the future. Please read more on page 12.
  • Seite 18 Smart Matrix Bedienungsanleitung / USER MANUAL 1. Contents Smart Matrix machine with placed Micro fabric brush „Pure Groove“ for Record mat (4) and applying the cleaning fluid screw down puck (3) Vacuum Arm tube, made out of 5m Power cord...
  • Seite 19: General Overview Of The Smart Matrix

    Smart Matrix Bedienungsanleitung / USER MANUAL 2. Smart Matrix overview Power input socket Acrylic cover (at the Back panel) Vacuum Armtube, Stainless steel, including microfabric strips Platter mat Screw down puck Operation buttons: Left - right switch for platter direction,...
  • Seite 20: Set-Up And Operation

    Note : Micro fabric stripes which are completely dirty or gummed up, can damage your records. Please check them always before use !!! Seite 20 © clearaudio electronic GmbH 2006...
  • Seite 21 Connect your machine with the mains cable (7) to your wall socket and the integrated socket on the back side of the machine. The Smart Matrix must be used only and always with a grounded mains wall socket. DANGER if not !!!
  • Seite 22 Replace the secure cap of the rubber tube. Please keep in mind, the secure cap must always be on the tube. If not, malfunction may occur or even damage the machine. Please enjoy cleaning your records ! Seite 22 © clearaudio electronic GmbH 2006...
  • Seite 23: Important User Information

    In this case, please switch the machine completely off and wait at least Smart Matrix 30 minutes, before you start using the again ! Seite 23 © clearaudio electronic GmbH 2006...
  • Seite 24: Accessories

    Record mat : If you should need a new record mat for any reason, you should use the original clearaudio record mat, because it is specially sealed in case of antistatic, and prevents electrostatic charges.
  • Seite 25: Warranty Information

    If a warranty repair is declared from clearaudio, the repair will be free of charge, during the warranty period. If you transport or ship the Smart Matrix for any reason, the original packaging is required to be used. Please pack the machine like it has been packed originally from clearaudio. Only in the original packiging is secure transport possible.
  • Seite 26 RETAIN YOUR PURCHASE RECEIPT Your purchase receipt is your permanent record of a valuable purchase. It should be kept in a safe place to be referred to as necessary for insurance purposes or when corresponding with clearaudio. IMPORTANT When seeking warranty service, it is the responsibility of the consumer to establish proof and date of purchase. Your purchase receipt or invoice is adequate for such proof.
  • Seite 27: Technical Data

    Never put or use any equipment with open flames, like candles on top of this equipment ! CE-MARKIERUNG Smart Matrix The clearaudio is approved according to the regulations of the CE certification and other international standarts and approvals. Technical changes prior without any notice Stand: September 06 Seite 27 © clearaudio electronic GmbH 2006...
