Operating Instructions
QJ 600-E

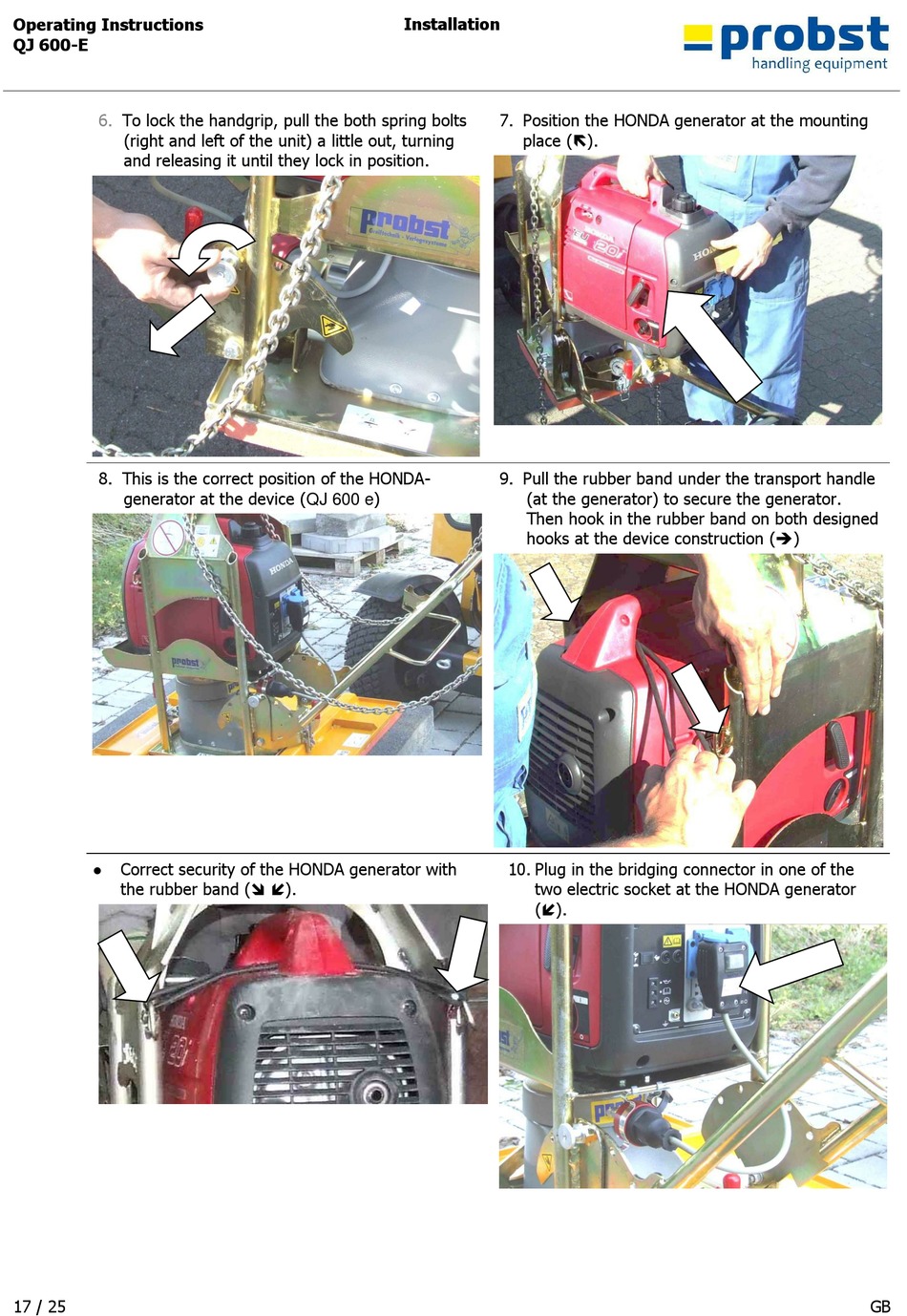

6. To lock the handgrip, pull the both spring bolts
(right and left of the unit) a little out, turning
and releasing it until they lock in position.
8. This is the correct position of the HONDA-
generator at the device (QJ 600 e)
● Correct security of the HONDA generator with
the rubber band ( ).
Pos : 21 /99 g erätes pez. M odul e/PG2 Vakuum-Verleges ysteme/52400033 QJ 600 e/N EU_Ins tall ation/Wec hsel n Saugpl atten_QJ 600 e_52400033 @ 3\mod_1258980914100_2.doc x @ 29635 @ 2 @ 1
17 / 25
Installation
7. Position the HONDA generator at the mounting
place ().
9. Pull the rubber band under the transport handle
(at the generator) to secure the generator.
Then hook in the rubber band on both designed
hooks at the device construction ()
10. Plug in the bridging connector in one of the
two electric socket at the HONDA generator
().
GB
