Operating Instructions
QJ 600-E
Pos : 6 /03 Allgemeines /01 Besti mmungsgemäßer Einsatz/01 Besti mmungsgemäß er Ei ns atz ( Pflicht-Modul e) /x_KÜ_ Allgemeines @ 0\mod14_2.doc x @ 6409 @ 1 @ 1

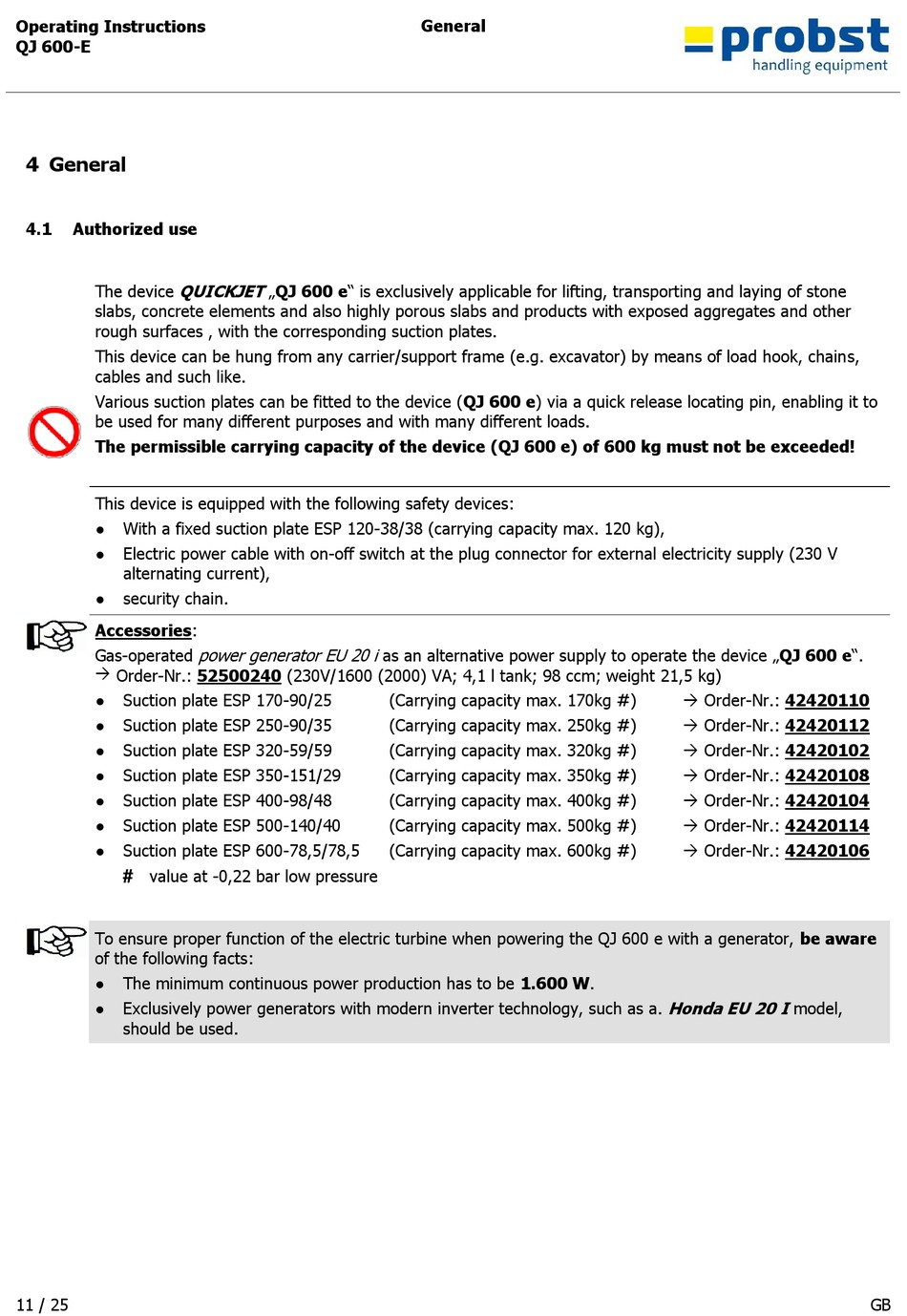

4 General

Pos : 7 /03 Allgemeines /01 Besti mmungsgemäßer Einsatz/01 Besti mmungsgemäß er Ei ns atz ( Pflicht-Modul e) /Ü _Bes timmungsgemäß er Eins atz @ 0\mod350_2.doc x @ 6437 @ @ 1
4.1

Authorized use

Pos : 8 /99 ger ätespez. Module/PG2 Vakuum-Verleges ysteme/52400033 QJ 600 e/Bestgem. Ei ns atz _QJ 600 e (52400033) @ 3 \mod_1258450305009_2.doc x @ 29464 @ @ 1
The device QUICKJET
slabs, concrete elements and also highly porous slabs and products with exposed aggregates and other
rough surfaces , with the corresponding suction plates.
This device can be hung from any carrier/support frame (e.g. excavator) by means of load hook, chains,
cables and such like.
Various suction plates can be fitted to the device (QJ 600 e) via a quick release locating pin, enabling it to
be used for many different purposes and with many different loads.
The permissible carrying capacity of the device (QJ 600 e) of 600 kg must not be exceeded!
This device is equipped with the following safety devices:
● With a fixed suction plate ESP 120-38/38 (carrying capacity max. 120 kg),
● Electric power cable with on-off switch at the plug connector for external electricity supply (230 V
alternating current),
● security chain.

Accessories:

Gas-operated
 Order-Nr.: 52500240 (230V/1600 (2000) VA; 4,1 l tank; 98 ccm; weight 21,5 kg)
● Suction plate ESP 170-90/25
● Suction plate ESP 250-90/35
● Suction plate ESP 320-59/59
● Suction plate ESP 350-151/29
● Suction plate ESP 400-98/48
● Suction plate ESP 500-140/40
● Suction plate ESP 600-78,5/78,5
value at -0,22 bar low pressure
#
To ensure proper function of the electric turbine when powering the QJ 600 e with a generator, be aware
of the following facts:
● The minimum continuous power production has to be 1.600 W.
● Exclusively power generators with modern inverter technology, such as a.
should be used.
11 / 25
„QJ 600 e" is exclusively applicable for lifting, transporting and laying of stone
power generator EU 20 i
General
as an alternative power supply to operate the device „QJ 600 e".
(Carrying capacity max. 170kg #)
(Carrying capacity max. 250kg #)
(Carrying capacity max. 320kg #)
(Carrying capacity max. 350kg #)
(Carrying capacity max. 400kg #)
(Carrying capacity max. 500kg #)
(Carrying capacity max. 600kg #)
 Order-Nr.: 42420110
 Order-Nr.: 42420112
 Order-Nr.: 42420102
 Order-Nr.: 42420108
 Order-Nr.: 42420104
 Order-Nr.: 42420114
 Order-Nr.: 42420106
Honda EU 20 I
model,
GB
