Operating Instructions
QJ 600-E
Pos : 13 /03 Allgemeines/02 Übersic ht und Aufbau/Ü _Ü bersic ht und Aufbau @ 0\mod29_2.doc x @ 6451 @ 2 @ 1
4.2

Survey and construction

Pos : 14 /99 g erätes pez. M odul e/PG2 Vakuum-Verleges ysteme/52400033 QJ 600 e/Aufbau+T ec hn. D aten_QJ 600 e_52400033 @ 3\mod_1258459416049_2.doc x @ 29481 @ @ 1

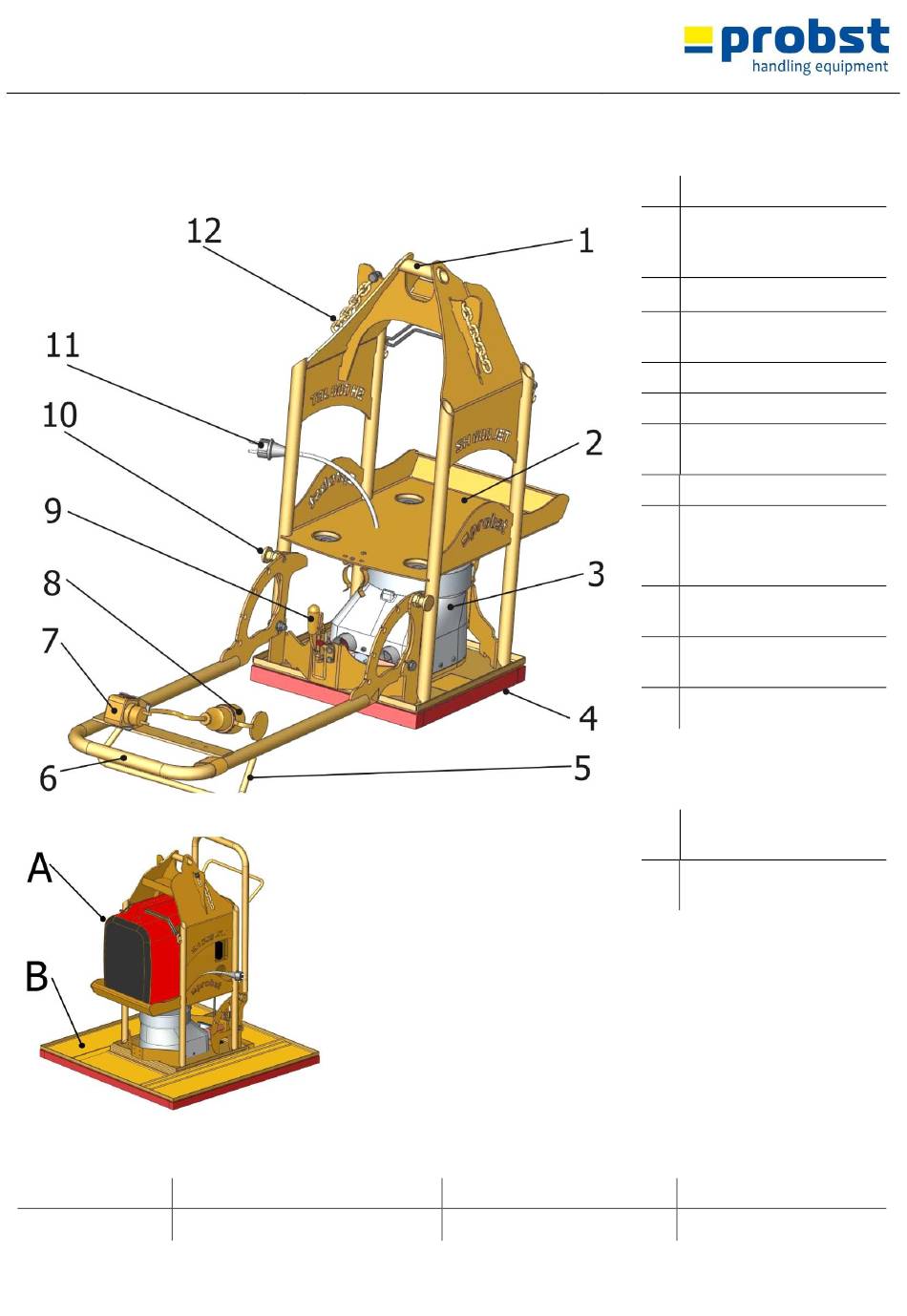

Fig.1
QJ 600 e included accessories (power generator EU 20 i - 52500240)
4.3

Technical Data

Type: Type of driving
QJ 600 e electrical, 230 V/50 Hz
14 / 25
General
Fig.2
Carrying Capacity (WLL)
600 kg
1
2
3
4
5
6
7
8
9
10
11
12
A
B
#
Suspension lug
Assembly position for
accessories „power
generator EU 20 i"
Blower unit
Suction plate ESP 120-
38/38
Terminal clamp
Handgrip
Plug for external power
supply (230 V)
Socket for blower unit (3)
Locking spanner for
mounting the accessories
Suction plates
Spring bolt for adjust the
position of the handgrip
Power plug of the blower
unit
Security chain
Power generator EU 20 i
– (52500240)
Accessories suction plate
ESP 600
Dead weight
~ 45 kg
GB
