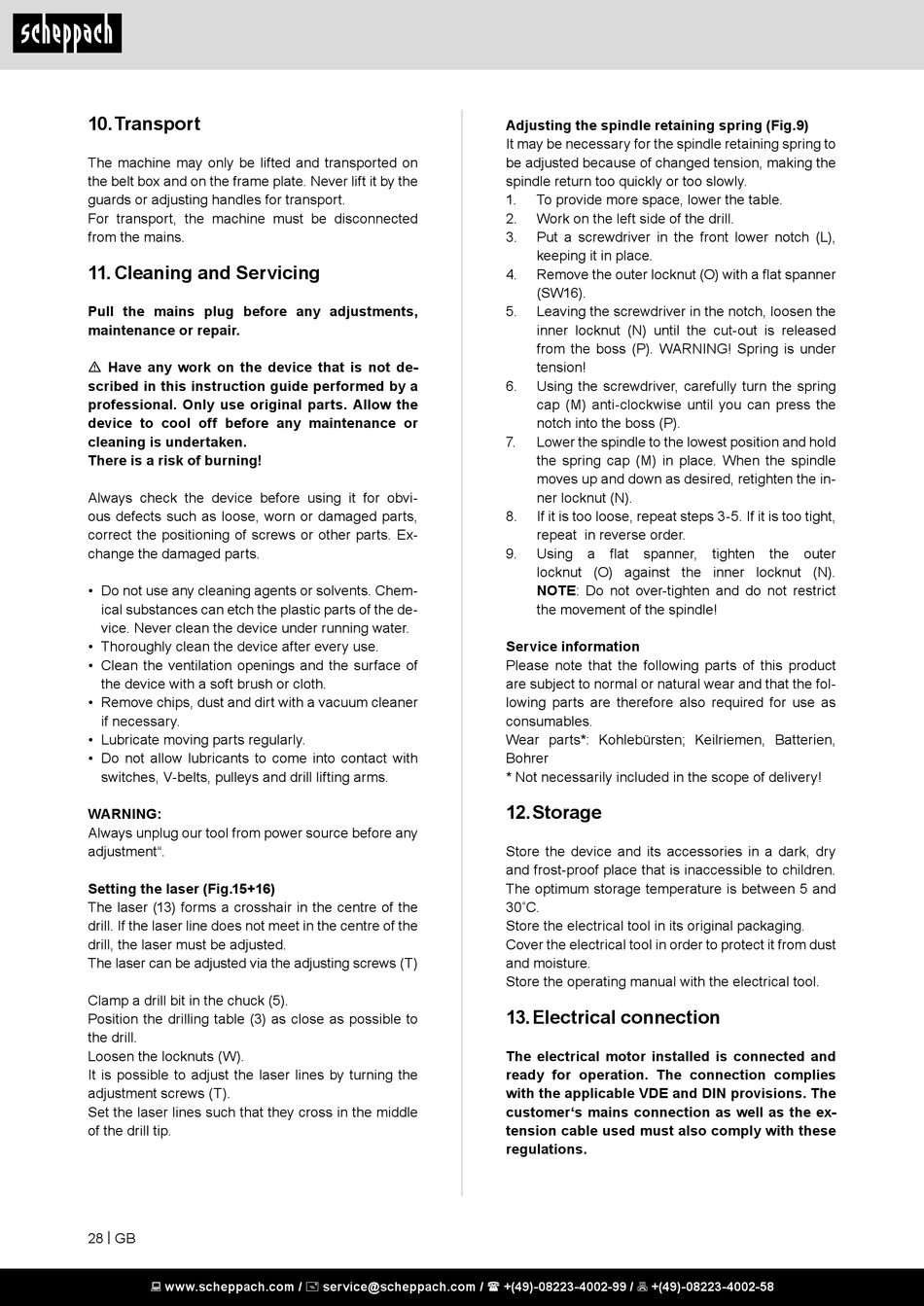

10. Transport

The machine may only be lifted and transported on
the belt box and on the frame plate. Never lift it by the
guards or adjusting handles for transport.
For transport, the machine must be disconnected
from the mains.

11. Cleaning and Servicing

Pull the mains plug before any adjustments,
maintenance or repair.
m Have any work on the device that is not de-
scribed in this instruction guide performed by a
professional. Only use original parts. Allow the
device to cool off before any maintenance or
cleaning is undertaken.
There is a risk of burning!
Always check the device before using it for obvi-
ous defects such as loose, worn or damaged parts,
correct the positioning of screws or other parts. Ex-
change the damaged parts.
• Do not use any cleaning agents or solvents. Chem-
ical substances can etch the plastic parts of the de-
vice. Never clean the device under running water.
• Thoroughly clean the device after every use.
• Clean the ventilation openings and the surface of
the device with a soft brush or cloth.
• Remove chips, dust and dirt with a vacuum cleaner
if necessary.
• Lubricate moving parts regularly.
• Do not allow lubricants to come into contact with
switches, V-belts, pulleys and drill lifting arms.
WARNING:
Always unplug our tool from power source before any
adjustment".
Setting the laser (Fig.15+16)
The laser (13) forms a crosshair in the centre of the
drill. If the laser line does not meet in the centre of the
drill, the laser must be adjusted.
The laser can be adjusted via the adjusting screws (T)
Clamp a drill bit in the chuck (5).
Position the drilling table (3) as close as possible to
the drill.
Loosen the locknuts (W).
It is possible to adjust the laser lines by turning the
adjustment screws (T).
Set the laser lines such that they cross in the middle
of the drill tip.
