2. Place a triangular wooden chock under the log, then move
the log ram forward so that it pushes the chock under the
jammed log.
3. If the log is not released, keep repeating this procedure,
using larger chocks, until the log is released.
Never use a hammer to release a jammed log, and keep
your hands away from the log.
Do not enlist the aid of a second person - this is a one-man
job.
Do not try to release the log by using a hammer, since this
may break the motor block.

Finishing work:

Before switching off the machine at the ON/OFF switch on
the electric motor, ensure that the log ram has been
allowed to return to its starting position.
Then remove the plug from the power socket.
Close the bleed screw. Fig. 4
Follow the care and maintenance instructions.
Fig. 7
Fig. 8
J

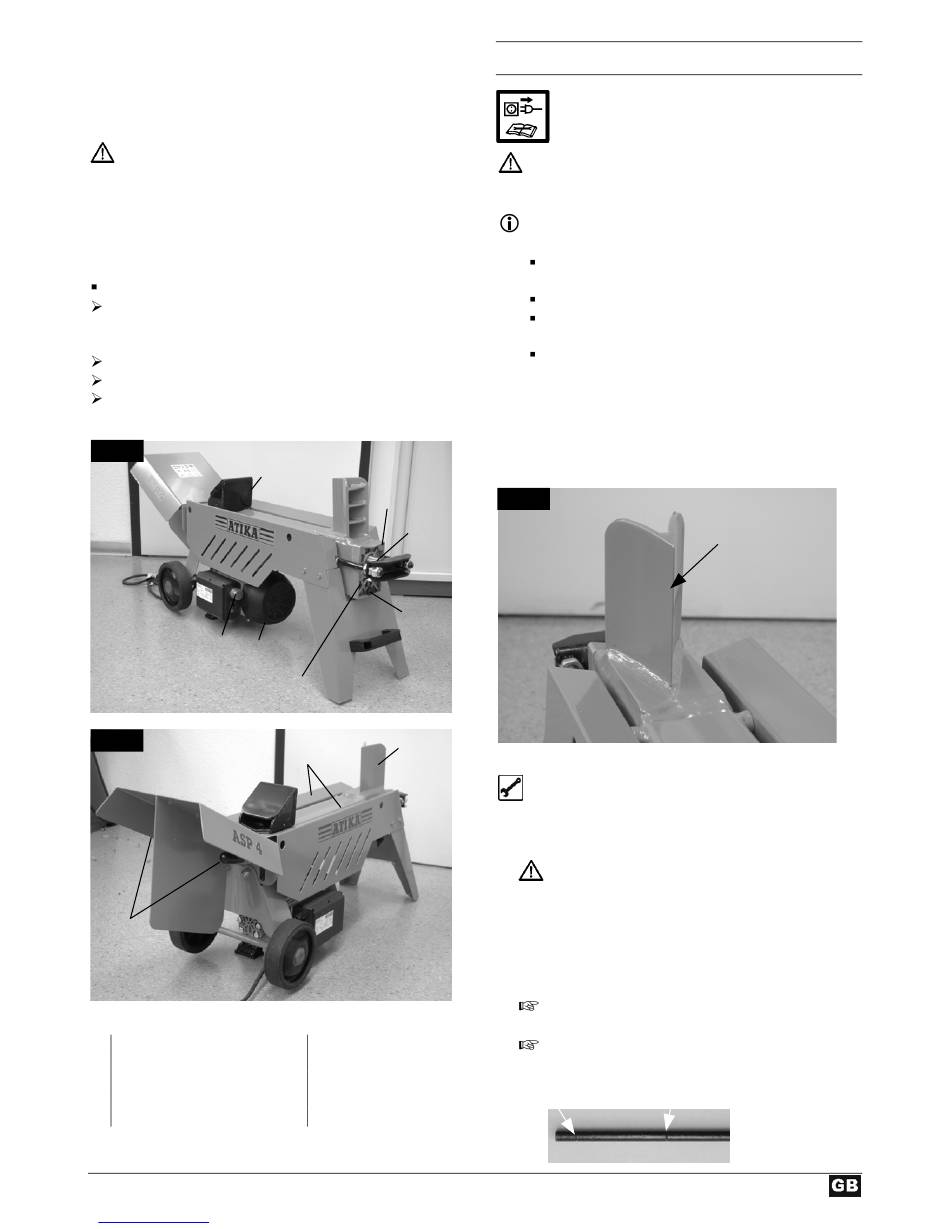

A Log ram
B Bleed screw
C Piston rod
D Dipstick
E Cylinder cover
Downloaded from www.Manualslib.com
A
B
G
F
E
I
F Electric motor
G ON/OFF switch
H Splitting wedge
I Log guide plates
J Operating handles
