Wiring Diagram 3-Phase 400/230V 50 Hz - BADU JET Turbo Pro Originalbetriebsanleitug

15. The EMC screw-type gland must be closed and tightened
after completing the wiring. Make sure that the lugs on the
plastic part grip into the groove. Only then is the position of
the plastic part interlocked.
• Remove the transport cap and O-ring from the motor plug.
• The motor plug rotates.
• The cable and motor are connected by a bayonet catch.
5.4.6

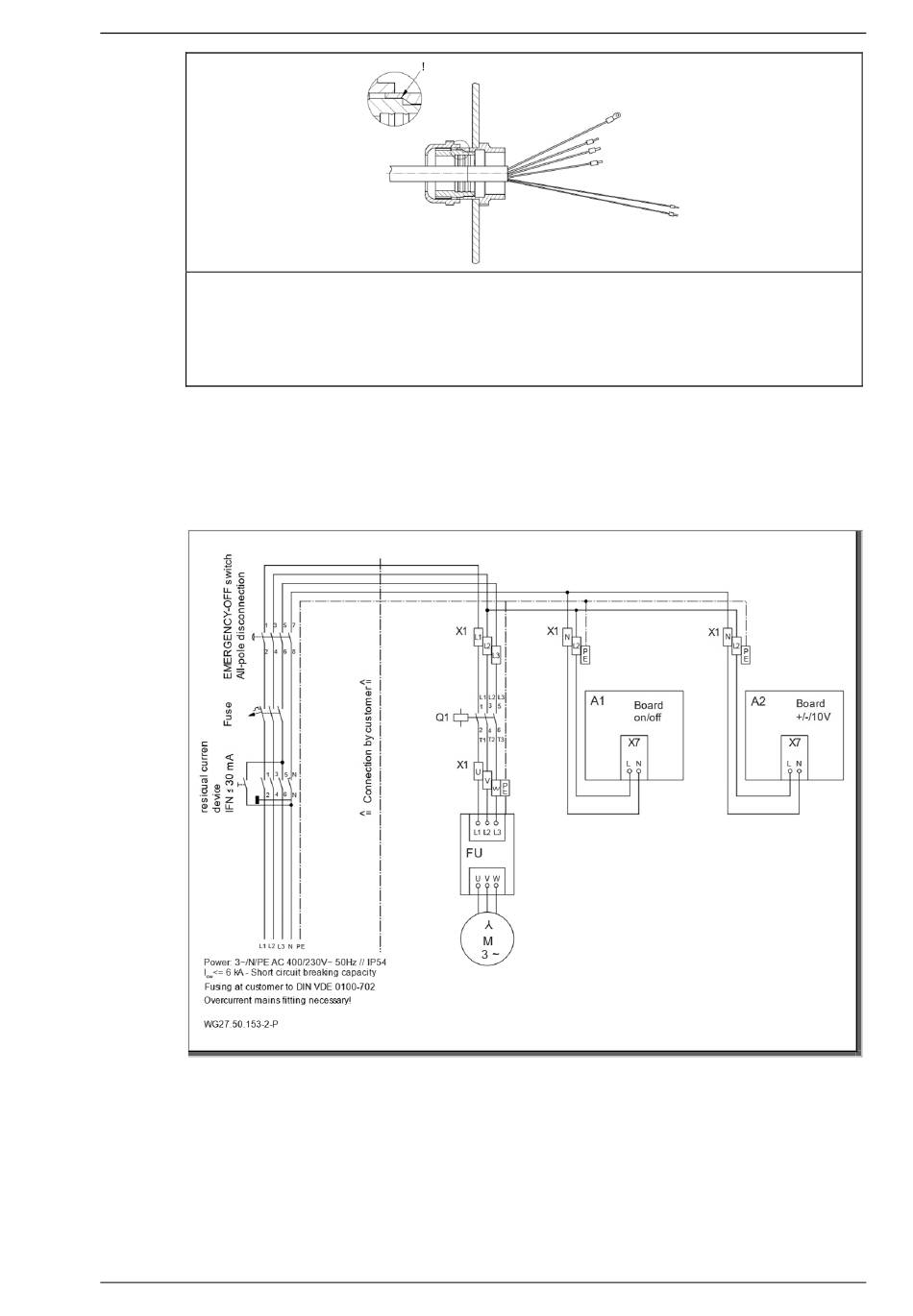

Wiring diagram 3-phase 400/230V 50 Hz

Fig. 19
08|2020
Installation
EN 37
