Final assembly (Qualified specialist)

WARNING
Risk of injury from sucking in/suction effect when the panel parts
are not installed!
 All panel parts must be mounted.
All warranty and damage compensation rights will be voided for
damages due to noncompliance or incorrect installation.
5.3.1

Installing the piezo buttons

1. Feed the three cables through the cylindrical guide of the
plastic panel (5) and the installation housing (1).
2. Press in the piezo buttons (64) with two mounted O-rings
(65) each up to the stop.
3. Tighten the hexagon nut of the cable gland.

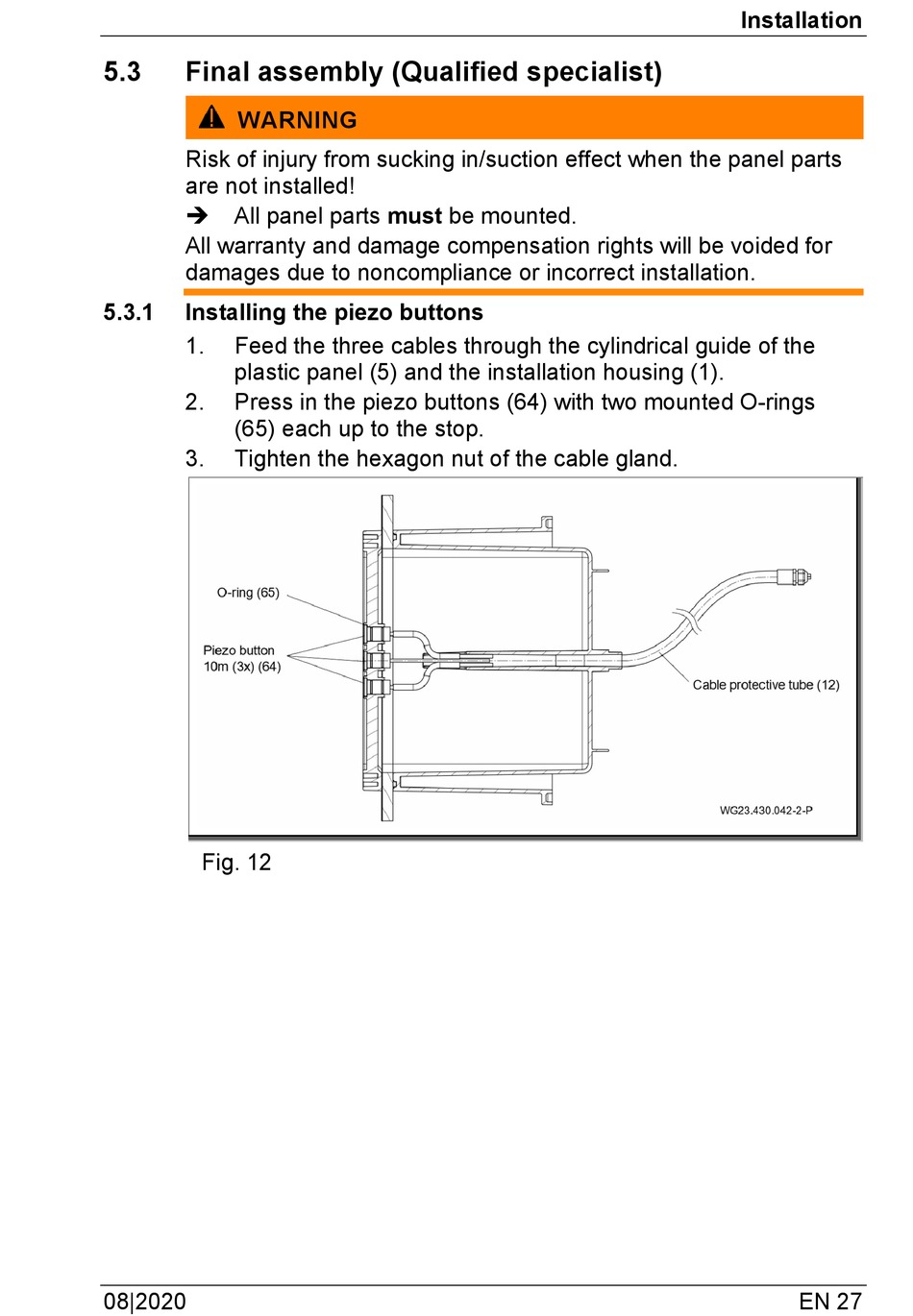

Fig. 12
