5.3.3

Fitting the cover panel

1. Clip the cover panel (52) labelled "Top" into the plastic panel
(5).
5.3.4

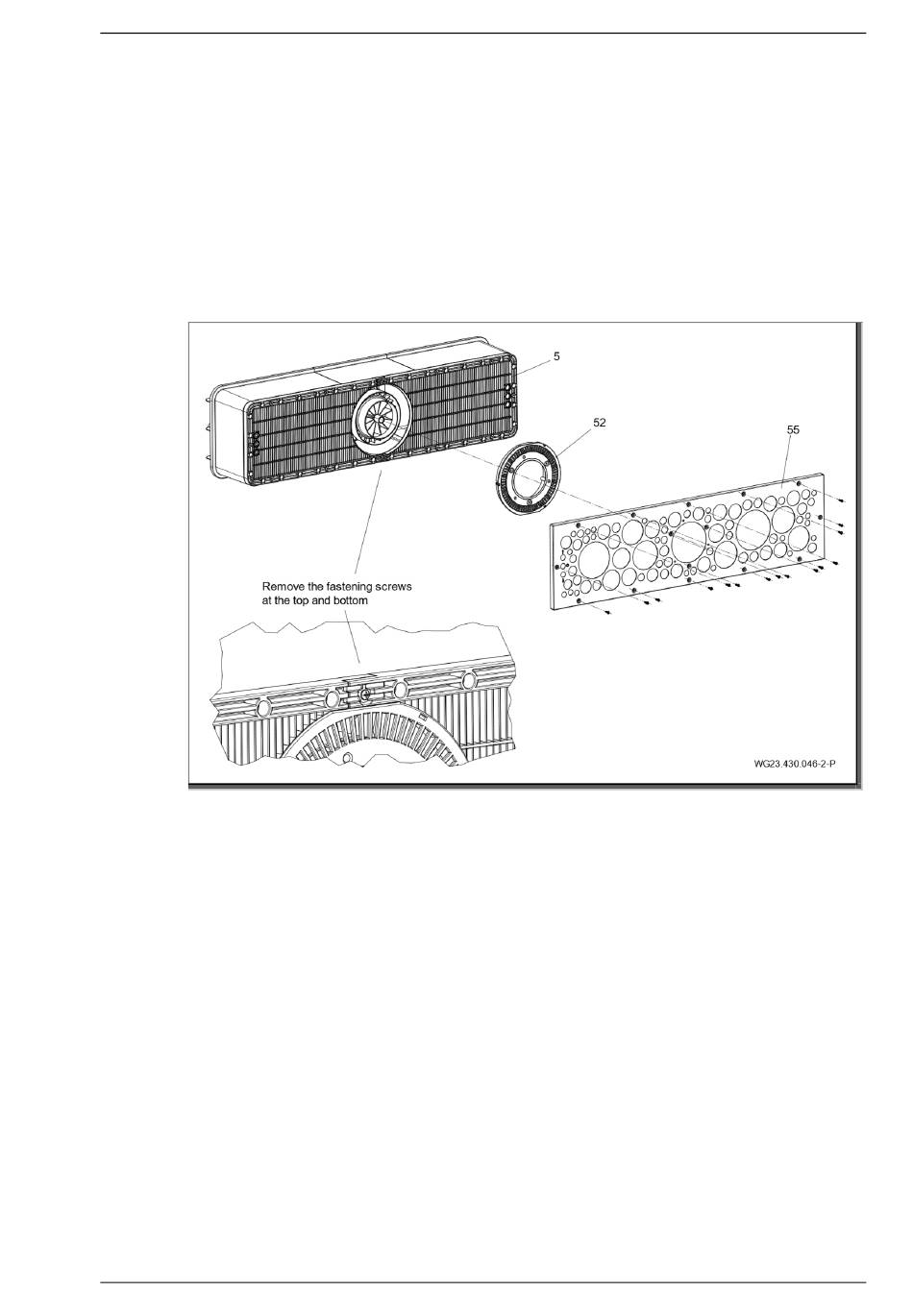

Installing the stainless steel panel

1. Remove two fastening screws (6 x 22) from the plastic panel
(5).
2. Align the stainless steel panel (55) to the plastic panel (5).
3. Tighten the 12 tapping screws 6 x 22 (56) with a torque of 6
Nm.
Fig. 14
5.3.5

Installing the drive unit

1. Pull the O-ring (36) onto the propeller unit (3).
2. Insert the propeller unit (3) centrally with the orientation pin in
6 o'clock position on the housing centring/flange centring.
3. Tighten 10 hexagon socket head tapping screws (7x48 (37))
with a torque of 8 Nm.
