The required height of the skirting board should meet your standard of aesthetics
as well as it should enable the door to open/close properly. You find the relevant
benchmarks on the schedule above.

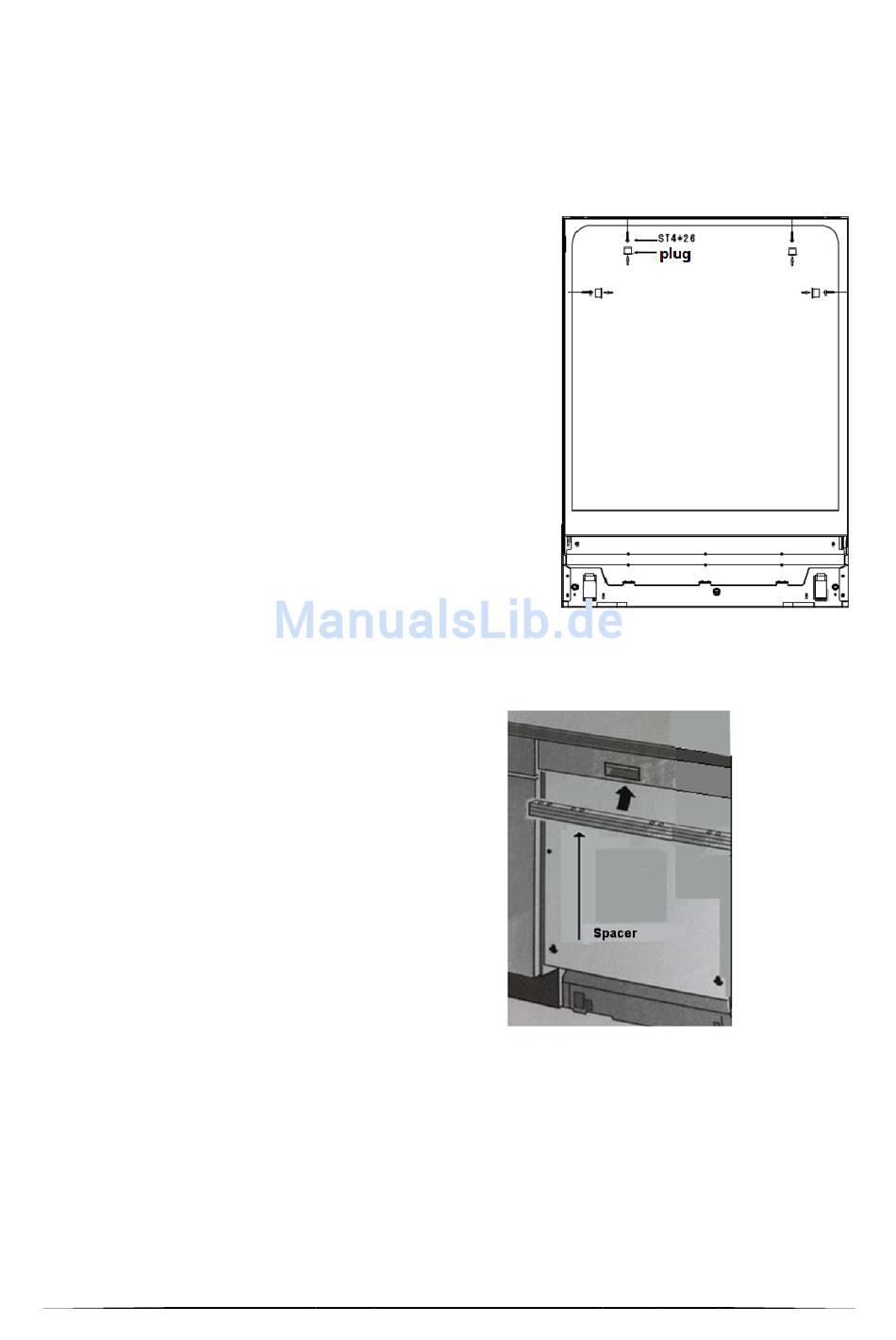

11. Fixing of the appliance
a. Fix the appliance on the built-in unit by
turning the screws.
b. Press the 4 plugs into the holes (look at
figure).
c. Use woodscrews ST* 4*26 (self-tapping
screws) for the left and right as well as for
the 4 top holes.
12. Fixing the top spacer
The top spacer has got several layers.
Customize the height of the spacer by
removing the relevant number of layers
from the bottom side of the spacer. Use
the click-mechanism for selecting the proper
number of layers.
