Pkm DW12A++7TI Bedienungsanleitung Seite 46

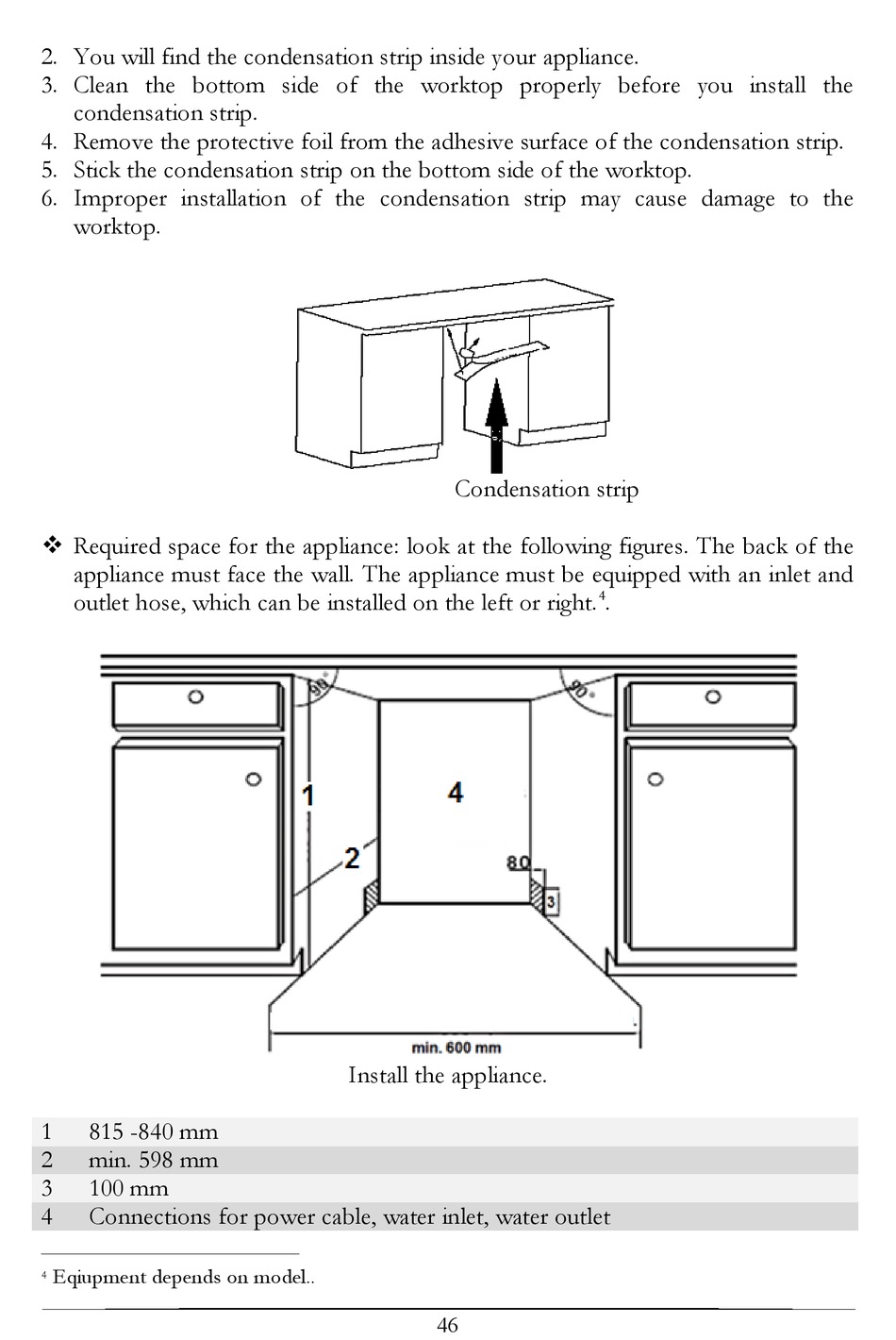

2. You will find the condensation strip inside your appliance.
3. Clean the bottom side of the worktop properly before you install the
condensation strip.
4. Remove the protective foil from the adhesive surface of the condensation strip.
5. Stick the condensation strip on the bottom side of the worktop.
6. Improper installation of the condensation strip may cause damage to the
worktop.
 Required space for the appliance: look at the following figures. The back of the
appliance must face the wall. The appliance must be equipped with an inlet and
outlet hose, which can be installed on the left or right.
1 815 -840 mm
2 min. 598 mm
3 100 mm
4 Connections for power cable, water inlet, water outlet
Eqiupment depends on model..
4
Condensation strip
Install the appliance.
46
4
.
