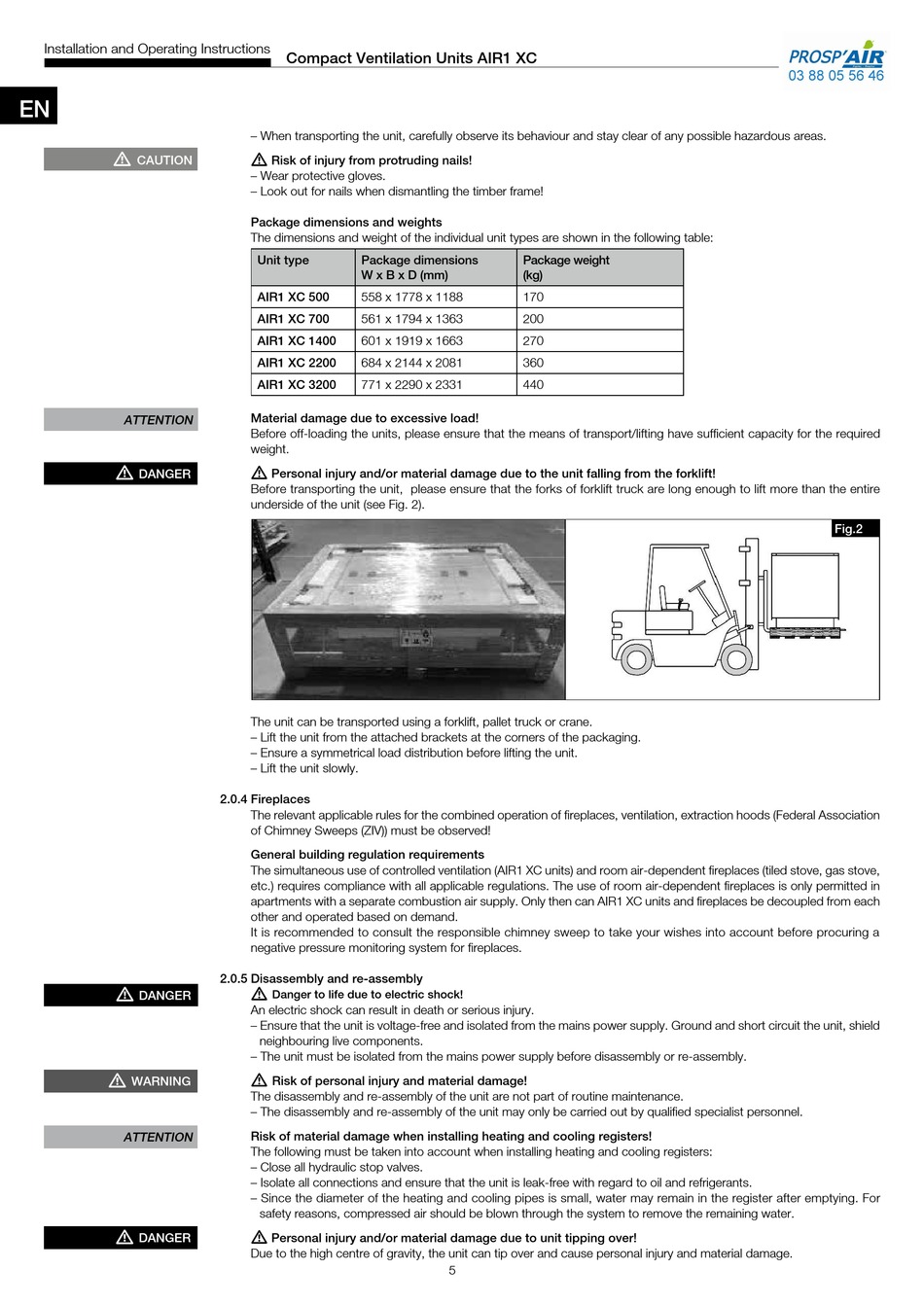

Compact Ventilation Units AIR1 XC
– When transporting the unit, carefully observe its behaviour and stay clear of any possible hazardous areas.
m
Risk of injury from protruding nails!
– Wear protective gloves.
– Look out for nails when dismantling the timber frame!
Package dimensions and weights
The dimensions and weight of the individual unit types are shown in the following table:
Unit type Package dimensions
W x B x D (mm)
AIR1 XC 500 558 x 1778 x 1188
AIR1 XC 700 561 x 1794 x 1363
601 x 1919 x 1663
AIR1 XC 1400
AIR1 XC 2200 684 x 2144 x 2081
AIR1 XC 3200 771 x 2290 x 2331
Material damage due to excessive load!
Before off-loading the units, please ensure that the means of transport/lifting have sufficient capacity for the required
weight.
m
Personal injury and/or material damage due to the unit falling from the forklift!
Before transporting the unit, please ensure that the forks of forklift truck are long enough to lift more than the entire
underside of the unit (see Fig. 2).
The unit can be transported using a forklift, pallet truck or crane.
– Lift the unit from the attached brackets at the corners of the packaging.
– Ensure a symmetrical load distribution before lifting the unit.
– Lift the unit slowly.

2 .0 .4 Fireplaces

The relevant applicable rules for the combined operation of fireplaces, ventilation, extraction hoods (Federal Association
of Chimney Sweeps (ZIV)) must be observed!
General building regulation requirements
The simultaneous use of controlled ventilation (AIR1 XC units) and room air-dependent fireplaces (tiled stove, gas stove,
etc.) requires compliance with all applicable regulations. The use of room air-dependent fireplaces is only permitted in
apartments with a separate combustion air supply. Only then can AIR1 XC units and fireplaces be decoupled from each
other and operated based on demand.
It is recommended to consult the responsible chimney sweep to take your wishes into account before procuring a
negative pressure monitoring system for fireplaces.

2 .0 .5 Disassembly and re-assembly

m
Danger to life due to electric shock!
An electric shock can result in death or serious injury.
– Ensure that the unit is voltage-free and isolated from the mains power supply. Ground and short circuit the unit, shield
neighbouring live components.
– The unit must be isolated from the mains power supply before disassembly or re-assembly.
m
Risk of personal injury and material damage!
The disassembly and re-assembly of the unit are not part of routine maintenance.
– The disassembly and re-assembly of the unit may only be carried out by qualified specialist personnel.
Risk of material damage when installing heating and cooling registers!
The following must be taken into account when installing heating and cooling registers:
– Close all hydraulic stop valves.
– Isolate all connections and ensure that the unit is leak-free with regard to oil and refrigerants.
– Since the diameter of the heating and cooling pipes is small, water may remain in the register after emptying. For
safety reasons, compressed air should be blown through the system to remove the remaining water.
m
Personal injury and/or material damage due to unit tipping over!
Due to the high centre of gravity, the unit can tip over and cause personal injury and material damage.
Package weight
(kg)
170
200
270
360
440
5
Fig .2
