SOSTITUZIONE RUOTE
TRASMISISONE

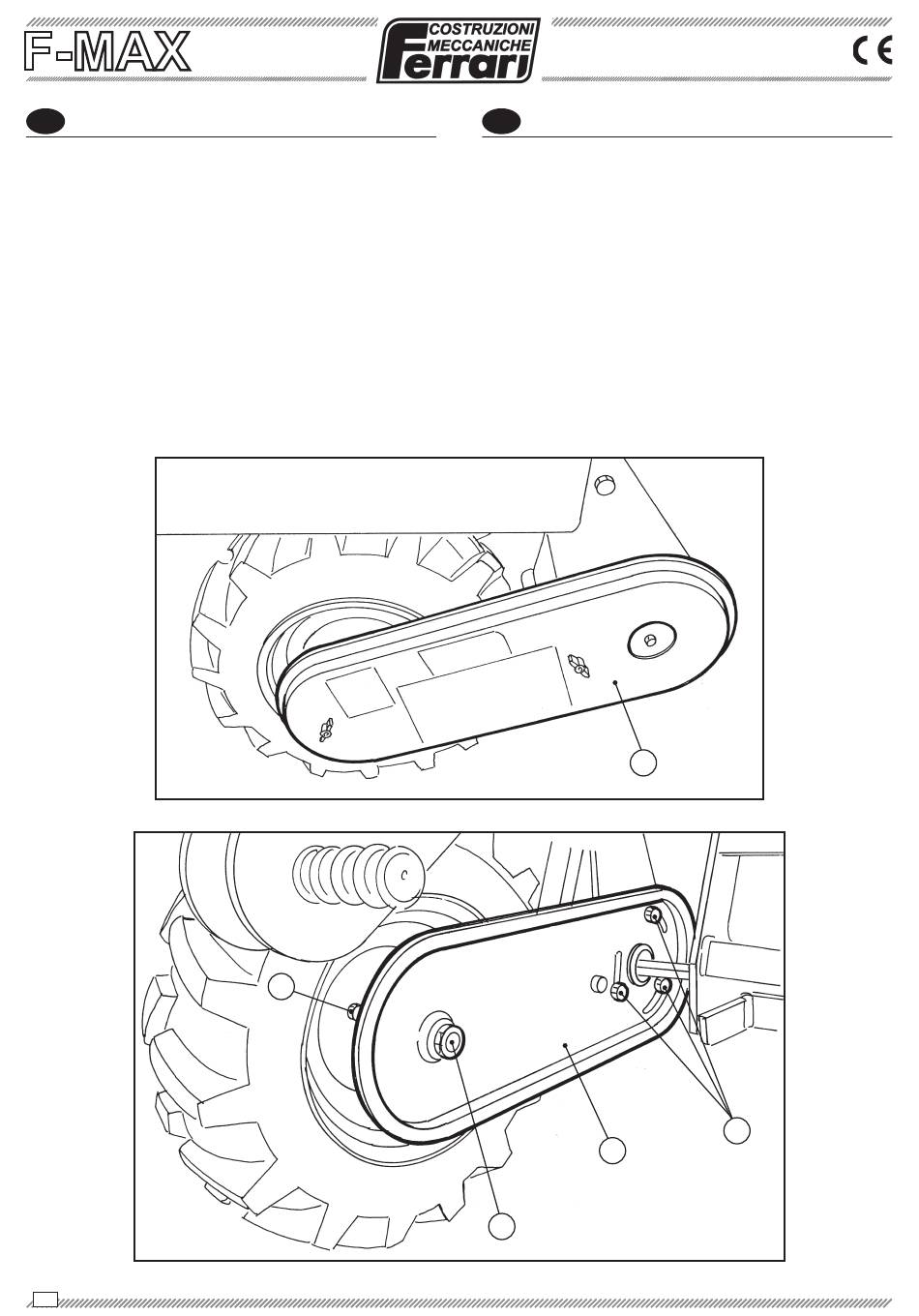

1) Togliere il carter (A).
2) Togliere i tre bulloni (B) allentando prima i contro-
dadi posti all'interno.
3) Togliere il dado (C).
4) Estrarre il carter (D).
5) Togliere i dadi ruota (E).
6) Estrarre le ruote (F).
Per il rimontaggio, seguire l'ordine inverso.
106
TRAPIANTATRICE TRAINATA
TOWED TRANSPLANTING MACHINE
GEZOGENE PFLANZMASCHINE
E
Manuale d'uso e manutenzione
Operating and service manual
Bedienungs- und Wartungshandbuch
Руководство по эксплуатации и техническому обслуживанию
EN
REPLACEMENT OF TRANSMISSION
WHEELS
1) Remove the casing (A).
2) Remove the three bolts (B) after having loosened
the internal locknuts.
3) Remove the nut (C).
4) Remove the casing (D).
5) Remove the wheel nuts (E).
6) Remove the wheels (F).
Follow the inverse order for remounting.
