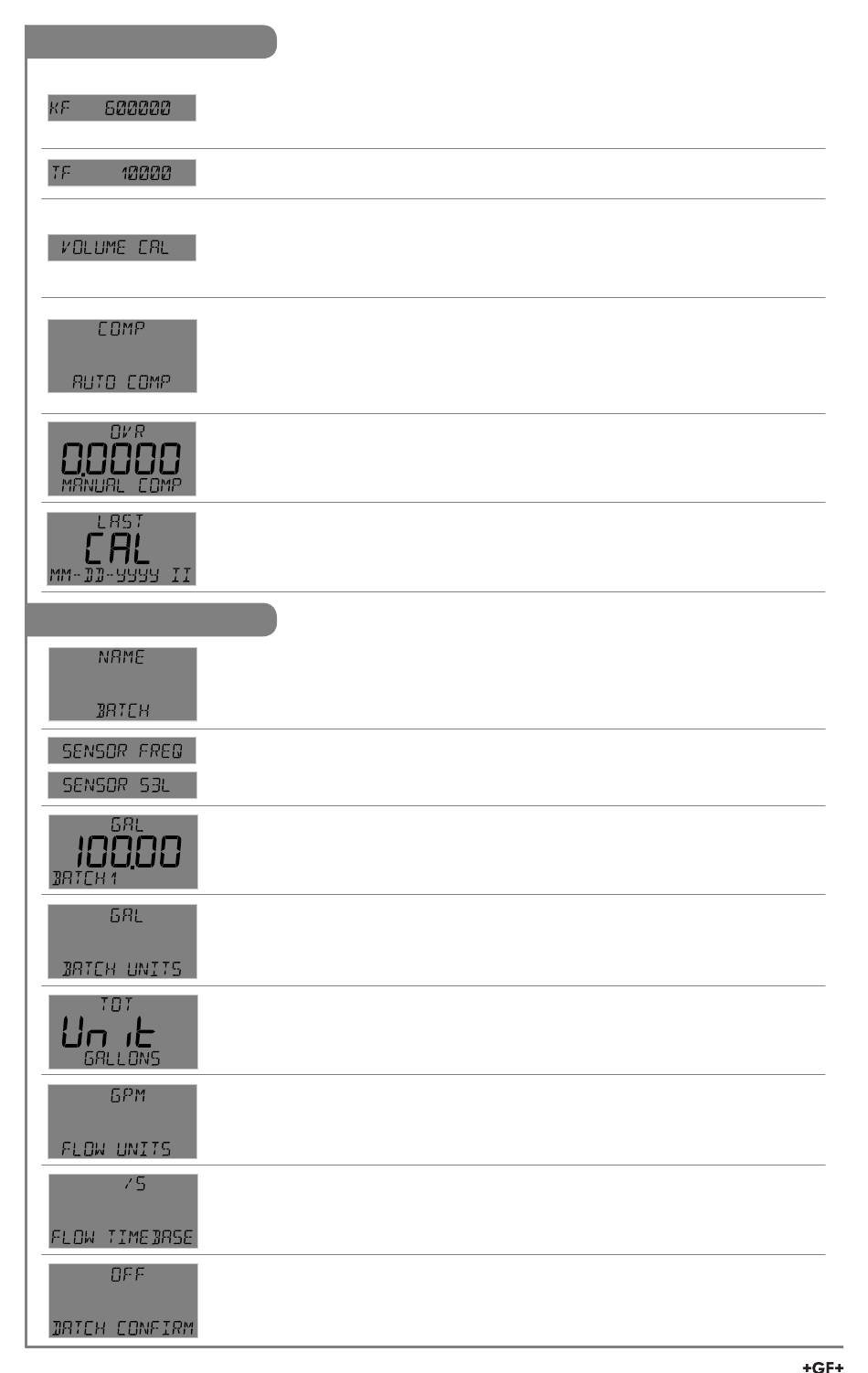

K- Factor Set K-Factor (pulses per unit volume) according to Flow Sensor manual.
Min: 0.0001, max: 999999. Cannot be zero. Default = 60.0000. In Simple Mode, the
K-Factor will be used for all batches. In Advanced Mode, there is one K-Factor for each
stored batch. See NOTE in Calibration section for Volume Calibration procedure.
T-Factor sets the volume of each count of the Totalizer as a multiple of the volume unit of
the K-Factor. Min: 0.0001, max 999999. Cannot be zero. Default = 1.0000.
Volume Calibration Enter the dispensed volume so the 9900 can calculate a K-Factor.
Refer to Volume Calibration section on page 24 for procedure.
Note: Relays and 4 to 20 mA output will be suspended while Volume Calibration is
performed, except for relays used for Batch or Two Stage modes. Relays in pulse mode
will suspend pulsing while Volume Calibration is being performed.
Select Overrun Compensation (ADVANCED Mode only) Automatic or Manual.
Automatic Overrun Compensation (ADVANCED Mode only) measures fl ow during
the batch cycle and any excess fl ow after the batch stops is considered an overrun.
The batch controller then automatically reduces the next batch size by the overrun value.
For the next batch the batch contact will de-energize early, closing the fl ow control valve
early and eliminating batch overrun.
Manual Overrun Compensation (ADVANCED Mode only) When Manual Compensation
is enabled, a batch will be stopped when the dispensed batch volume reaches an amount
equal to the batch size volume minus the Manual Overrun Compensation volume.
Calibration Date Enter date of calibration (mm-dd-yyyy) and initials of calibrator (ii).
Customize Label If desired, a custom name can be entered.
Enter 13-character string. Default = BATCH.
Freq or S 3 L If your fl ow sensor is confi gured for frequency output, select FREQ.
If confi gured for Digital (S
Batch Size Set batch size and batch name of up to ten stored batches. Setting
batch size to zero hides the batch in VIEW Mode. One batch must be non-zero.
Note: Same batch names can be assigned to multiple batches.
Batch Units Enter up to four characters to defi ne Batch Units. Default = GAL.
(Actual calculations are determined by the K-Factor).
Divide this unit by Flow Timebase to get Flow Units.
Totalizer Units Identifi es the Totalizer Units. It has no effect on any calculation.
Default = GALLONS.
Flow Units Identifi es the Flow Units. It has no effect on any calculation.
Flow Units equal Batch Units divided by Flow Timebase. Default = GPM.
Flow Timebase Select S (seconds), M (minutes), H (hours), or D (days).
Default = M
Batch Confi rmation Select Batch Confi rmation option.
Choose ON, OFF, or PWD (password). Default = OFF.
L) output (recommended), select S3L. Default = FREQ.
