Installation
System Start-up: Step 1
Prepare the Controller installation location. If the back of the
Controller is diffi cult to access when installed, wire the removable
terminal plugs fi rst, then attach to 9900 Transmitter.
Do not mount in direct sunlight.
Panel Mount Installation
Tools and Equipment Required
• Fine-tooth fi le
• ¼ DIN punch or jigsaw suitable for cutting panel
opening to within 1 mm (0.04 in) tolerance.
• ¼ DIN punches are available and recommended for
creating clean, precise openings quickly and easily in
most instrument panels.
• If a punch is not available, a jigsaw or other cutting
tool can be used. An adhesive template is provided to
help guide the cutting process. De-burr and smooth
the opening with a fi le.
Recommended clearance on all sides between instruments is 25 mm (1 in).
1. Place gasket on instrument, and install through ¼ DIN size opening.
2. Slide mounting bracket over back of instrument until bracket snaps into
latches on sides of instrument.
To remove:
1. Secure instrument temporarily with tape from front
or grip from rear of instrument. DO NOT RELEASE.
2. Press bracket clips outward and remove.
Field Mounting (Accessory Required)
The Panel Mount unit can be installed in the optional
Wall Mount Accessory (3-9900.392, 159 001 700),
for fi eld mount installation.
3
4
5
Next step: Wiring (Step 2).

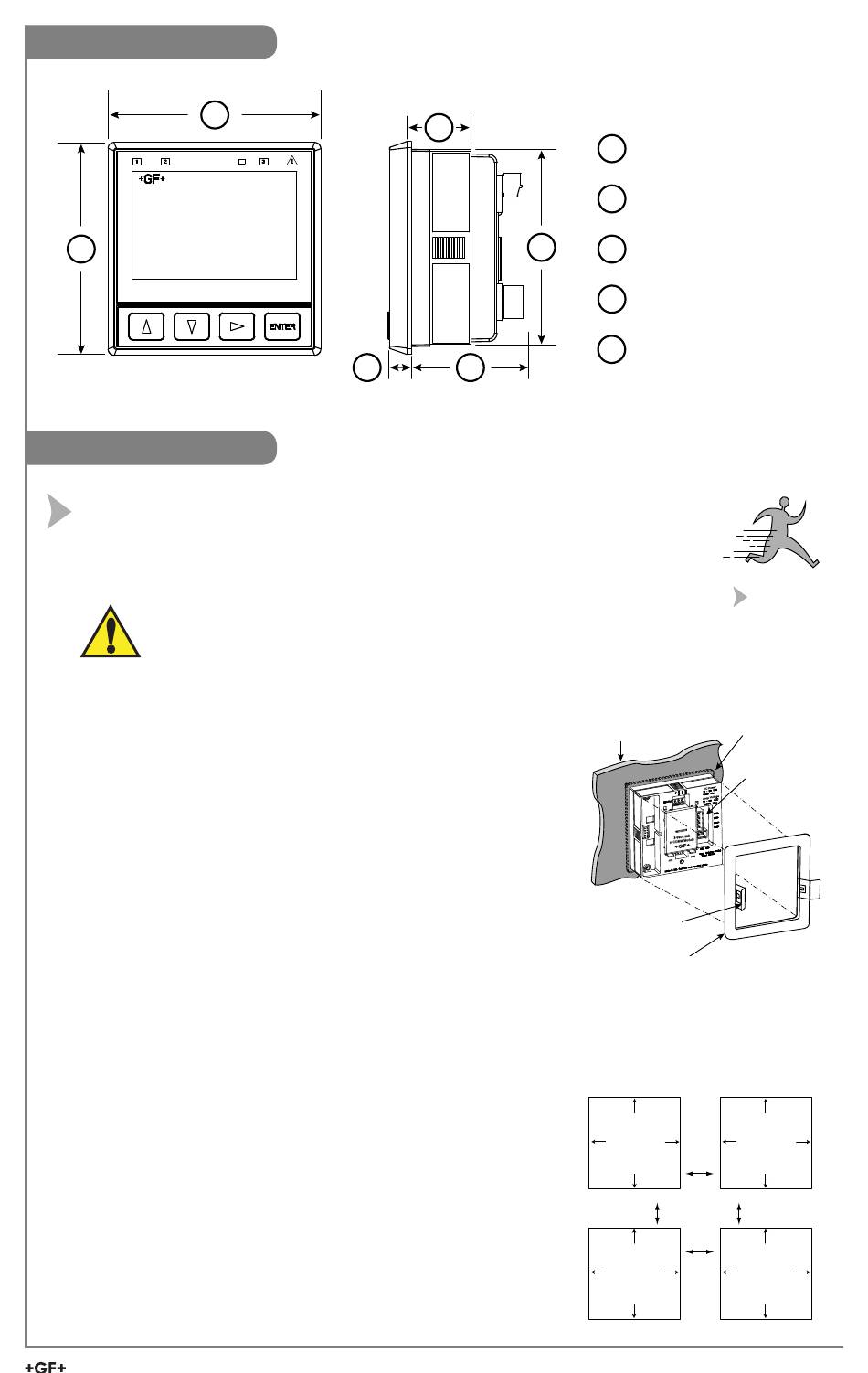

99.06 mm (3.90 in.)
1
91.44 mm (3.60 in.)
2
2
29.97 mm (1.18 in.)
3
8.13 mm (0.32 in.)
4
5
54.10 mm (2.13 in.)
panel
Quick-clip
mounting
Panel Cutout
92 x 92 mm
(+ 0.8, - 0 mm)
3.6 x 3.6 in.
(+0.031, -0 in.)
minimum
clearance
25 mm
(1 in.)
Panel Cutout
92 x 92 mm
(+ 0.8, - 0 mm)
3.6 x 3.6 in.
(+0.031, -0 in.)
9900-1BC Batch Controller Manual
gasket on
front side
of panel
plugs
Panel Cutout
92 x 92 mm
(+ 0.8, - 0 mm)
3.6 x 3.6 in.
(+0.031, -0 in.)
Panel Cutout
92 x 92 mm
(+ 0.8, - 0 mm)
3.6 x 3.6 in.
(+0.031, -0 in.)
