Menu System

VIEW Mode Overview
The top level of menus is referred to as the VIEW Mode.
This view displays measurement values as well as current
outputs and relay status. The radial bar graph represents the
measurement value that is also displayed in the 7-segment
numeric fi eld below the bar graph. The bar graph is primarily
used to display the full scale range of the sensor, but can be
scaled via a menu item.
During normal operation, the 9900 displays the VIEW mode.
● To select a display, press the ▲ or ▼ arrow keys.
The display selections scroll in a continuous loop.
● Changing the display selection does not interrupt system
operations.
● No password is necessary to change display selection.
● Output settings cannot be edited from the View Mode.
● The display will return to the VIEW mode if no button is
pressed for 10 minutes.
MENU Mode Overview
The MENU mode enables the user to view and confi gure all
menu items. The fi ve menus available are:
CAL, INPUT, LOOP, RELAY, and OPTION.
MENU Mode is entered by pressing and holding ENTER for
three seconds.
The ► button is used to change the position of the blinking
cursor. When the desired menu is blinking, press ENTER.
In the selected menu, use the ▲ and ▼ keys to navigate
through the menu. Use the ▲, ▼ and ► keys to edit the
selected item (see Menu Navigation discussion, page 24).
To save the new selection, press the ENTER key.
A message displaying "Saving..." will be displayed for 3
seconds. After this message is displayed, the newly selected
value will be displayed, if applicable.
Password Overview
The password is often required to start editing. Once entered
correctly, this password will not be needed for subsequent edits.
However, once the menu system is exited, the password will
again be required when edit mode is re-entered.
Your choice of password (STD or CODE) is selected in the
Options Mode.
STD: The standard (STD) password is ▲▲▲▼, pressed in
sequence. This password is designed to protect the 9900
from unintentional changes. It is best suited for systems
where a group of people need to be able to change settings.
CODE: The CODE default setting is 0000, adjustable to
any 4-digit numerical code up to 9999. Using a personal
code provides the maximum degree of security. This code
can be modifi ed in the Options mode.
Error Handling
Errors occurring
while in the VIEW
Mode show a specifi c
message (e.g.,
CHECK SENSOR).
This message is
displayed every 10
seconds and stays on
for 5 seconds. Once
the error is resolved
or cleared, the error
message stops.
Scrolling
In some cases, more
than one message or
measurement may
need to be displayed.
This is accomplished
by alternating the
message portions
across the screen.

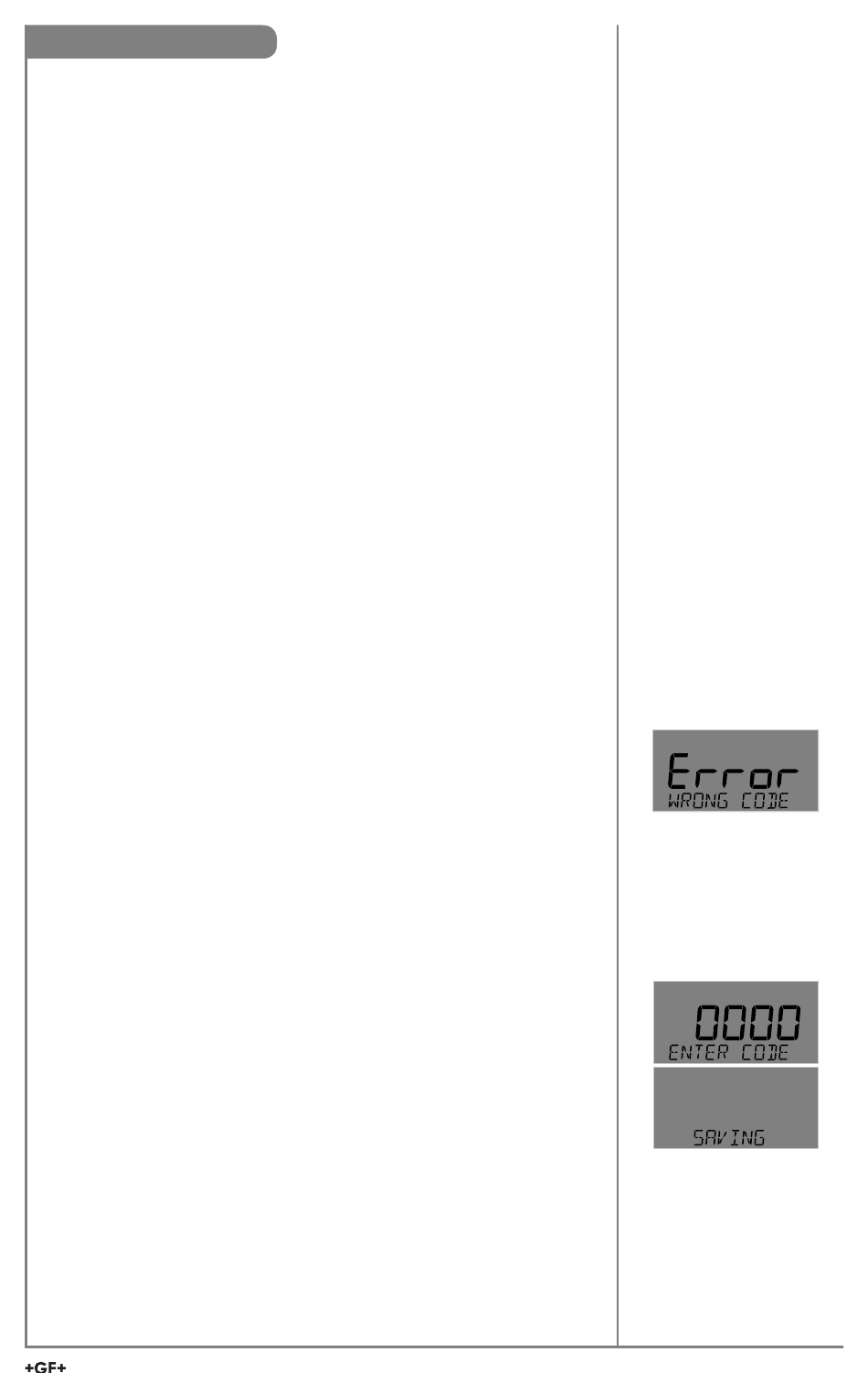

In the MENU mode,
if the wrong code or
password is entered,
an ERROR message
is displayed.
To change your CODE,
go to OPTIONS mode,
enter your desired code
and press ENTER.
(The STD password
cannot be changed.)
9900-1BC Batch Controller Manual 15
