7. Connect the pressure hose (11) from the top of the pump to the connector with the designation
"PUMP" at the 7-way valve. Secure all connections with hose clamps (figure 9).
5.2 Wall skimmer connection (figur 10)
1. Skimmers: Connection from skimmer to the front connector of the filter pump. The suction
hose, that leads the unclean water from the pool (pool skimmer) to the pump, should be mount-
ed on the pump inlet connection with a clamp.
2. Pressure line: Se section 5.1 paragraph 7 for mounting.
3. Return line: Mount the hose that lead the clean water back to the pool to the 7-ways valve
marked with "RETURN".
4. Backwash: Connect an adequate tube with the WASTE mouth when the backwash function is
desired so that dirty water can be drained out to a chosen site.
All tubes must be fastened with safety clamps.
Fill up the pool – make sure the water level covers about halfway
the suction mouth of the wall skimmer.
Page 36

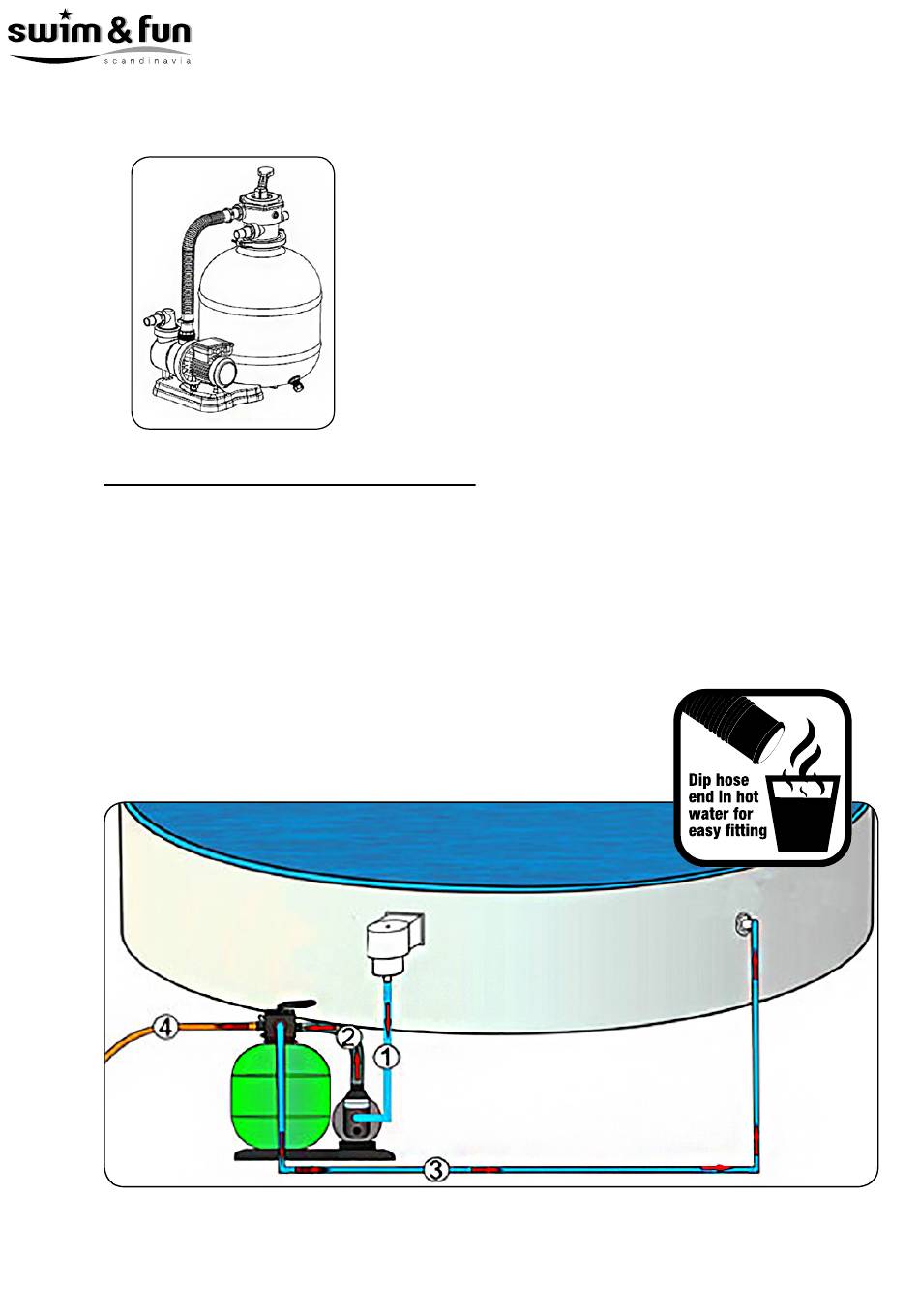

Figure 9
