4.

Parts

Assemble the filter system at the location where the pump finally will be (the subsequent transport
there would be too burdensome!).

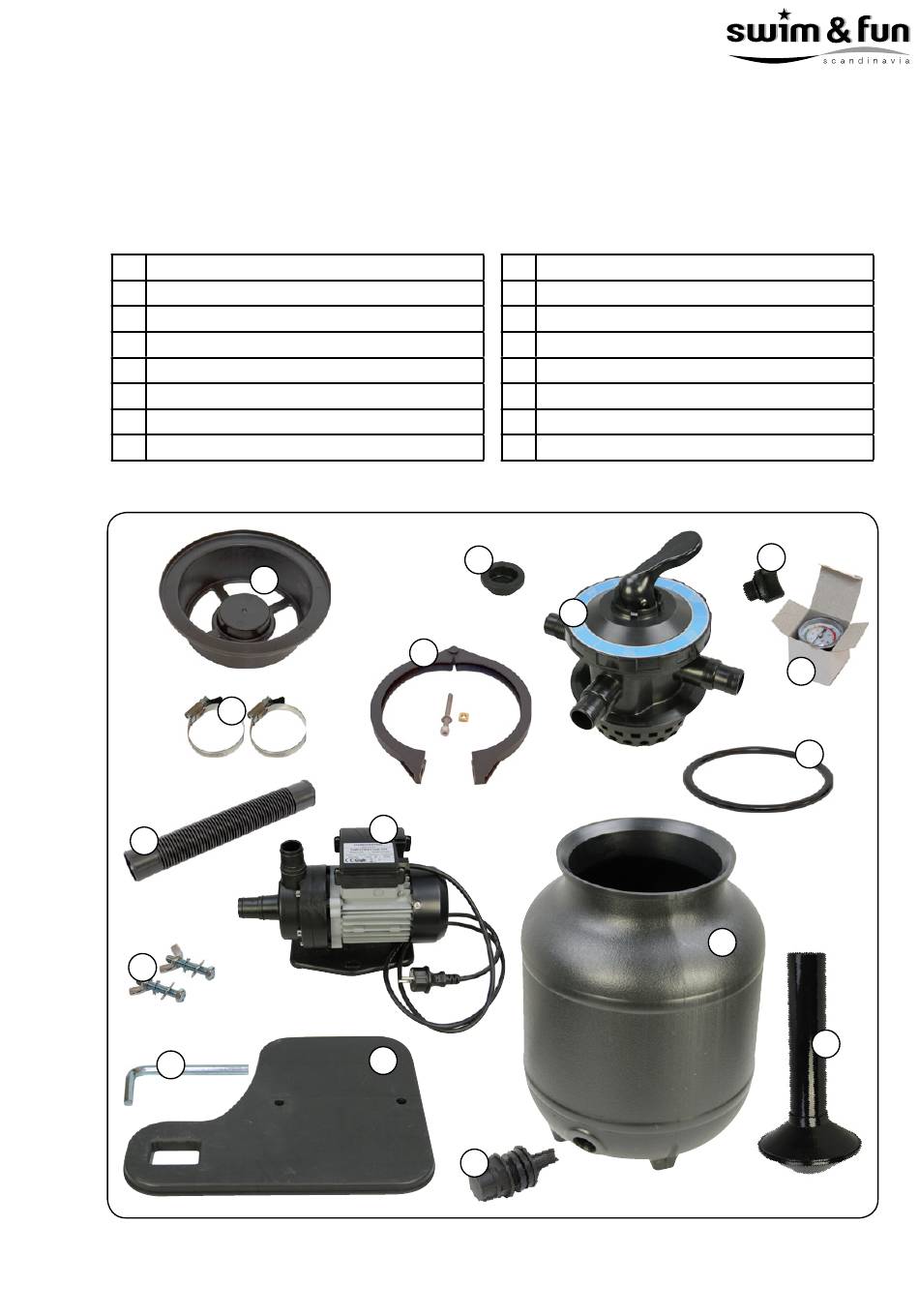

The filter pump consists of the following parts:
1 Pump
2 Valve
3 Seal (O-Ring)
4 Clamping ring
5 Vessel
6 Central pipe
7 Drain plug
8 Centralizer (cover for standpipe)
10
15
16
MV-1080-09-2016 . Swim & Fun Scandinavia . info@swim-fun.dk . www.swim-fun.com
© All rights reserved Swim & Fun Scandinavia ApS 2016
8
11
1
9
9 Base plate
10 Pressure hose
11 Hose clamps
12 Manometer
13 Plug for manometer in the valve
14 Plug for the "WASTE" drain in the valve
15 Screws
16 Allen
14
2
4
7
13
12
3
5
6
Figure 1
Page 33
