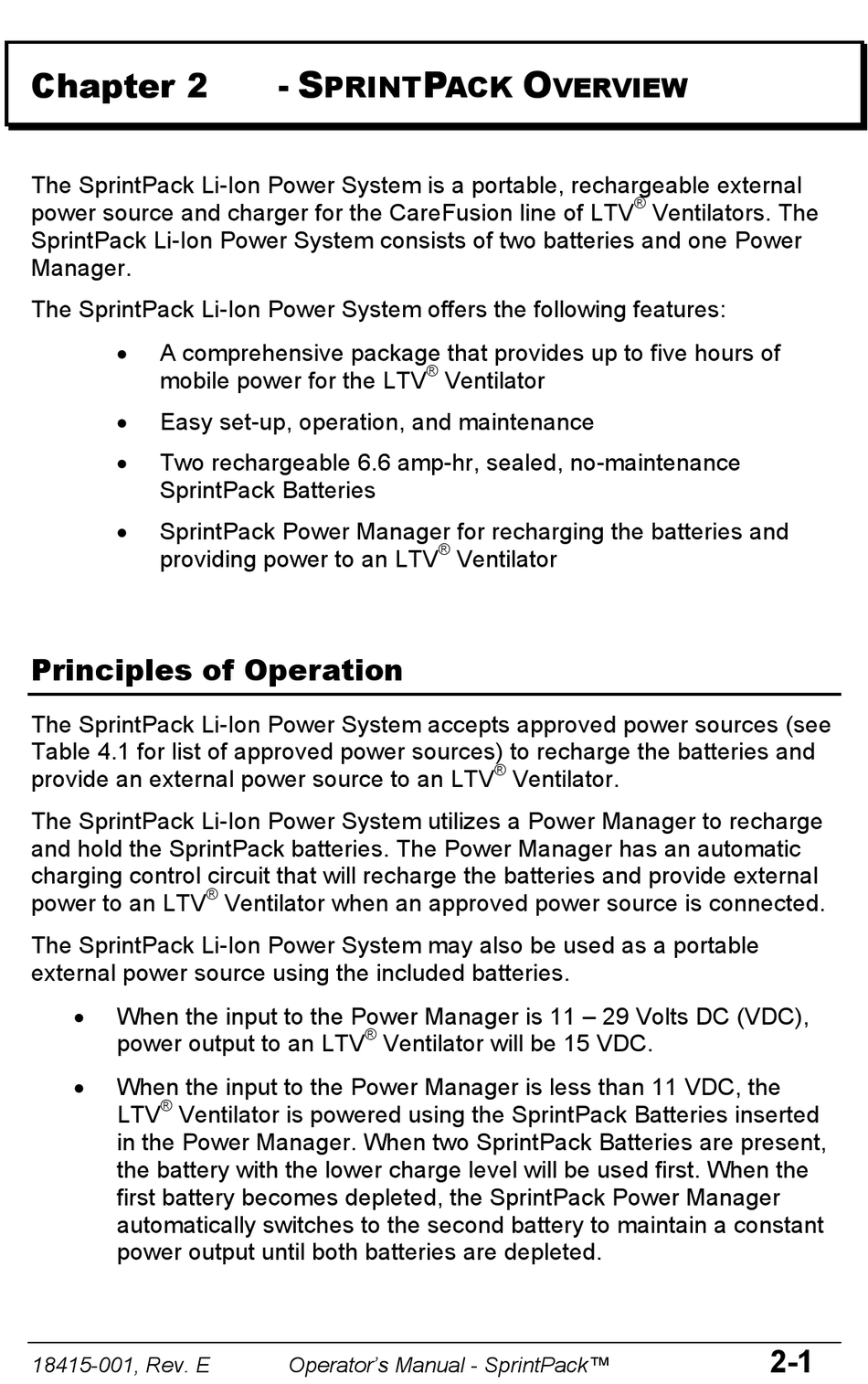

Chapter 2
The SprintPack Li-Ion Power System is a portable, rechargeable external
power source and charger for the CareFusion line of LTV
SprintPack Li-Ion Power System consists of two batteries and one Power
Manager.
The SprintPack Li-Ion Power System offers the following features:

A comprehensive package that provides up to five hours of
mobile power for the LTV

Easy set-up, operation, and maintenance

Two rechargeable 6.6 amp-hr, sealed, no-maintenance
SprintPack Batteries

SprintPack Power Manager for recharging the batteries and
providing power to an LTV

Principles of Operation

The SprintPack Li-Ion Power System accepts approved power sources (see
Table 4.1 for list of approved power sources) to recharge the batteries and
provide an external power source to an LTV
The SprintPack Li-Ion Power System utilizes a Power Manager to recharge
and hold the SprintPack batteries. The Power Manager has an automatic
charging control circuit that will recharge the batteries and provide external
power to an LTV
The SprintPack Li-Ion Power System may also be used as a portable
external power source using the included batteries.

When the input to the Power Manager is 11 – 29 Volts DC (VDC),
power output to an LTV

When the input to the Power Manager is less than 11 VDC, the
®
LTV Ventilator is powered using the SprintPack Batteries inserted
in the Power Manager. When two SprintPack Batteries are present,
the battery with the lower charge level will be used first. When the
first battery becomes depleted, the SprintPack Power Manager
automatically switches to the second battery to maintain a constant
power output until both batteries are depleted.
18415-001, Rev. E
S
-
PRINT
®
Ventilator when an approved power source is connected.
®
Operator's Manual - SprintPack™
P O
ACK
®
Ventilator
®
Ventilator
®
Ventilator.
Ventilator will be 15 VDC.
VERVIEW
®
Ventilators. The
2-1
