6.2. LNB configuration

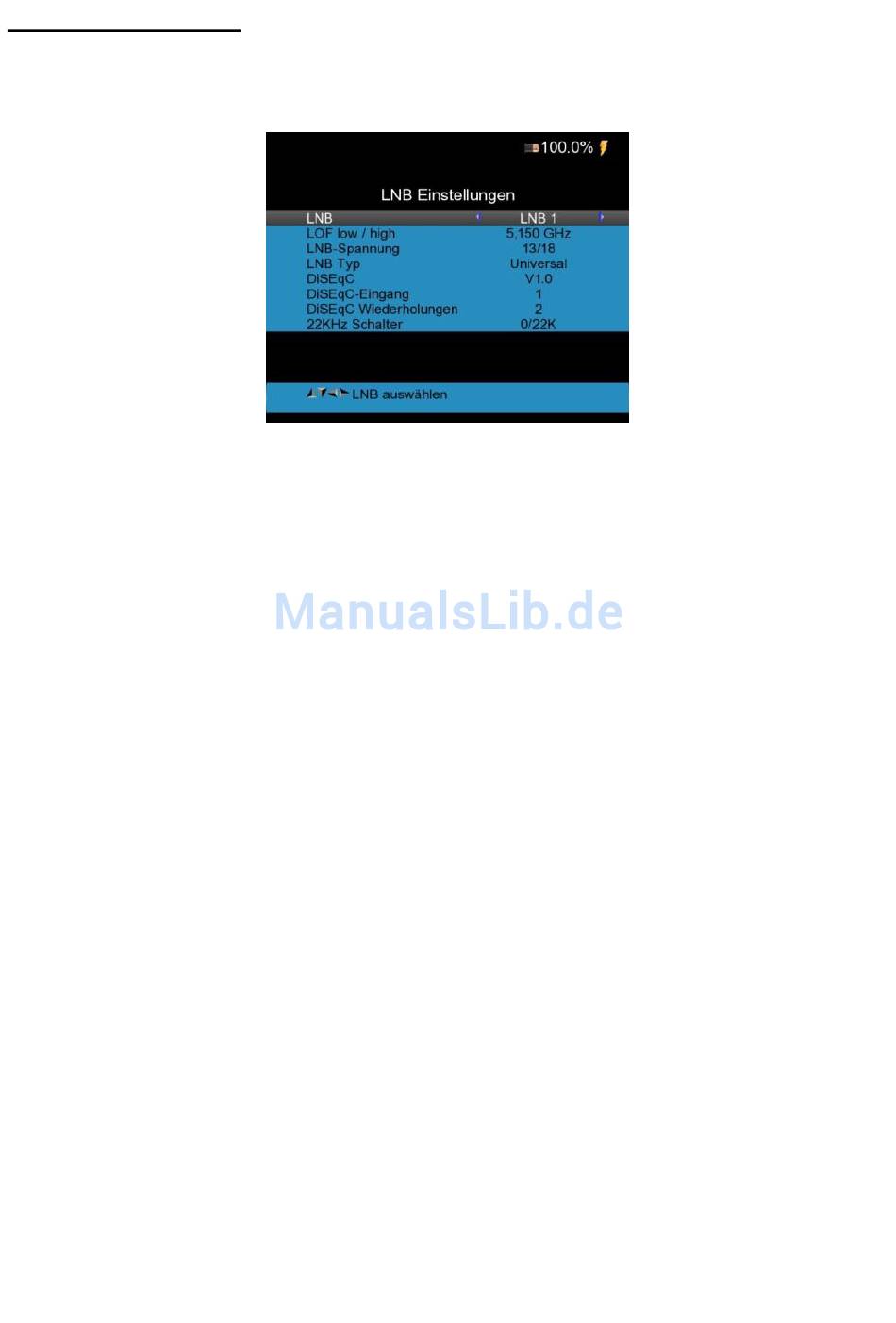

To make the LNB settings for the satellite search, select the top menu item in the main
menu. The following menu is displayed:
1. LNB: You can set 16 different LNBs with different setups. Select the desired LNB
with the ◄Left/ Right► arrow keys.
L.O. Frequency: Select the correct LNB frequency with the ◄Left/ Right► arrow
2.
keys.
LNB Power: Select the correct LNB voltage with the ◄Left/ Right► arrow keys.
3.
LNB Type: Select the correct LNB type (Universal, Unicable...) with the ◄Left/
4.
Right► arrow keys.
5. DiSEqC: If your system features DiSEqC, select this from the following options:
OFF, 1.0, 1.1
DiSEqC Input: Select DiSEqC at the correct input with the ◄Left/ Right► arrow
6.
keys (1 ~ 4).
7. DISEqC Repeat: Number of repetitions of the DiSEqC commands (0 ~ 3)
22 KHz switch: Select the 22kHz switching with the ◄Left/ Right► arrow keys.
8.
-47-
