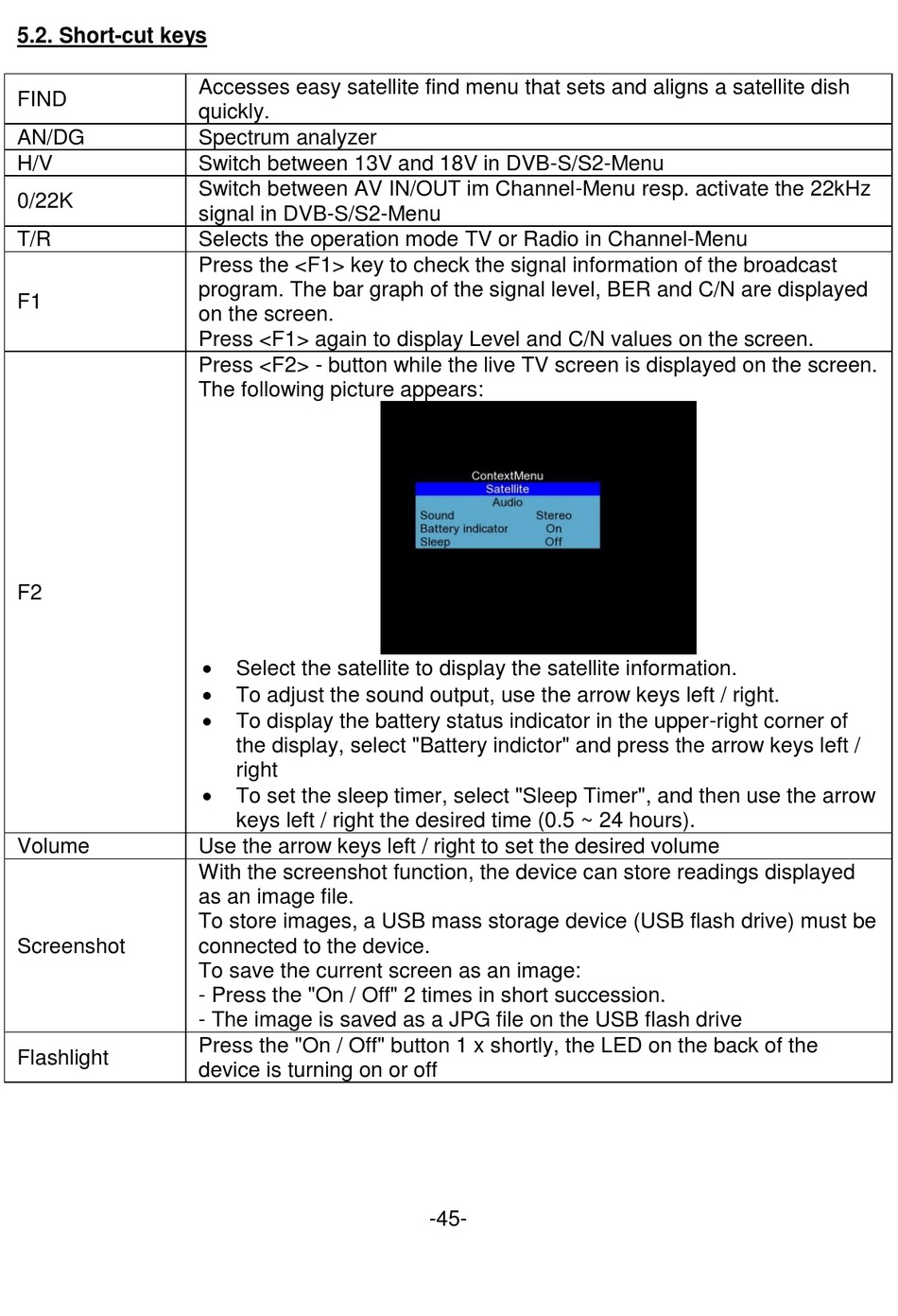

5.2. Short-cut keys

FIND
AN/DG
H/V
0/22K
T/R
F1
F2
Volume
Screenshot
Flashlight
Accesses easy satellite find menu that sets and aligns a satellite dish
quickly.
Spectrum analyzer
Switch between 13V and 18V in DVB-S/S2-Menu
Switch between AV IN/OUT im Channel-Menu resp. activate the 22kHz
signal in DVB-S/S2-Menu
Selects the operation mode TV or Radio in Channel-Menu
Press the <F1> key to check the signal information of the broadcast
program. The bar graph of the signal level, BER and C/N are displayed
on the screen.
Press <F1> again to display Level and C/N values on the screen.
Press <F2> - button while the live TV screen is displayed on the screen.
The following picture appears:

Select the satellite to display the satellite information.

To adjust the sound output, use the arrow keys left / right.

To display the battery status indicator in the upper-right corner of
the display, select "Battery indictor" and press the arrow keys left /
right

To set the sleep timer, select "Sleep Timer", and then use the arrow
keys left / right the desired time (0.5 ~ 24 hours).
Use the arrow keys left / right to set the desired volume
With the screenshot function, the device can store readings displayed
as an image file.
To store images, a USB mass storage device (USB flash drive) must be
connected to the device.
To save the current screen as an image:
- Press the "On / Off" 2 times in short succession.
- The image is saved as a JPG file on the USB flash drive
Press the "On / Off" button 1 x shortly, the LED on the back of the
device is turning on or off
-45-
