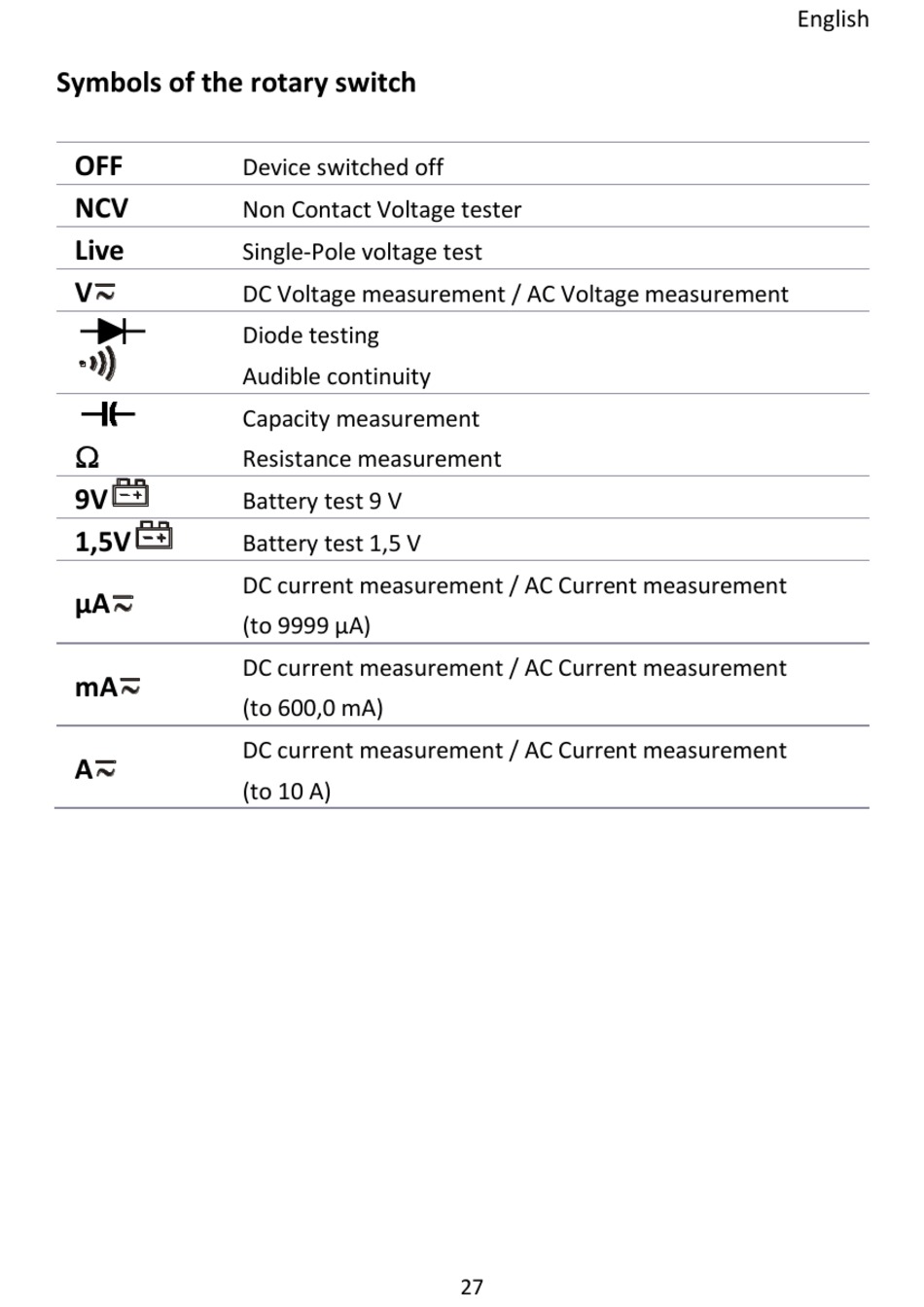

Symbols of the rotary switch
OFF
NCV
Live
V

9V
1,5V
µA
mA
A
Device switched off
Non Contact Voltage tester
Single-Pole voltage test
DC Voltage measurement / AC Voltage measurement
Diode testing
Audible continuity
Capacity measurement
Resistance measurement
Battery test 9 V
Battery test 1,5 V
DC current measurement / AC Current measurement
(to 9999 µA)
DC current measurement / AC Current measurement
(to 600,0 mA)
DC current measurement / AC Current measurement
(to 10 A)
