Model assembly

Wing installation

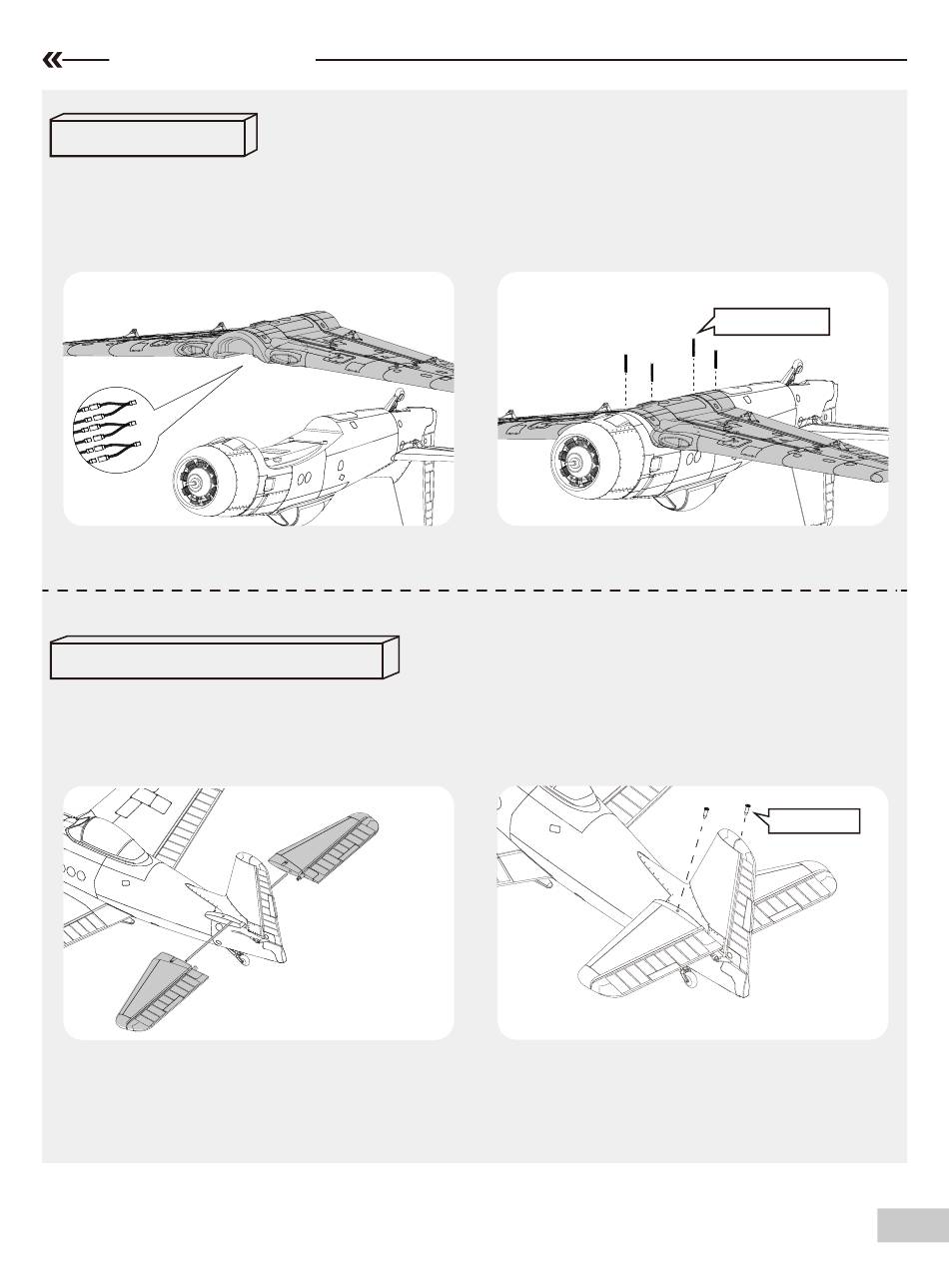

1.Using the three included Y-harnesses, connect the two retract leads, two aileron leads and two flap leads. Insert all
leads on the wing into the fuselage via the fuselage passthrough. Attach the wing onto the fuselage and ensure that
the wires do not interfere with any of the servos.
2.Secure the wing to the fuselage with included screws as shown. Do not over tighten the screws.
Horizontal stabilizer installation
1.Slide the horizontal stabilizer spar into the slot near the rear of the fuselage.
2.Install the two pieces (left and right) horizontal stabilizer as shown. Ensure the control horn faces down.
3.Secure the two horizontal stabilizer pieces in placing using the included screws.
HKM3.0*20 mm
KA2.6*12mm
