Preflight check
transmitter and model setup

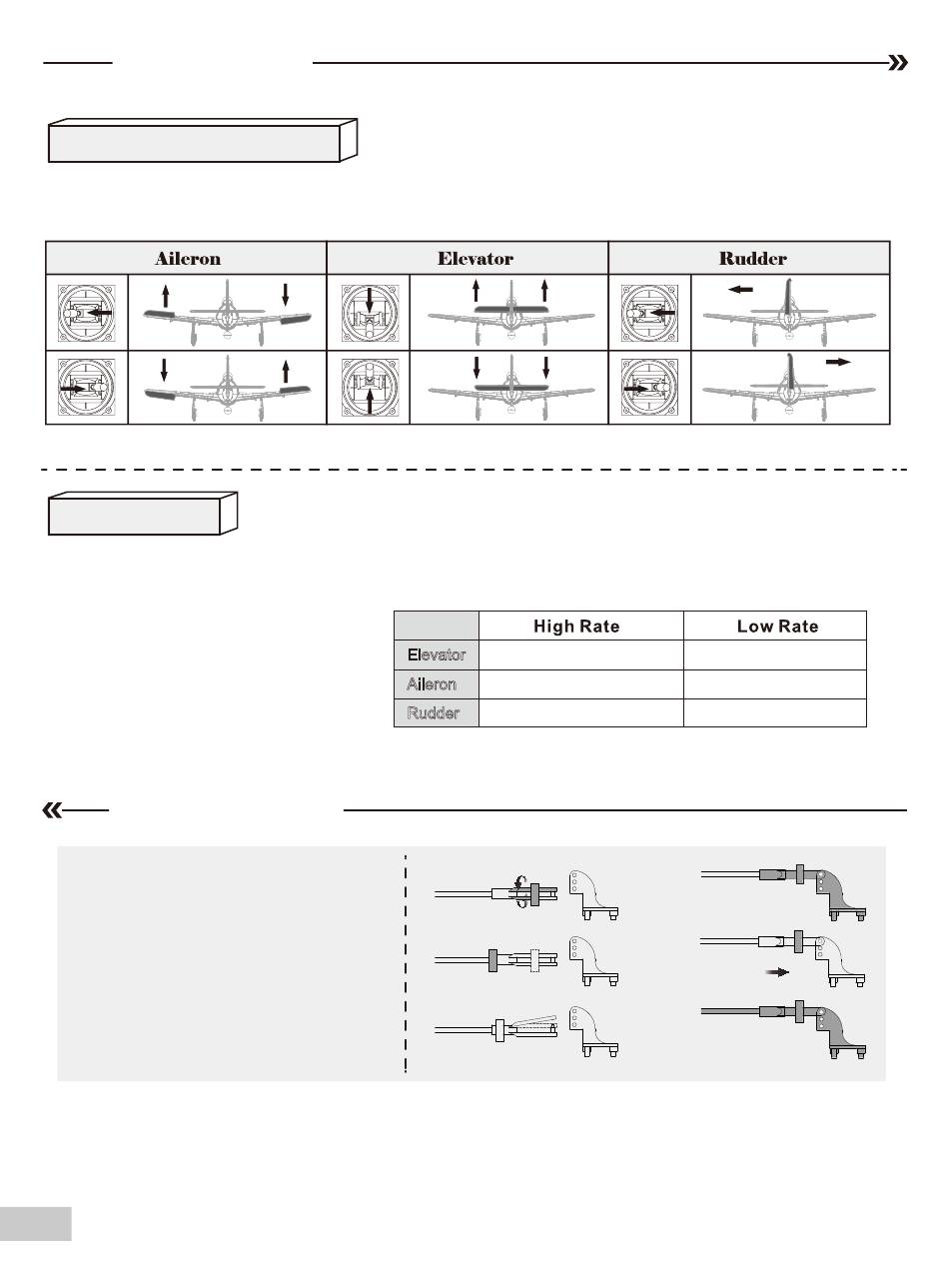

After assembly and prior to your first flight, make sure all control surfaces respond correctly to your transmitter by referring
to the diagram below.

Control throws

The suggested control throw setting for the F8F are as follows (dual rate setting):
Tip: The maiden flight should always be
flown using low rates, fly the aircraft until you
are familiar with its characteristics prior to
trying high rates. Make sure the aircraft is
flying at a decent altitude and speed prior to
using high rates, as the aircraft will be sensi-
tive to control inputs with the larger control
surface movements.

Clevis installation

1.Pull the tube from the clevis to the linkage.
2.Carefully spread the clevis, then insert the
clevis pin into the desired hole in the control
horn.
3.Move the tube to hold the clevis on the
control horn.
07
Elevator 12mm up / down
18mm up / down
Aileron
Rudder 20mm left / right
a.
b.
c.
8mm up / down
14mm up / down
16mm left / right
d.
e.
f.
