Controller Description
The integrated controller is a solid-state frequency
converter which is driven by a single chip micro-
computer and is composed of a PCB which in-
cludes a power supply with a 3-phase AC output,
analog and input/output section, microprocessor
and digital section. The controller recognizes the
mains presence and converts the single phase AC
mains supply into a 3-phase, medium frequency
output which is required to power the pump.
The controller can be operated by a remote host
computer via the serial connection.
Diaphragm Forepump Description
The pump consists of an electric DC motor driving
an eccentric which moves an elastic diaphragm.
The pump has four heads.
The compression chamber is hermetically sepa-
rated from the drive mechanism by means of the
diaphragm.
The pump transfers, evacuates and compresses
completely oil-free.
The motor is supplied with a voltage of 24 Vdc.
NOTE
A diaphragm pump cleaning from the humidity is
recommended to improve the system performance
using dry air or nitrogen. It is recommended to
open manually the vent valve after every start
command for about 30 seconds.
Control Panel Description

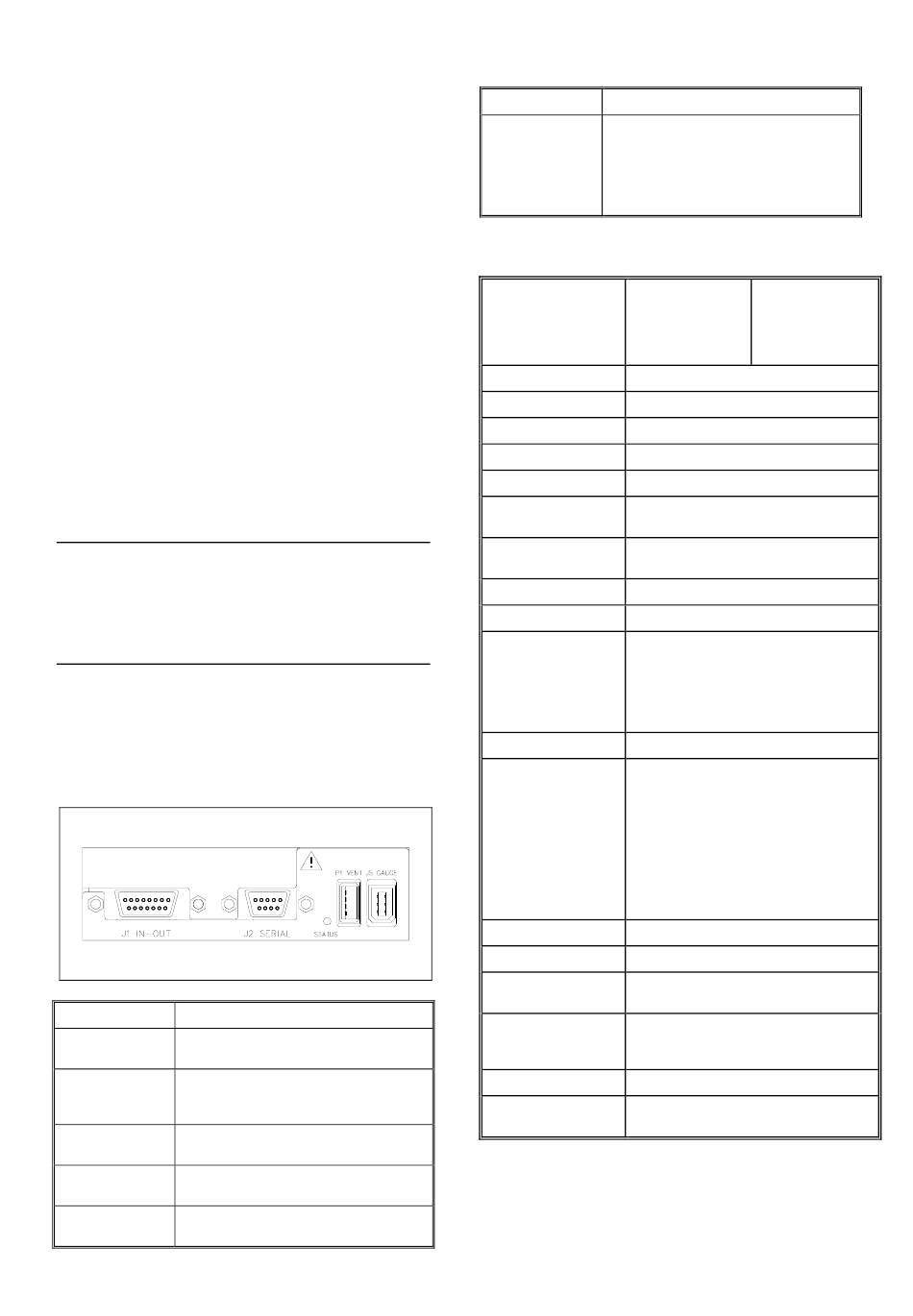

The following picture shows the Mini-TASK AG81
control panel; the associated table lists the avail-
able commands. For a detailed description see the
following paragraphs.
CONTROL NAME
J1 IN-OUT
Input-output connector to remote control
the Mini-TASK AG81
J2 SERIAL
Serial input-output connector to control
the Mini-TASK AG81 via an RS 232 or
RS 485 connection
STATUS
Blue LED to show the system operating
condition
P1 VENT
Connector to control the optional vent
valve
J5 GAUGE
Connector to control external EyeSys
Gauge
DESCRIPTION
70/84
TECHNICAL INFORMATION
CONTROL NAME
ON-OFF red
It is located on the other side of the sys-
switch with inte-
tem (with respect to the illustrated control
grated light
panel). It is the power supply switch. The
(not shown in the
integrated red light shows the power
picture)
supply status: it lights when the power
supply is applied to the Mini-TASK AG81
TECHNICAL SPECIFICATION
Pumping speed (l/s)
With CF 4.5" or
Base pressure*
5 x 10
Inlet flange
CF 4.5" O.D.; ISO63; KF 40 NW
Rotational speed
80000 RPM
Start-up time
< 2 minutes
Operating position
any
Operating ambient
+ 5° C to + 35° C
temperature
Bakeout
120° C at inlet flange max. (CF flange)
temperature
80° C at inlet flange max. (ISO flange)
Noise level
55 dB (A) at 1 meter
Lubricant
permanent lubrication
Power supply
(Line type):
Input voltage:
100 – 240 Vac
Input frequency:
50 – 60 Hz
Max input power:
220 VA
Stand-by power:
10 W
Protection fuse
2.5 A
Compliance with:
UNI EN 292-1
UNI EN 292-2
EN 55011 (Class A Group 1)
EN 61000/3/2
EN 61000/3/3
EN 61000/4/2
EN 61000/4/3
EN 61000/4/4
EN 61010-1
EN 1012-2
Installation category
II
Pollution degree
2
Power cable
With European, USA or UK plug
2 meters long
Serial communica-
RS232 cable with a 9-pin D type male
tion (kit)
connector and a 9-pin D type female
connector, and software (optional)
Storage temperature
- 20° C to + 70° C
Weight kg (lbs)
ISO and KF: 7.5 (16)
CFF: 8.3 (18)
* According to standard DIN 28 428, the base pressure
is that measured in a leak-free test dome, 48 hours after
the completion of test dome bake-out, with a Turbopump
fitted with a ConFlat flange.
DESCRIPTION
With
ISO 63:
KF 40 NW:
N
: 60 l/s
N
: 40 l/s
2
2
He: 55 l/s
He: 45 l/s
H
: 40 l/s
H
: 36 l/s
2
2
-8
-8
mbar (3.75 x 10
Torr)
87-901-003-01(A)
