Colour touch-screen display with easy-to-use icons
2- resp. 4-channel control for individual control of all types of
sunshade devices
Easy to use and configure thanks to automatic sensor recognition
and help features
Floating group outputs for operating decentralised controls
Connection options:
M 2C-Versions: 2 × wind-, 4 × Lux-, 1 × rain-, 2 × temperature
sensors and a radio-controlled clock to the control box
XL 4C-Versions: 2 × wind-, 8 × Lux-, 1 × rain-, 2 × temperature
sensors and a radio-controlled clock to the control box
Display box with integrated temperature sensor
Wind, sun, rain and temperature functions and sensors can
be individually set on each channel
Option of connecting external Up/Down buttons and a maintenance
switch
Option of connecting an floating channel for a fire alarm system
Motor run time/tilting time can be individually set
Control and display box communicate via (868 MHz) radio version RC
or 4-wire cable (4 × 0.8 mm
2
) RS 485 version Wired
WARNING!
Ä
Risk of injury due to improper installation and commissioning.
Improper installation and commissioning may lead to personal
injury or property damage.
Therefore:
– When connecting the device, observe the currently valid VDE
standards (in particular DIN VDE 0100/0700), your local power
company's regulations and the current accident prevention
regulations.
– Connect the control in accordance with the wiring diagram.
1. Switch off the power supply.
2. Unscrew the housing cover, take off the housing cover of the control box
and mount the housing at the outer four drill holes in the corners. The
housing must be mounted such that the cable glands are located under-
neath. The control box must be mounted in a position that is well pro-
tected from direct sunlight.
3. Feed the cables through the bottom cable inlets in the housing and tighten
the inlet. Unused cable inlets must be sealed.
4. Connect the cables in accordance with the wiring diagram.
i
NOTE!
Mount the control device so that it is inaccessible to adults, children
and animals. All cables must be permanently wired.
5. The output is floating (important for operating decentralised controls).
6. If one or more motors (230VAC, 50 Hz) resp. isolating relays are directly
connected, a jumper must be fitted between terminal Common of the
motor output and terminal L of the mains connection.
7. Replace the housing cover and tighten the housing cover screws.
© Vestamatic GmbH

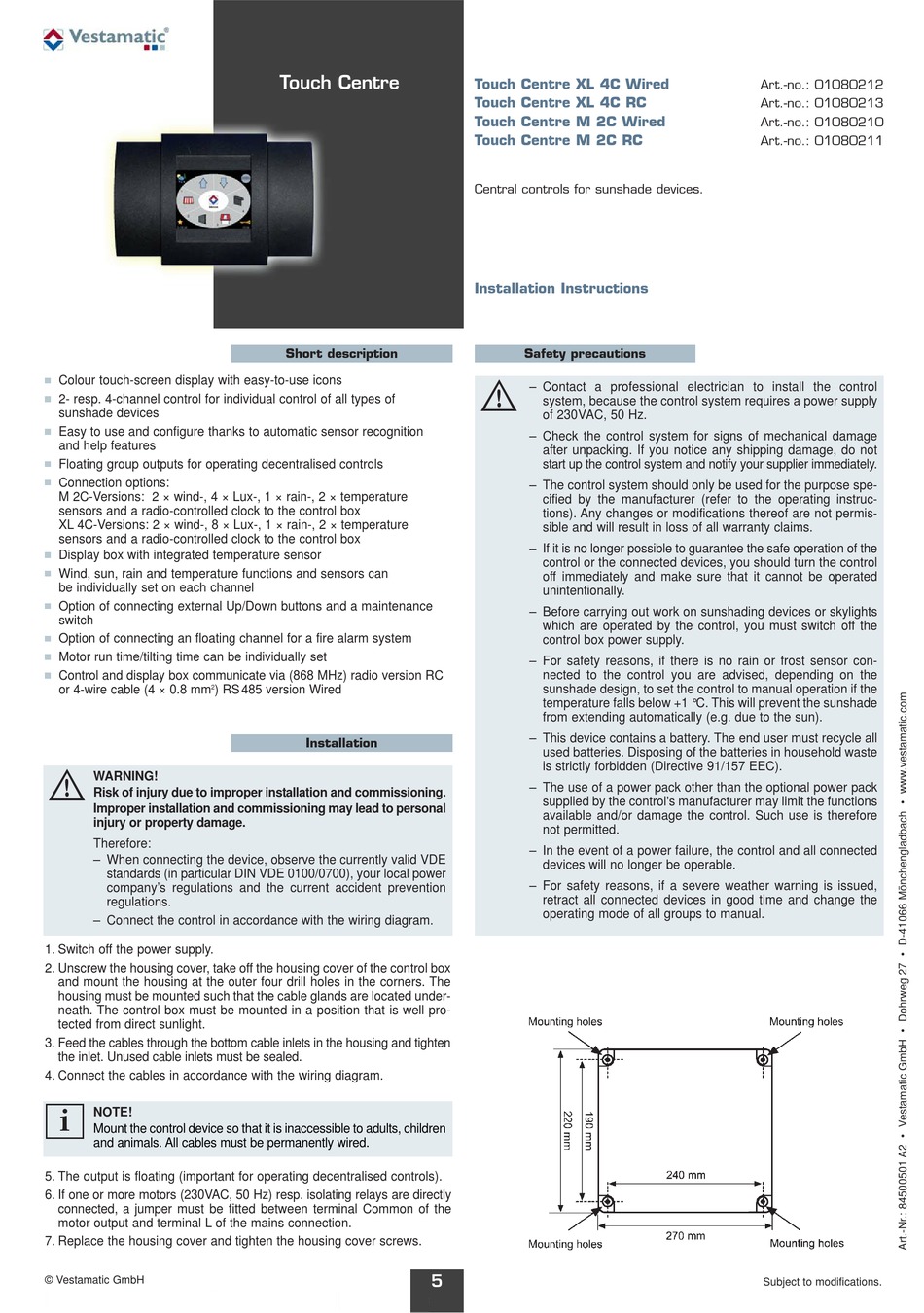

Touch Centre
Short description
Installation
5
Touch Centre XL 4C Wired
Touch Centre XL 4C RC
Touch Centre M 2C Wired
Touch Centre M 2C RC
Central controls for sunshade devices.
Installation Instructions
Safety precautions
– Contact a professional electrician to install the control
Ä
system, because the control system requires a power supply
of 230VAC, 50 Hz.
– Check the control system for signs of mechanical damage
after unpacking. If you notice any shipping damage, do not
start up the control system and notify your supplier immediately.
– The control system should only be used for the purpose spe-
cified by the manufacturer (refer to the operating instruc-
tions). Any changes or modifications thereof are not permis-
sible and will result in loss of all warranty claims.
– If it is no longer possible to guarantee the safe operation of the
control or the connected devices, you should turn the control
off immediately and make sure that it cannot be operated
unintentionally.
– Before carrying out work on sunshading devices or skylights
which are operated by the control, you must switch off the
control box power supply.
– For safety reasons, if there is no rain or frost sensor con-
nected to the control you are advised, depending on the
sunshade design, to set the control to manual operation if the
temperature falls below +1 °C. This will prevent the sunshade
from extending automatically (e.g. due to the sun).
– This device contains a battery. The end user must recycle all
used batteries. Disposing of the batteries in household waste
is strictly forbidden (Directive 91/157 EEC).
– The use of a power pack other than the optional power pack
supplied by the control's manufacturer may limit the functions
available and/or damage the control. Such use is therefore
not permitted.
– In the event of a power failure, the control and all connected
devices will no longer be operable.
– For safety reasons, if a severe weather warning is issued,
retract all connected devices in good time and change the
operating mode of all groups to manual.
Art.-no.: 01080212
Art.-no.: 01080213
Art.-no.: 01080210
Art.-no.: 01080211
Subject to modifications.
