Vestamatic Touch Centre XL 4C Wired Montageanleitung Seite 7

i
NOTE!
No connection possible for lux sensors 5 to 8 for versions M 2C
Wired and RC.
i
NOTE!
No connection possible for button of external operation 3 and 4
for versions M 2C Wired and RC.
© by Vestamatic GmbH

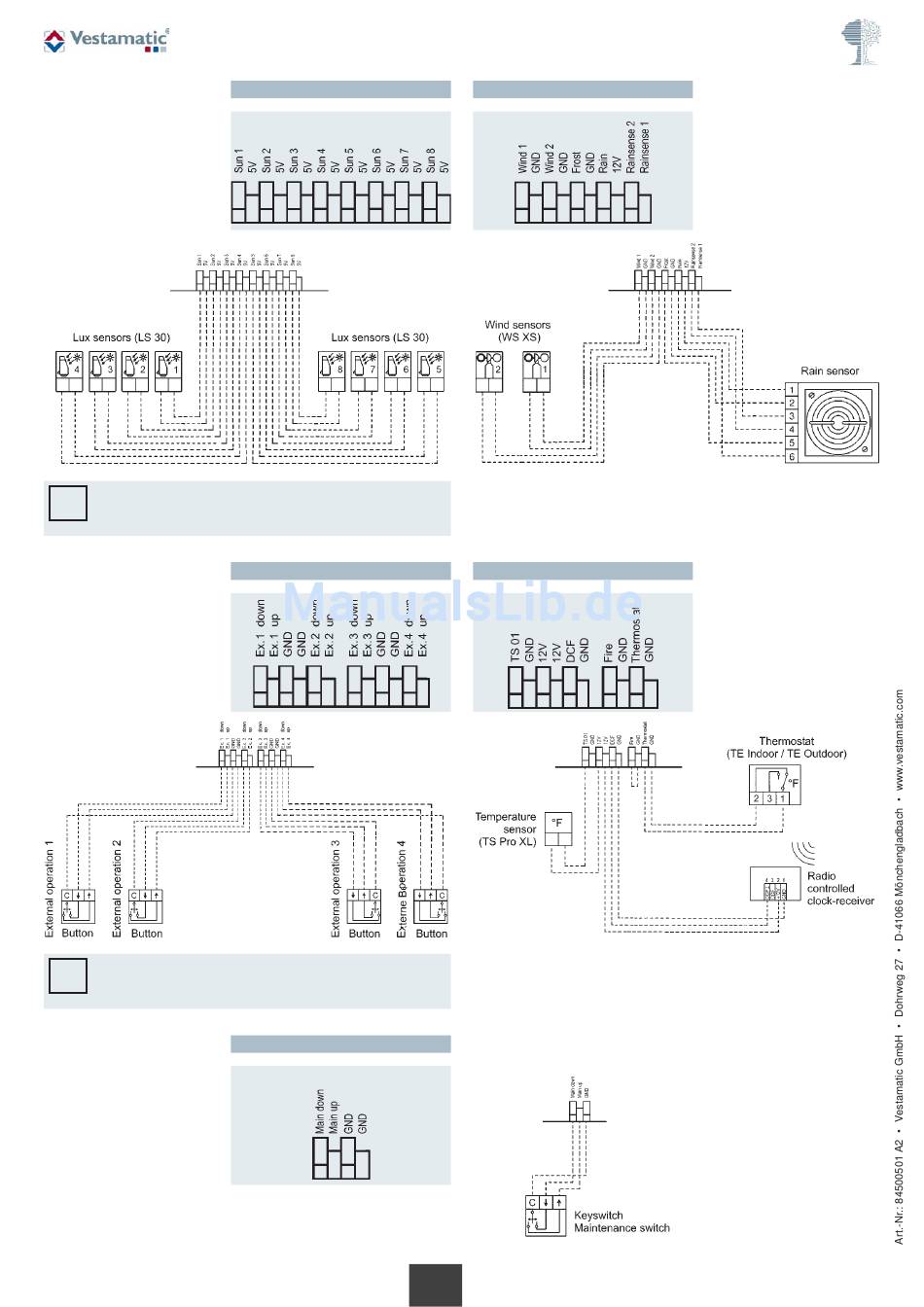

Lux sensors connection
External buttons connection
Maintenance connection
Wind/rain sensor connection
Temp. sensors/radio-controlled clock connection
7
Touch Centre
Subject to modifications.
