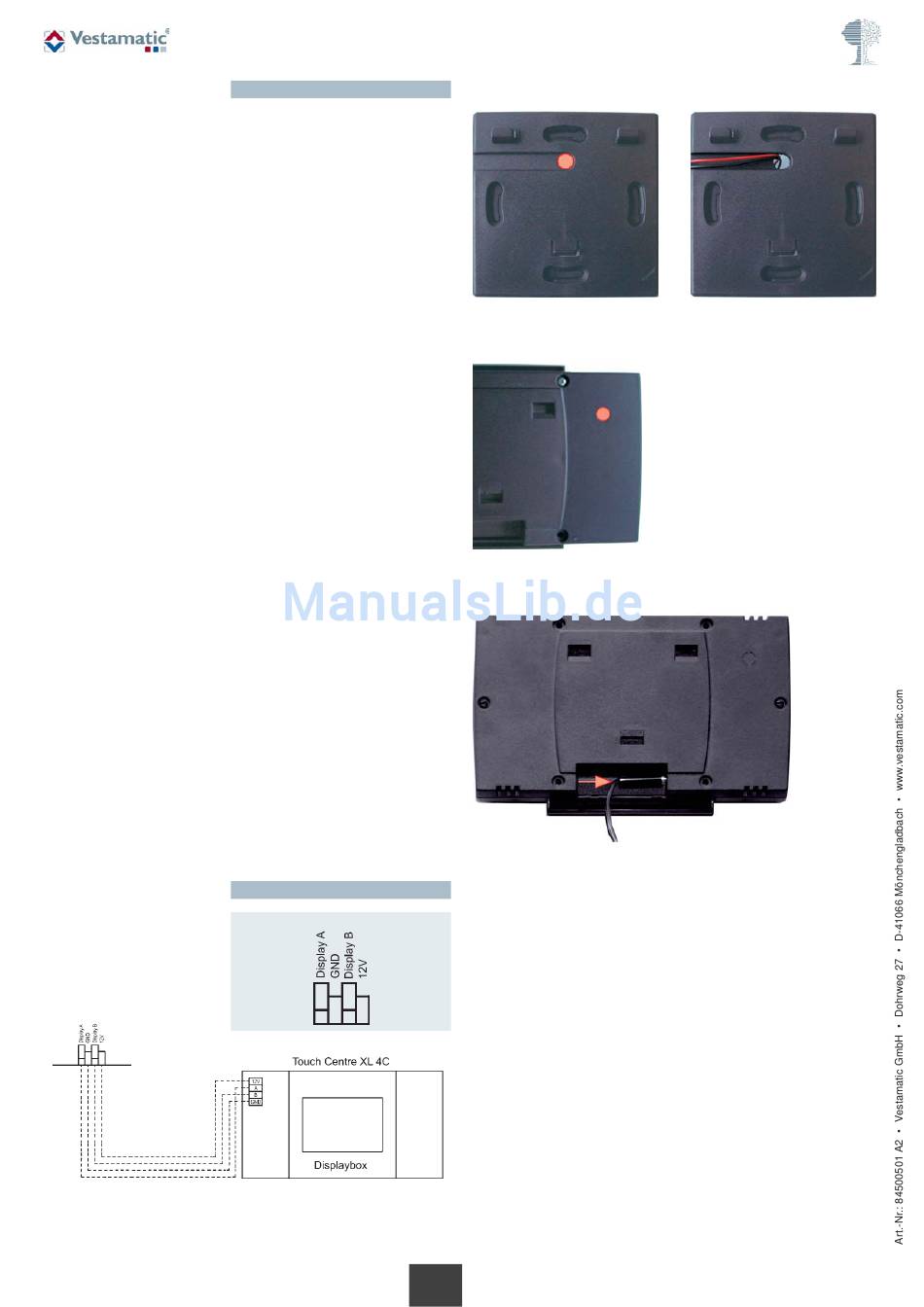

Handling of mounting plate for attachment of display box
(wired versions only)
Unplug the pre-punched cable gland in the mounting plate (see Figure 1,
red shaded area) using a screwdriver and feed the connecting wires of the
4-wire interface through it (see Figure 2). Then attach the mounting plate
accordingly.
Mounting plate for attachment of display box (RC versions only)
In the case of RC versions, handling of the mounting plate is not required.
The mounting plate should simply be installed in the corresponding position.
Connecting the display box (wired versions only)
– Remove the 6 screws on the back of the display box housing.
– Remove the rear of the housing.
– Using a screwdriver, unplug the pre-punched cable gland (see Figure 3,
red shaded area).
– Feed through the 4-wire interface cable and connect in accordance with
the wiring diagram (see below).
– Replace the rear of the housing and screw it down using the 6 screws.
– The display box can then be mounted in the mounting plate.
Connecting the display box (RC versions only)
– Connect the power-cube transformer supplied with the display box as
shown in Figure 4 by inserting the plug in the socket on the display box.
– The display box can then be mounted in the mounting plate.
