WARNING!
Ä
Radio transmission is not suitable for safety operations, such
as emergency-stop, emergency call or warning signals.
i
RADIO TRANSMISSION RELATED NOTES!
At versions Touch Centre XL 4C RC and Touch Centre M 2C RC,
the radio transmission range largely depends on the construc-
tional circumstances of the building. If other adjacent radio
devices are simultaneously sending signals, mutual interfer-
ences cannot be debared. Observing the following instructions
will minimize these interferences:
– Avoid to mount control box onto or adjacent to metal surfaces.
– Maintain minimum 50 cm clearance to consumer loads, such
as microwave ovens or TV sets.
– Keep a minimum clearance of 50 cm between each mounted
radio receiver and control box.
– Keep a minimum clearance of 50 cm between display box
and control box. If a radio-transmitted command cannot be
clearly detected, the command execution will be suppressed
by means of an integrated automatic safety function. The
command must then be issued again.
i
NOTE!
No terminals Mot. 3 up to Mot. 4 down for versions M 2C Wired and RC available.
© Vestamatic GmbH

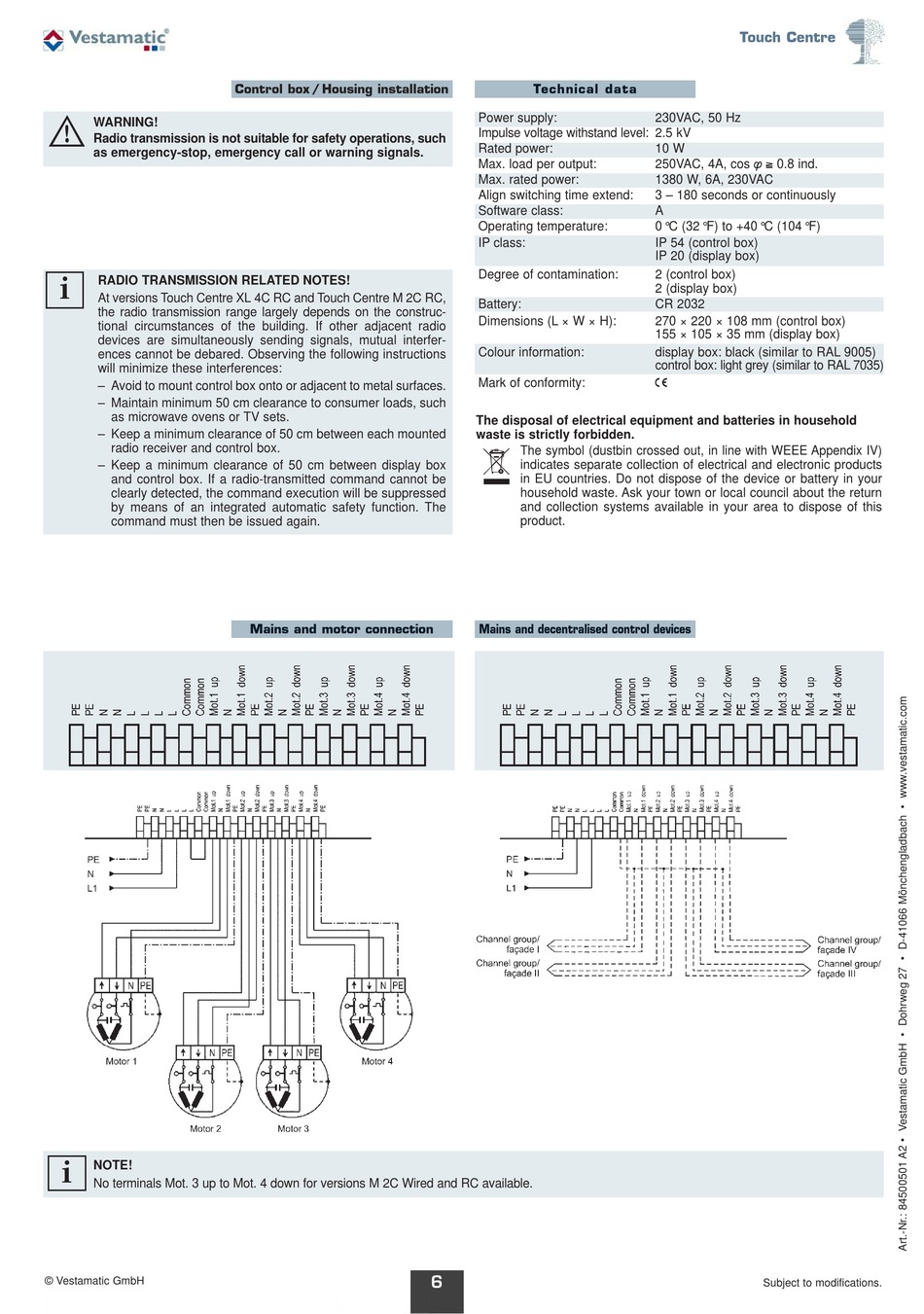

Control box / Housing installation
Mains and motor connection
Technical data
Power supply:
Impulse voltage withstand level: 2.5 kV
Rated power:
Max. load per output:
Max. rated power:
Align switching time extend:
Software class:
Operating temperature:
IP class:
Degree of contamination:
Battery:
Dimensions (L × W × H):
Colour information:
Mark of conformity:
The disposal of electrical equipment and batteries in household
waste is strictly forbidden.
The symbol (dustbin crossed out, in line with WEEE Appendix IV)
indicates separate collection of electrical and electronic products
É
in EU countries. Do not dispose of the device or battery in your
household waste. Ask your town or local council about the return
and collection systems available in your area to dispose of this
product.
Mains and decentralised control devices
6
Touch Centre
230VAC, 50 Hz
10 W
250VAC, 4A, cos f > 0.8 ind.
1380 W, 6A, 230VAC
3 – 180 seconds or continuously
A
0 °C (32 °F) to +40 °C (104 °F)
IP 54 (control box)
IP 20 (display box)
2 (control box)
2 (display box)
CR 2032
270 × 220 × 108 mm (control box)
155 × 105 × 35 mm (display box)
display box: black (similar to RAL 9005)
control box: light grey (similar to RAL 7035)
p
Subject to modifications.
