Notes for professional electricians
Important: parallel control of several roller shutter drive motors can
only be implemented by means of isolating relays or
group control devices.
The following versions of cover frame Jung "CD 500", alpine-white,
are available:
Combination frame one-fold,
Combination frame two-fold,
Combination frame three-fold,
Combination frame four-fold,
Combination frame five-fold,
For surface-type installation
please use our surface-type housing, article-no. 01400250
For controlling two drives, we recommend our isolating relays:
Isolating relays TR N2S,
Isolating relays TR N2A,
article-no. 01400201
article-no. 01400202
article-no. 01400203
article-no. 01400204
article-no. 01400205
article-no. 01054220
article-no. 01054120.
- 27 -

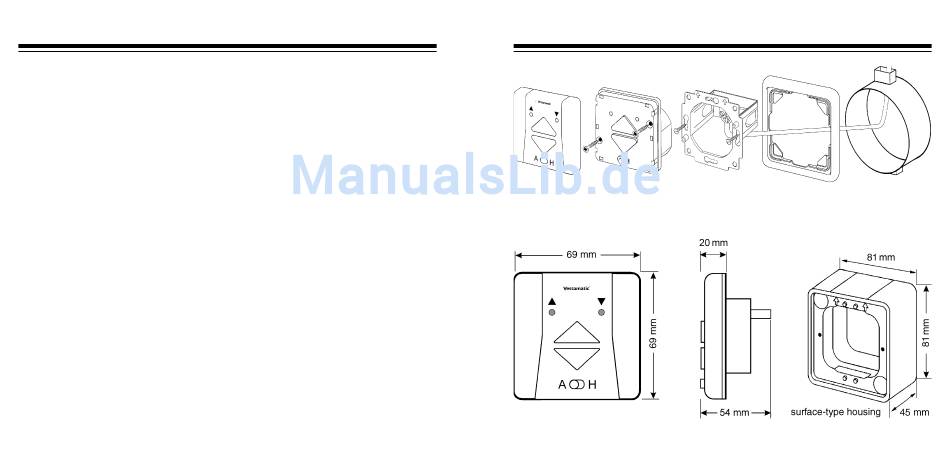

Installation instructions and measure diagrams

The delivered supporting frame must always be installed!
G G
