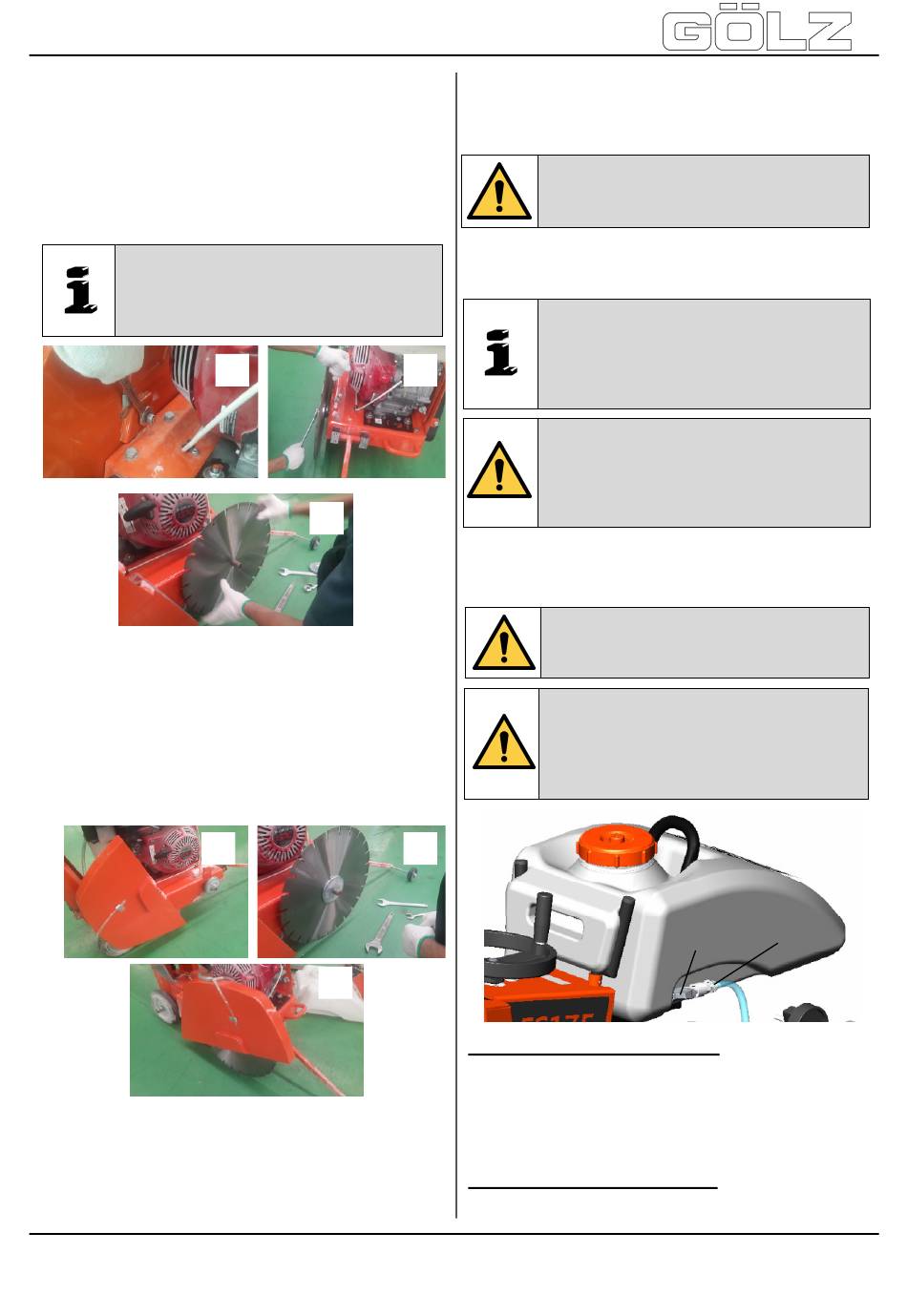

3.3.1 Mounting the blade

Blade mounting:
Mount the blade to the manufacturer's odds
•
(Observe the min. flange-Ø; use only original
screws or nuts).
Use only blade diameters which are allowed
•
by the manufacturer.
Information:
devices of the blade (flanges, thread
of the blade shaft, screws and nuts)
before mounting the blade!
To dismantle the blade:
Loose the screw on the back side of blade guard
•
with wrench SW17. (1)
Remove the blade guard and unscrew the left-
•
hand threaded locking nut and remove the outer
clamping flange SW30/SW32. (2-3)
All clamping surfaces must be clean and
•
undamaged.
To mount the blade:
Fit the cutting blade. Pay attention to the correct
•
direction of rotation. Observe the direction of
rotation arrows on the cutting blade and blade
guard. (1-2)
Mount the outer clamping flange again; (2)
•
Clean all fastening
1
3
1
3
Secure the blade and outer flange with fixing nut
•
SW30/SW32.
Fit the blade guard again and secure it with
•
screws.(3)
Danger: It is not allowed to operate the
machine without cutting disc blade
guard!
3.4

Water supply

Important: The operation is to be
carried out in wet cutting, in order to
prevent the occurrence of harmful
2
particulate matter and to increase the
lifetime of the cutting tool.
Attention:
designed for wet cutting technique,
must never be used without water
supply! Always make sure that there is
enough water supply!
The supply of water at the cut ensures that the tool is
cooled, the dust of the material is bound and the cut is
rinsed out.
Attention: Use only water for cutting
which is free from coarse impurities!
Do not use salt water!
Danger: Do not use the attached water
tank when cutting with wet cutting
diamond blades. The segments may
crack off and cause injuries to the
operator or bystanders!
2
Cutting with wet-cutting blades:
Connect the detachable water hose with an external
water supply. Check the ball valve (2) is closed (ball
valve lever in 90° -position to the water flow).
For cutting open the ball valve (2) (ball valve lever in
the water flow position).
Cutting with dry-cutting blades:
Fill the water tank with clean water. Check the ball
- 30-
Tools which are
1 2
