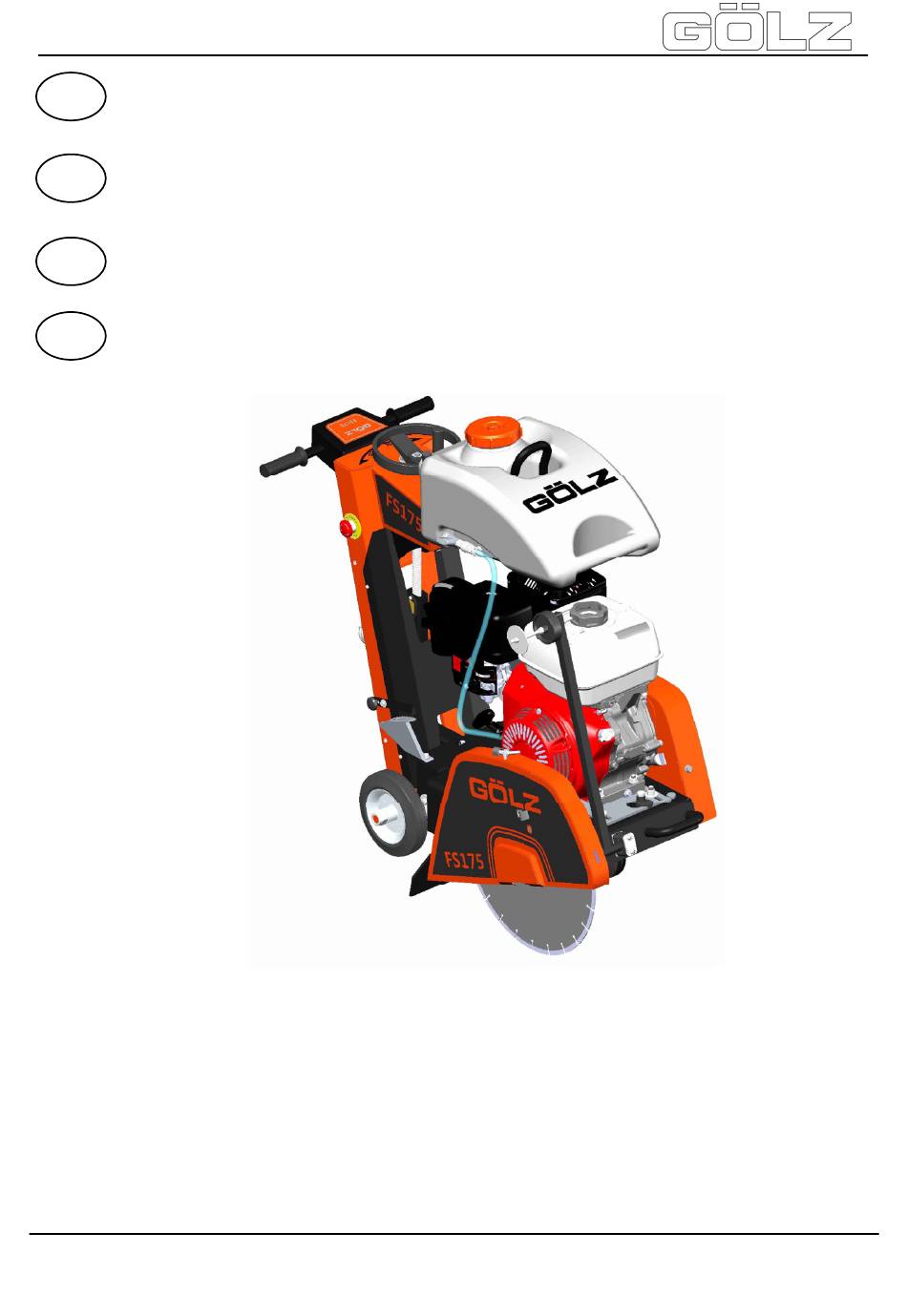

GÖLZ FS175 Original Bedienungsanleitung
Vorschau ausblenden Andere Handbücher für FS175:
Inhaltsverzeichnis

Werbung

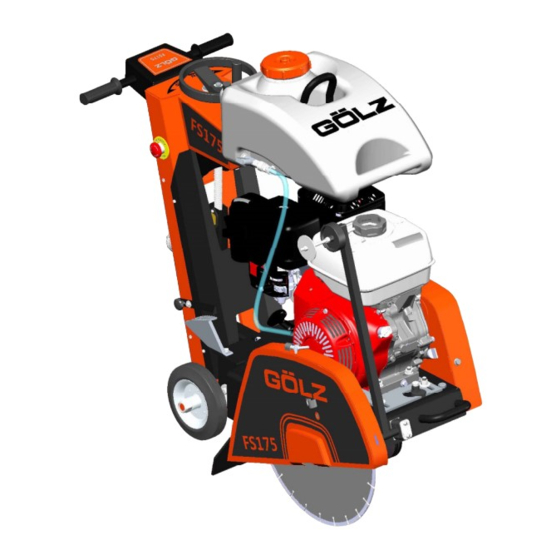

FS175
Original-Bedienungsanleitung und Ersatzteilliste
DE
Fugenschneider
Original operating instruction and spare parts list
GB
Floor saw
Originale du mode d'emploi et liste des pièces de rechange
FR
Scie de sol
Origineel Gebruiksaanwijzing en Reservedelenlijst
NL
Vloerenzaagmachine
ZN der Bedienungsanleitung:
Erstellt am:
Erstellt von:
Datei:
®
GÖLZ
GmbH
Dommersbach 51
D-53940 Hellenthal
Telefon: +49 (0) 2482 12 200 / Telefax: +49 (0) 2482 12 222
E-Mail: info@goelz.de / Internet: www.goelz.de
5007287-01
07 / 2016
Sabrina Linden
K:\KDV\5007xxx\5007287-Bedienungsanleitung\
5007287-01-Bedienungsanleitung-DE-GB-FR-NL.doc
- 1-
®
5007287-01
BA-DE-GB-FR-NL
