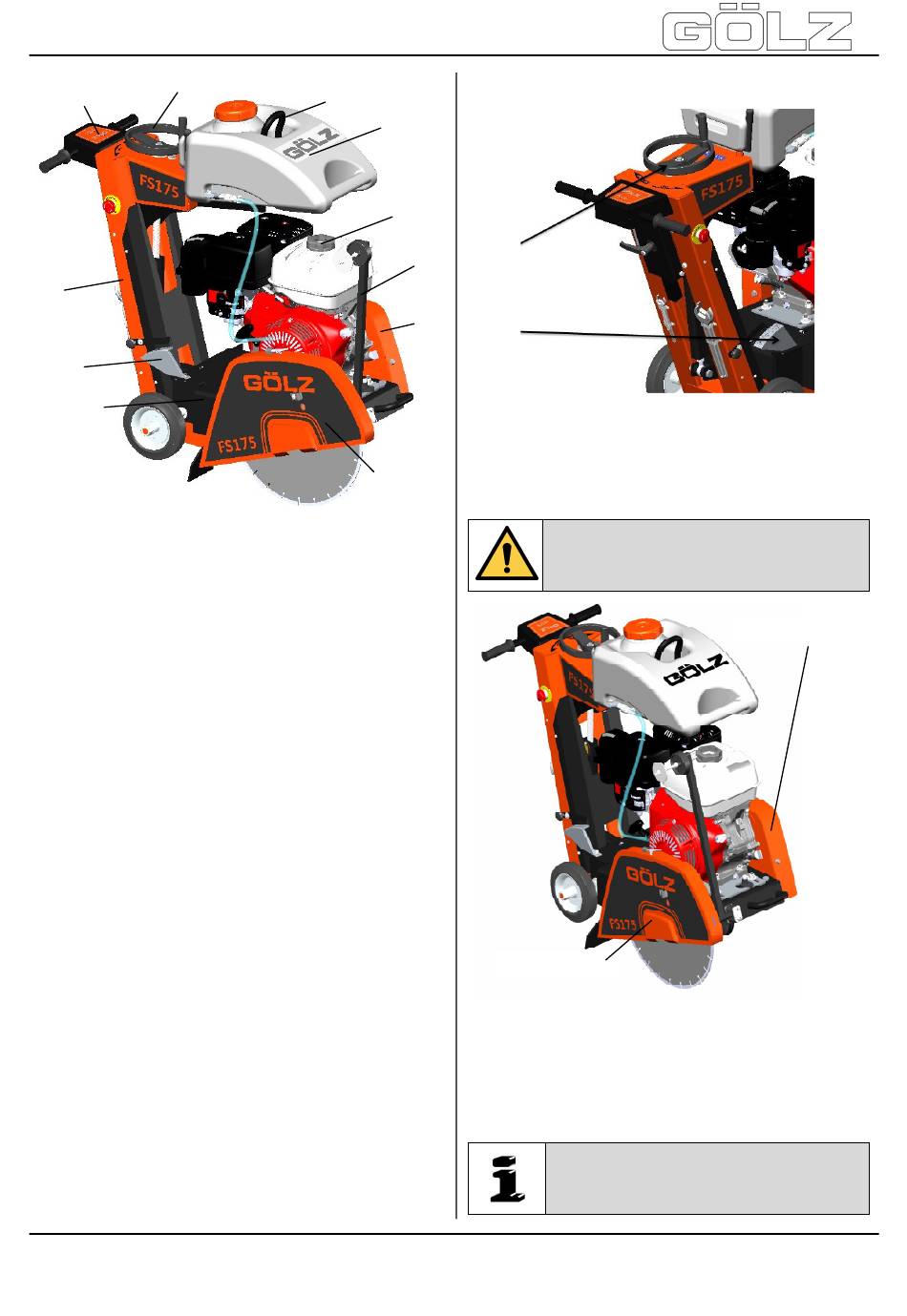

The base frame (1+2) is the basis for the floor saw. All
other components are built on the base frame.
By means of the convenient cutting depth setting (3),
the operator can read, at any time, the cutting depth.
The rib drive is protected by a poly-V belt guard (4).
Thus, the risk of injury is reduced by the rib drive.
Furthermore, the rib drive is also protected from
impurity during the cutting process.
The blade guard (5) provides the operator and the
persons in his working area with optimum protection
during the cutting process.
The floor saw FS 175 is equipped with a petrol engine
of Honda (6). For any other information, please refer to
the attached operating
manufacturer.
In order to allow dust formation during cutting
respectively cooling of the cutter blade, the floor saw is
equipped with a pluggable water tank (7).There is also
the possibility to cool directly by means of the water
supply network respectively to bind the dust.
The digging of the blade is using by a hand wheel (8)
which is connected with a trapezoidal spindle.
The route indicator (9) allows precise cuts.
Thanks to the direction indicator the operator can
monitor and respect the cutting direction.
With suitable lifting gear can be the floor saw on the
attached lifting eye (10) lifted to facilitate transport.
The height adjustable push bar (11) allows a non-
fatiguing working.
10
7
6
9
5
manual of the engine
1.5

Operating elements

1
4
2
1. Hand wheel - raising and lowering
2. Depth control
1.6

Safety devices

Danger: During cutting or displacing
the machine, all safety devices shown
below must be mounted!
Blade guard
2.

Basic safety instructions

In this manual the following terms and symbols are
used for particular important information:
Note / Important: Contains important
information which stands out from the
other text!
