2. Multimeter in Brief

Front panel

Rotary switch
Position Description
Power off
DC or AC voltage measurement
DC or AC voltage measurement (up to 600 millivolts)
Continuity test
RDM 9001
1
2
3
4

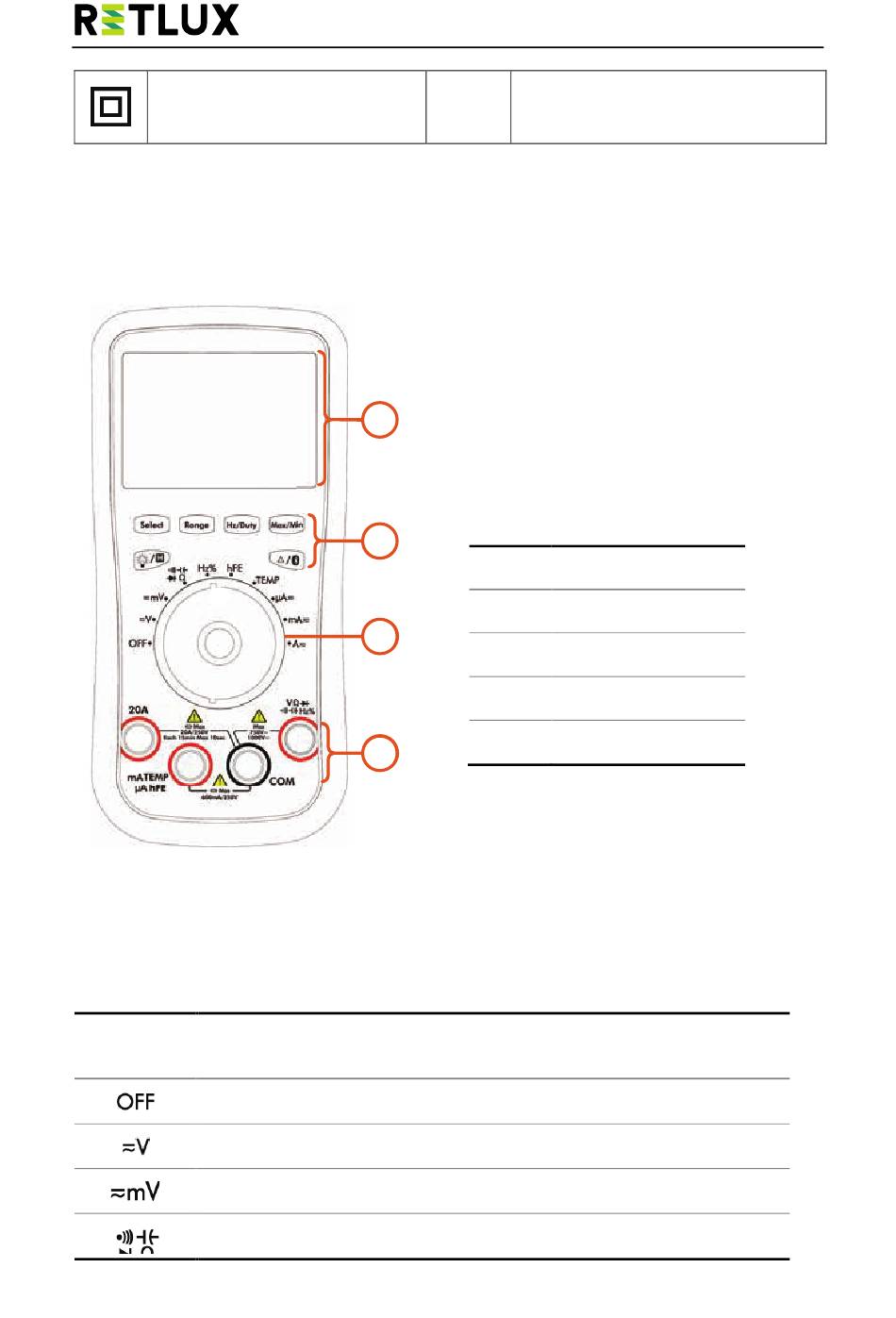

Figure 2-1 Front panel overview
4
No. Description
Display screen
①
Keypad
②
Rotary switch
③
Input terminals
④
