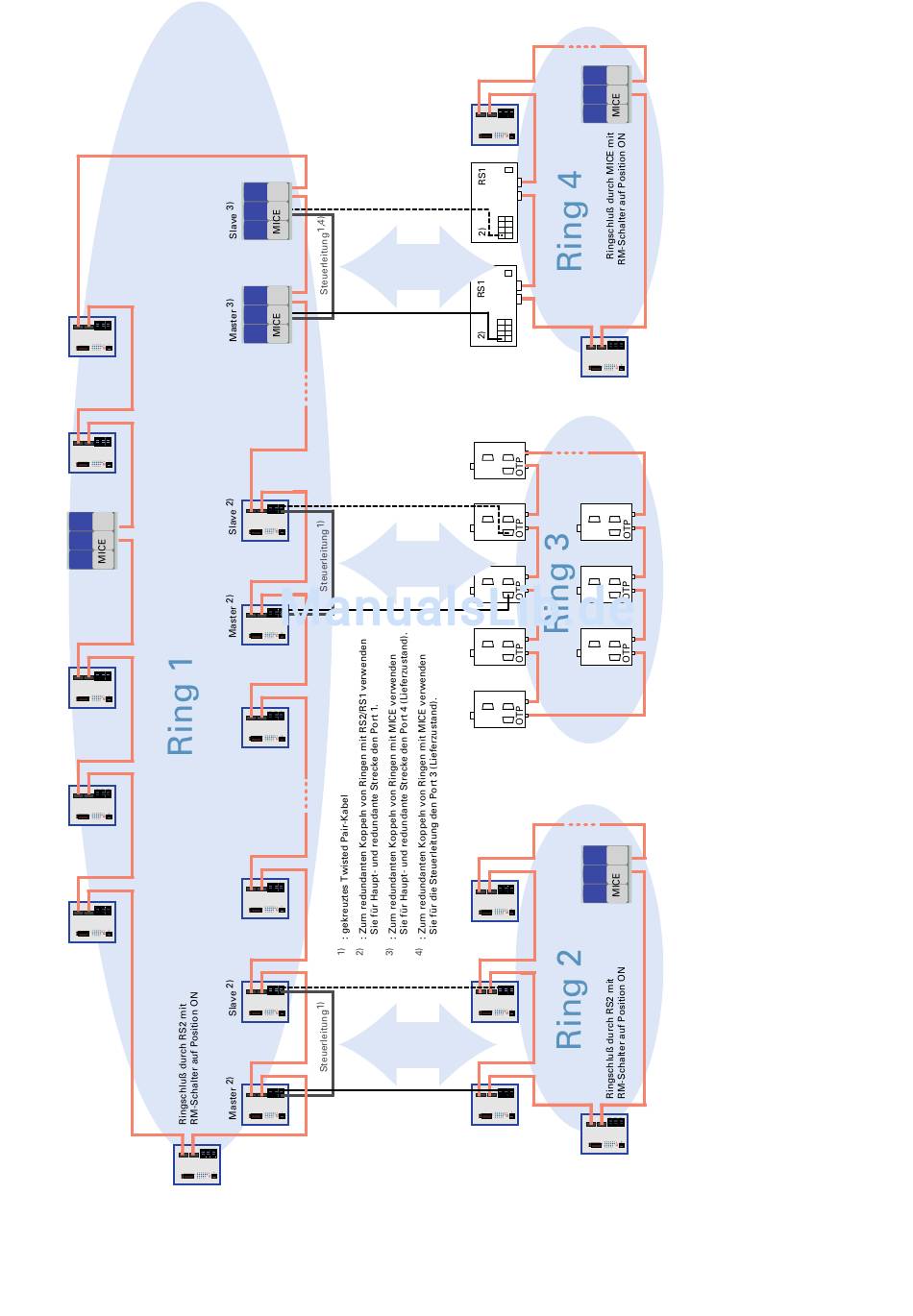

Abb. 10: Redundante Kopplung von Ringen
Redundante Strecke
Redundante Kopplung
von Ring 1 und Ring 4
Hauptstrecke
Redundante Strecke
Redundante Kopplung
von Ring 1 und Ring 3
Hauptstrecke
Redundante Strecke
Redundante Kopplung
von Ring 1 und Ring 2
Hauptstrecke
