Disassembly

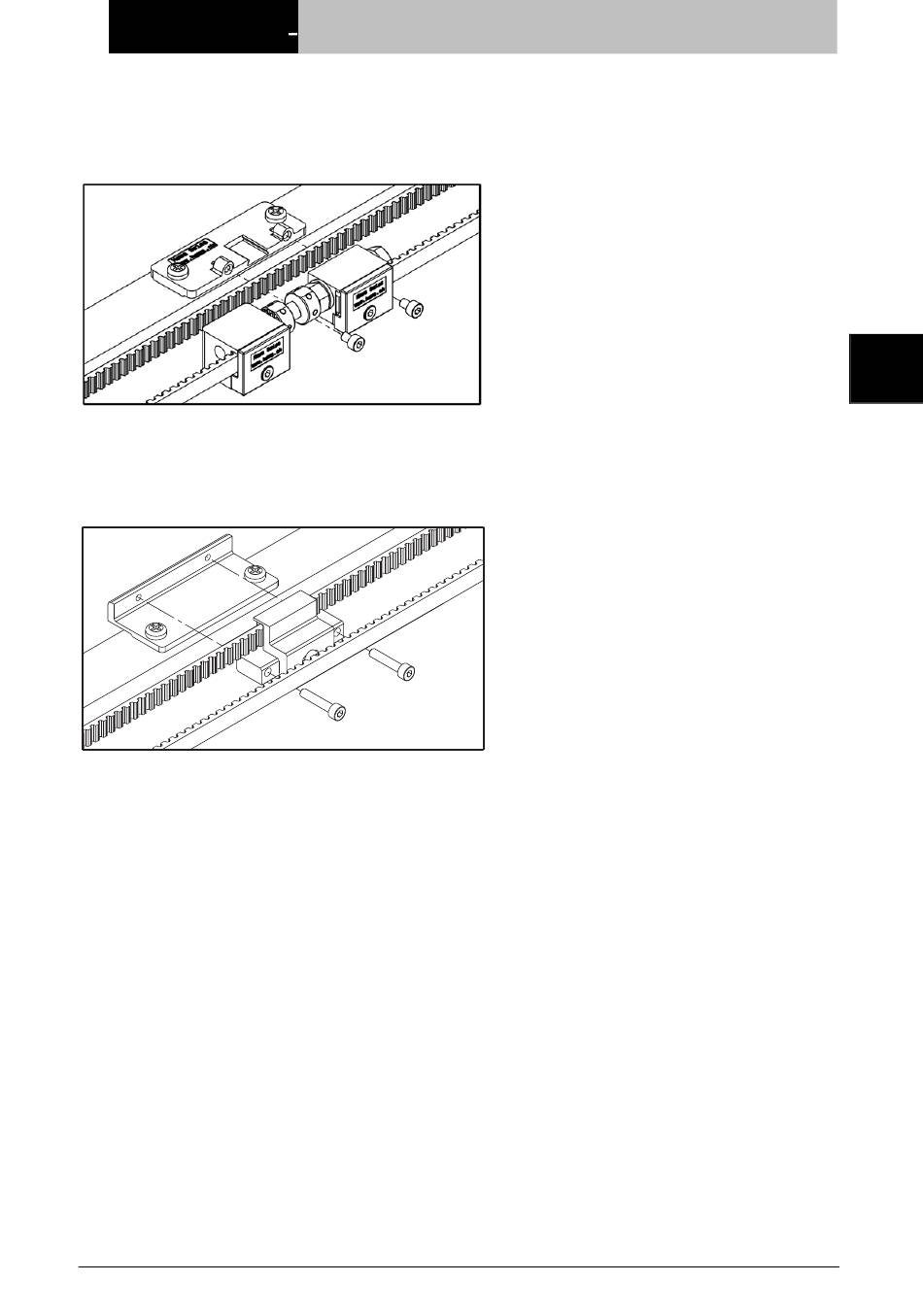

The top part can be detached from the bottom toothed belt tensioner by loosening a pair of bolts. The shutter
can then be removed and replaced without loosening the toothed belt or removing the drive unit.
Disassembling the HAWA-Frontslide 60/matic (Symmetric)
The top part can be detached from the bottom driver by removing a pair of bolts. The shutter can then be
removed and replaced without loosening the toothed belt or removing the drive unit.
