Planning

System description

Technical specifications
Max. weight:
Shutter thickness:
Min. shutter width:
Min. shutter width (Symmetric):
Max. shutter width:
Max. installation width:
Length of toothed belt:
Supply voltage:
Max. current consumption:
Mains electrical isolation:
CE tested:

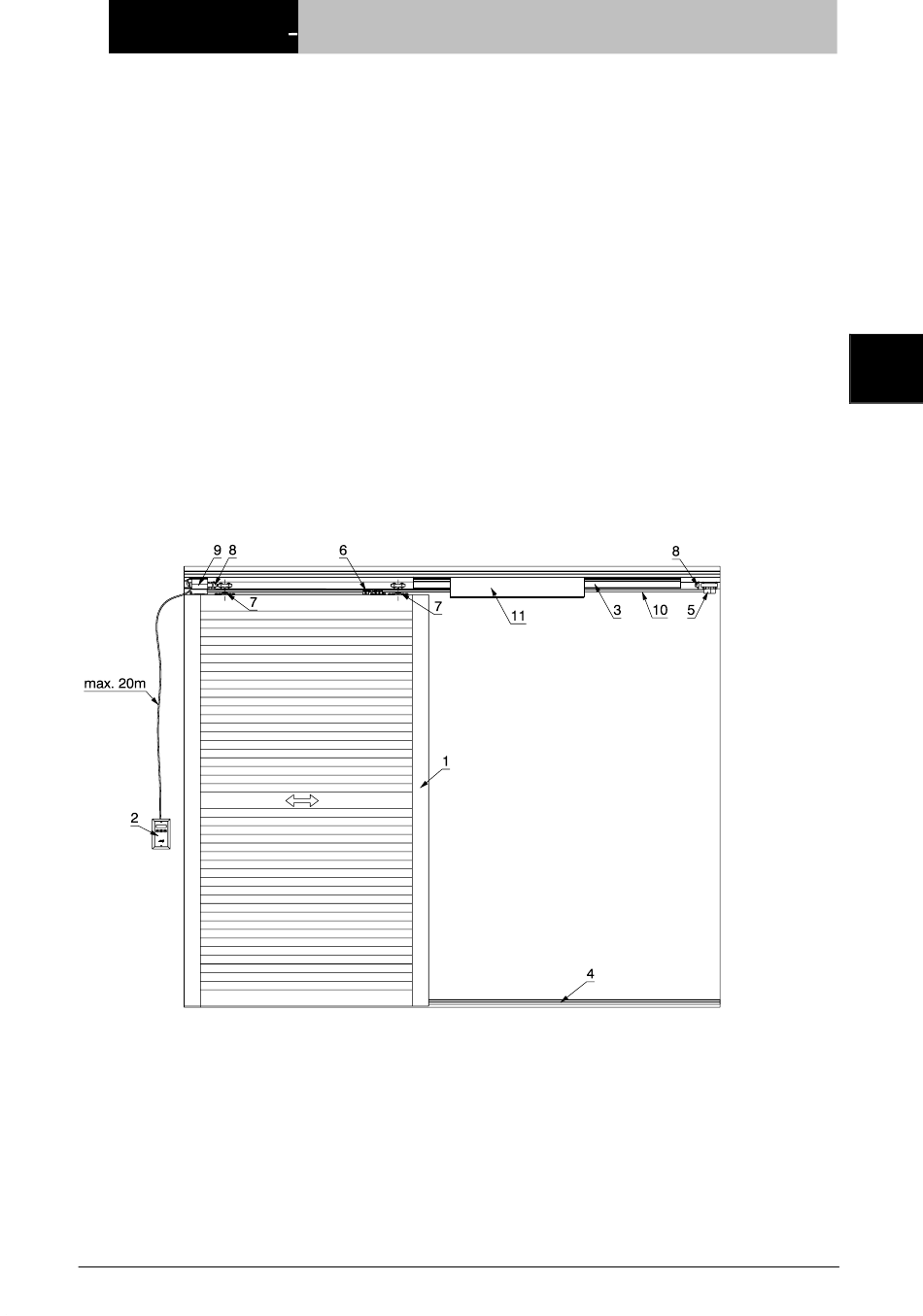

Key: 1 = Sliding shutter
2 = Control panel
3 = Top track
4 = Bottom guide
5 = Guide pulley
6 = Toothed belt attachment
Wherever possible, the drive unit should be positioned for maximum accessibility after installation.
Subject to modification
Hawa AG CH-8932 Mettmenstetten www.hawa.ch Tel. +41-1-767 91 91 Fax +41-1-767 91 78
– Frontslide 60/matic
60 kg per sliding shutter
28 – 40 mm
600 mm
550 mm
2,500 mm
7,500 mm
2x installation width
100 – 240 VAC, 50 – 60 Hz
0.2 A (240 VAC) – 0.4 A (100 VAC)
provided by customer
yes
10 = Toothed belt
11 = Cover plate
7 = Trolleys and suspensions
8 = Adjustable end stop
9 = Drive unit
